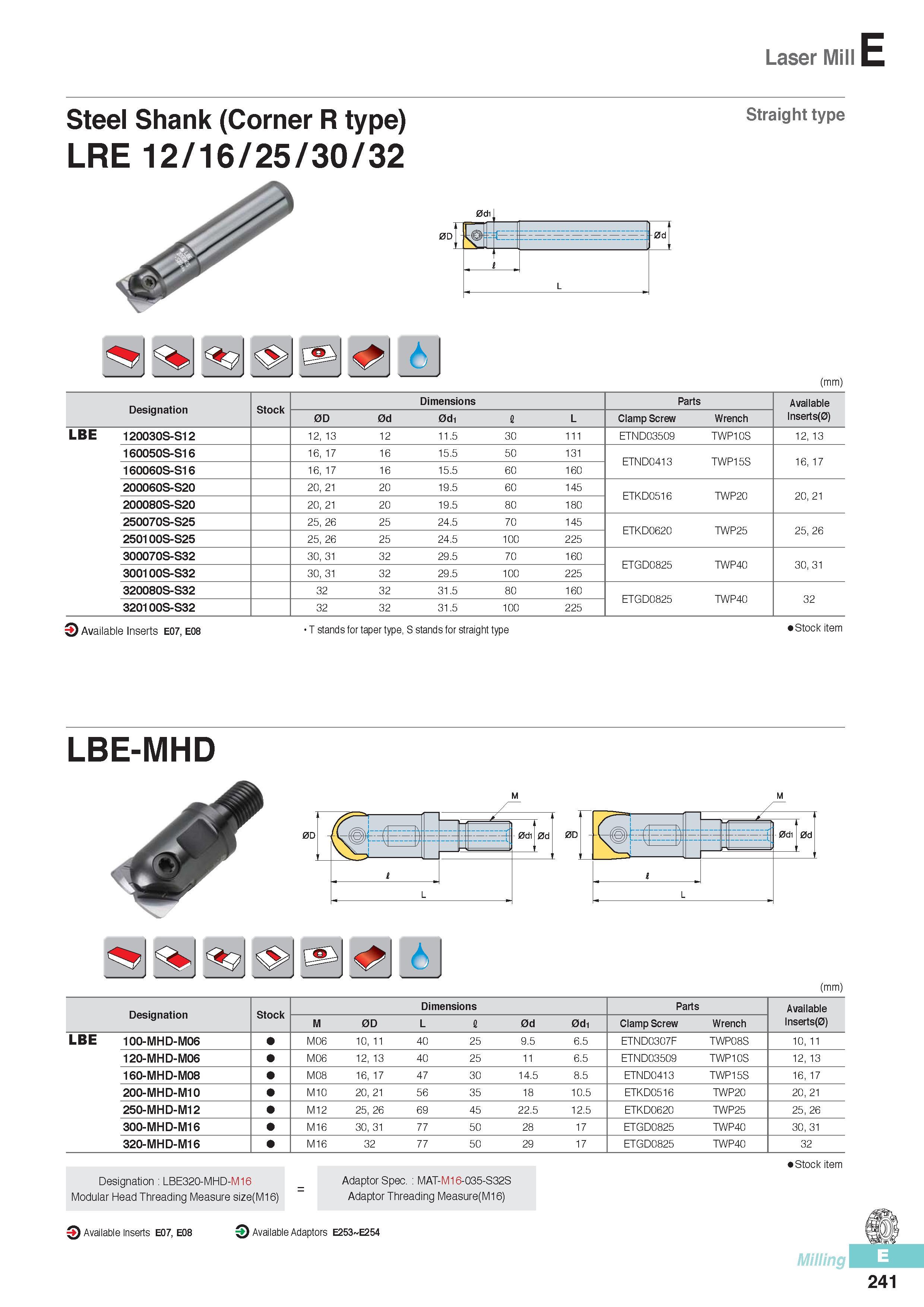

Laser Mill Steel Shank (Corner R type) LRE 12/16/25/30/32 Straight type (mm) Designation Stock Dimensions Parts Available 0D 0d 0d1 I L Clamp Screw Wrench Inserts(0) LBE 120030S-S12 12, 13 12 11.5 30 111 ETND03509 TWP10S 12, 13 160050S-S16 16, 17 16 15.5 50 131 ETND0413 TWP15S 16, 17 160060S-S16 16, 17 16 15.5 60 160 200060S-S20 20, 21 20 19.5 60 145 ETKD0516 TWP20 20, 21 200080S-S20 20, 21 20 19.5 80 180 250070S-S25 25, 26 25 24.5 70 145 ETKD0620 TWP25 25, 26 250100S-S25 25, 26 25 24.5 100 225 300070S-S32 30, 31 32 29.5 70 160 ETGD0825 TWP40 30, 31 300100S-S32 30, 31 32 29.5 100 225 320080S-S32 32 32 31.5 80 160 ETGD0825 TWP40 32 320100S-S32 32 32 31.5 100 225 Available Inserts E07, E08 T stands tor taper type, S stands tor straight type Stock item LBE-MHD & 6 (mm) Designation Stock Dimensions Parts Available Inserts(0) M 0D L I 0d 0d1 Clamp Screw Wrench LBE 100-MHD-M06 M06 10, 11 40 25 9.5 6.5 ETND0307F TWP08S 10, 11 120-MHD-M06 M06 12, 13 40 25 11 6.5 ETND03509 TWP10S 12, 13 160-MHD-M08 M08 16, 17 47 30 14.5 8.5 ETND0413 TWP15S 16, 17 200-MHD-M10 M10 20, 21 56 35 18 10.5 ETKD0516 TWP20 20, 21 250-MHD-M12 M12 25, 26 69 45 22.5 12.5 ETKD0620 TWP25 25, 26 300-MHD-M16 M16 30, 31 77 50 28 17 ETGD0825 TWP40 30, 31 320-MHD-M16 M16 32 77 50 29 17 ETGD0825 TWP40 32 Designation LBE320-MHD-M16 Modular Head Threading Measure size(M16) AdaptorSpec. MAT-M16-035-S32S Adaptor Threading Measure(M16) Available Inserts E07, E08 O Available Adaptors E253 E254 Stock item Milling 241
