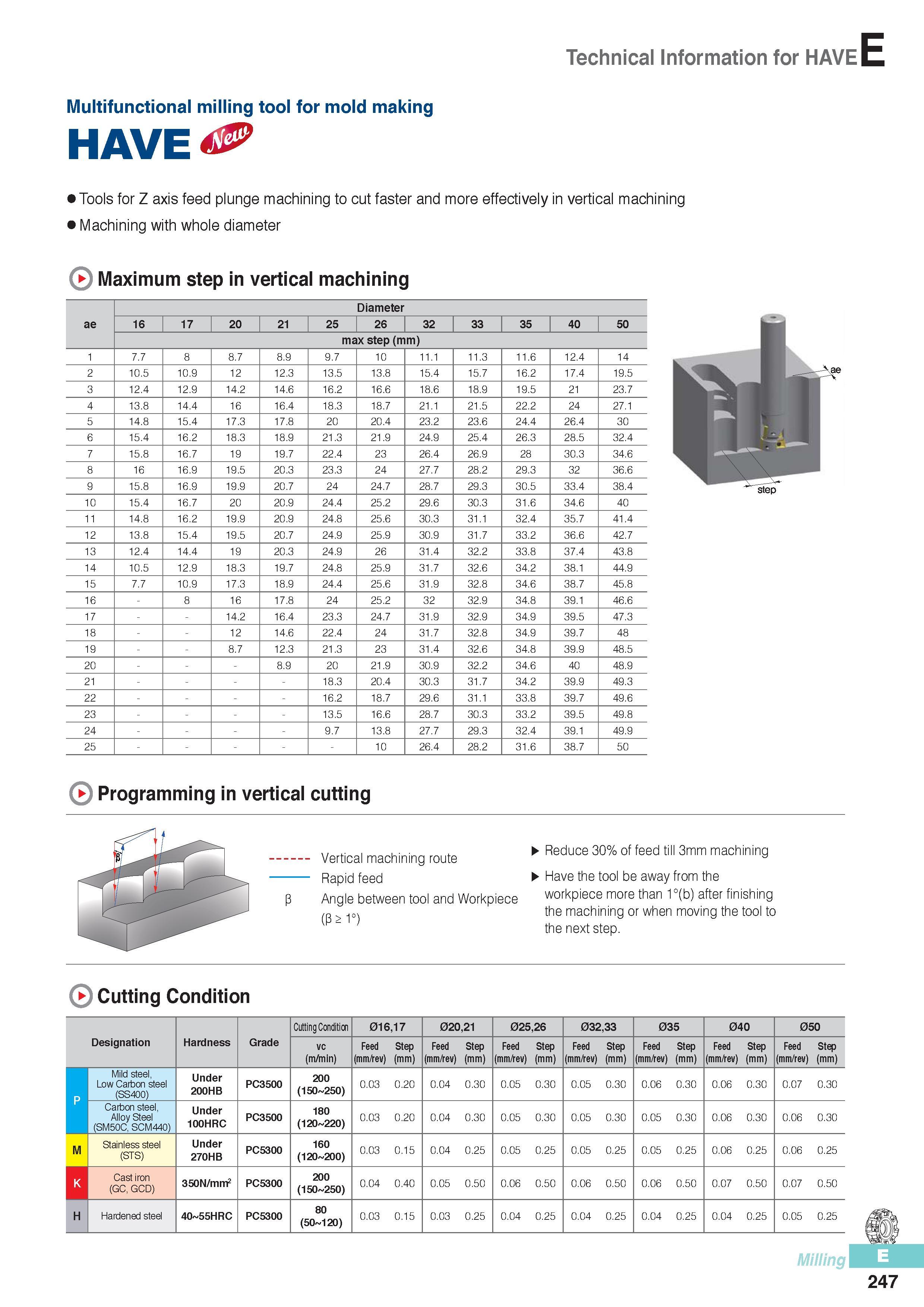

Technical Information for HAVE Multifunctional milling tool for mold making have Tools for Z axis feed plunge machining to cut faster and more effectively in vertical machining Machining with whole diameter Maximum step in vertical machining 16 Diameter 17 20 21 25 26 32 33 35 max step (mm) 40 50 7.7 8 8.7 8.9 9.7 10 11.1 11.3 11.6 12.4 14 2 10.5 10.9 12 12.3 13.5 13.8 15.4 15.7 16.2 17.4 19.5 3 12.4 12.9 14.2 14.6 16.2 16.6 18.6 18.9 19.5 21 23.7 4 13.8 14.4 16 16.4 18.3 18.7 21.1 21.5 22.2 24 27.1 5 14.8 15.4 17.3 17.8 20 20.4 23.2 23.6 24.4 26.4 30 6 15.4 16.2 18.3 18.9 21.3 21.9 24.9 25.4 26.3 28.5 32.4 7 15.8 16.7 19 19.7 22.4 23 26.4 26.9 28 30.3 34.6 8 16 16.9 19.5 20.3 23.3 24 27.7 28.2 29.3 32 36.6 9 15.8 16.9 19.9 20.7 24 24.7 28.7 29.3 30.5 33.4 38.4 10 15.4 16.7 20 20.9 24.4 25.2 29.6 30.3 31.6 34.6 40 11 14.8 16.2 19.9 20.9 24.8 25.6 30.3 31.1 32.4 35.7 41.4 12 13.8 15.4 19.5 20.7 24.9 25.9 30.9 31.7 33.2 36.6 42.7 13 12.4 14.4 19 20.3 24.9 26 31.4 32.2 33.8 37.4 43.8 14 10.5 12.9 18.3 19.7 24.8 25.9 31.7 32.6 34.2 38.1 44.9 15 7.7 10.9 17.3 18.9 24.4 25.6 31.9 32.8 34.6 38.7 45.8 16 8 16 17.8 24 25.2 32 32.9 34.8 39.1 46.6 17 14.2 16.4 23.3 24.7 31.9 32.9 34.9 39.5 47.3 18 12 14.6 22.4 24 31.7 32.8 34.9 39.7 48 19 8.7 12.3 21.3 23 31.4 32.6 34.8 39.9 48.5 20 8.9 20 21.9 30.9 32.2 34.6 40 48.9 21 18.3 20.4 30.3 31.7 34.2 39.9 49.3 22 16.2 18.7 29.6 31.1 33.8 39.7 49.6 23 13.5 16.6 28.7 30.3 33.2 39.5 49.8 24 9.7 13.8 27.7 29.3 32.4 39.1 49.9 25 10 26.4 28.2 31.6 38.7 50 step ae Programming in vertical cutting Vertical machining route Rapid feed Angle between tool and Workpiece (P 1°) Reduce 30% of feed till 3mm machining Have the tool be away from the workpiece more than 1°(b) after finishing the machining or when moving the tool to the next step. Cutting Condition Cutting Condition 016,17 020,21 025,26 032,33 035 040 050 Designation Hardness Grade vc (m/min) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) Feed (mm/rev) Step (mm) p P Mild steel, Low Carbon steel (SS400) Under 200HB PC3500 200 (150 250) 0.03 0.20 0.04 0.30 0.05 0.30 0.05 0.30 0.06 0.30 0.06 0.30 0.07 0.30 Carbon steel, Alloy Steel (SM50C, SCM440) Under 100HRC PC3500 180 (120 220) 0.03 0.20 0.04 0.30 0.05 0.30 0.05 0.30 0.05 0.30 0.06 0.30 0.06 0.30 M Stainless steel (STS) Under 270HB PC5300 160 (120 200) 0.03 0.15 0.04 0.25 0.05 0.25 0.05 0.25 0.05 0.25 0.06 0.25 0.06 0.25 K Cast iron (GC, GCD) 350N/mm2 PC5300 200 (150 250) 0.04 0.40 0.05 0.50 0.06 0.50 0.06 0.50 0.06 0.50 0.07 0.50 0.07 0.50 H Hardened steel 40 55HRC PC5300 80 (50 120) 0.03 0.15 0.03 0.25 0.04 0.25 0.04 0.25 0.04 0.25 0.04 0.25 0.05 0.25 Milling 247
