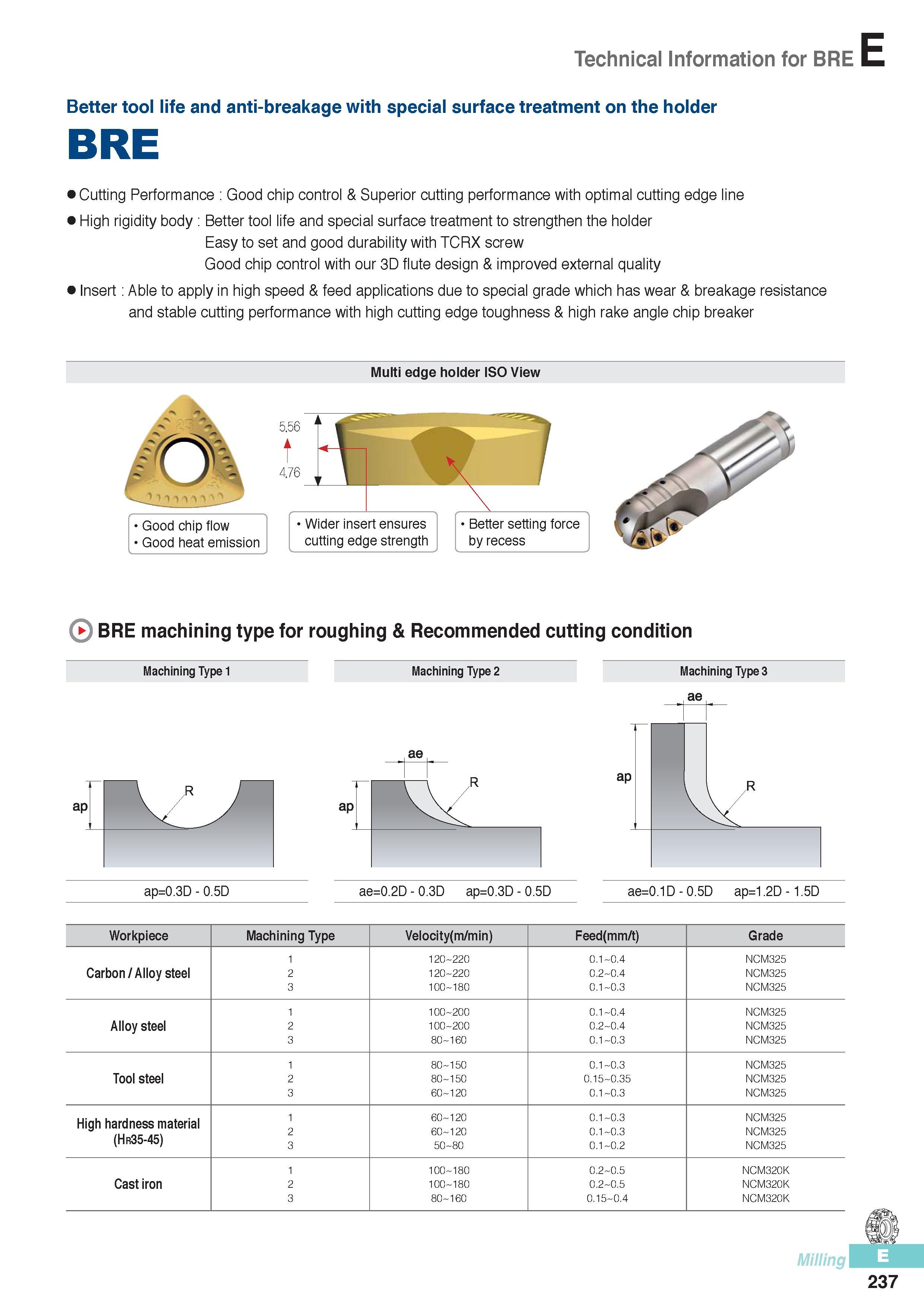

Technical Information for BRE Better tool life and anti-breakage with special surface treatment on the holder BRE Cutting Performance Good chip control & Superior cutting performance with optimal cutting edge line High rigidity body Better tool life and special surface treatment to strengthen the holder Easy to set and good durability with TCRX screw Good chip control with our 3D flute design & improved external quality Insert: Able to apply in high speed & feed applications due to special grade which has wear & breakage resistance and stable cutting performance with high cutting edge toughness & high rake angle chip breaker Multi edge holder ISO View Good chip flow Good heat emission 5.56 t 4.76 BRE machining type for roughing & Recommended cutting condition Machining Type 1 Machining Type 2 Machining Type 3 Workpiece Machining Type Velocity(m/min) Feed(mm/t) Grade Carbon / Alloy steel 1 2 3 120 220 120 220 100 180 0.1 0.4 0.2 0.4 0.1 0.3 NCM325 NCM325 NCM325 Alloy steel 1 2 3 100 200 100 200 80 160 0.1 0.4 0.2 0.4 0.1 0.3 NCM325 NCM325 NCM325 Tool steel 1 2 3 80 150 80 150 60 120 0.1 0.3 0.15 0.35 0.1 0.3 NCM325 NCM325 NCM325 High hardness material (Hr35-45) 1 2 3 60 120 60 120 50 80 0.1 0.3 0.1 0.3 0.1 0.2 NCM325 NCM325 NCM325 Cast iron 1 2 3 100 180 100 180 80 160 0.2 0.5 0.2 0.5 0.15i0.4 NCM320K NCM320K NCM320K Milling 237
