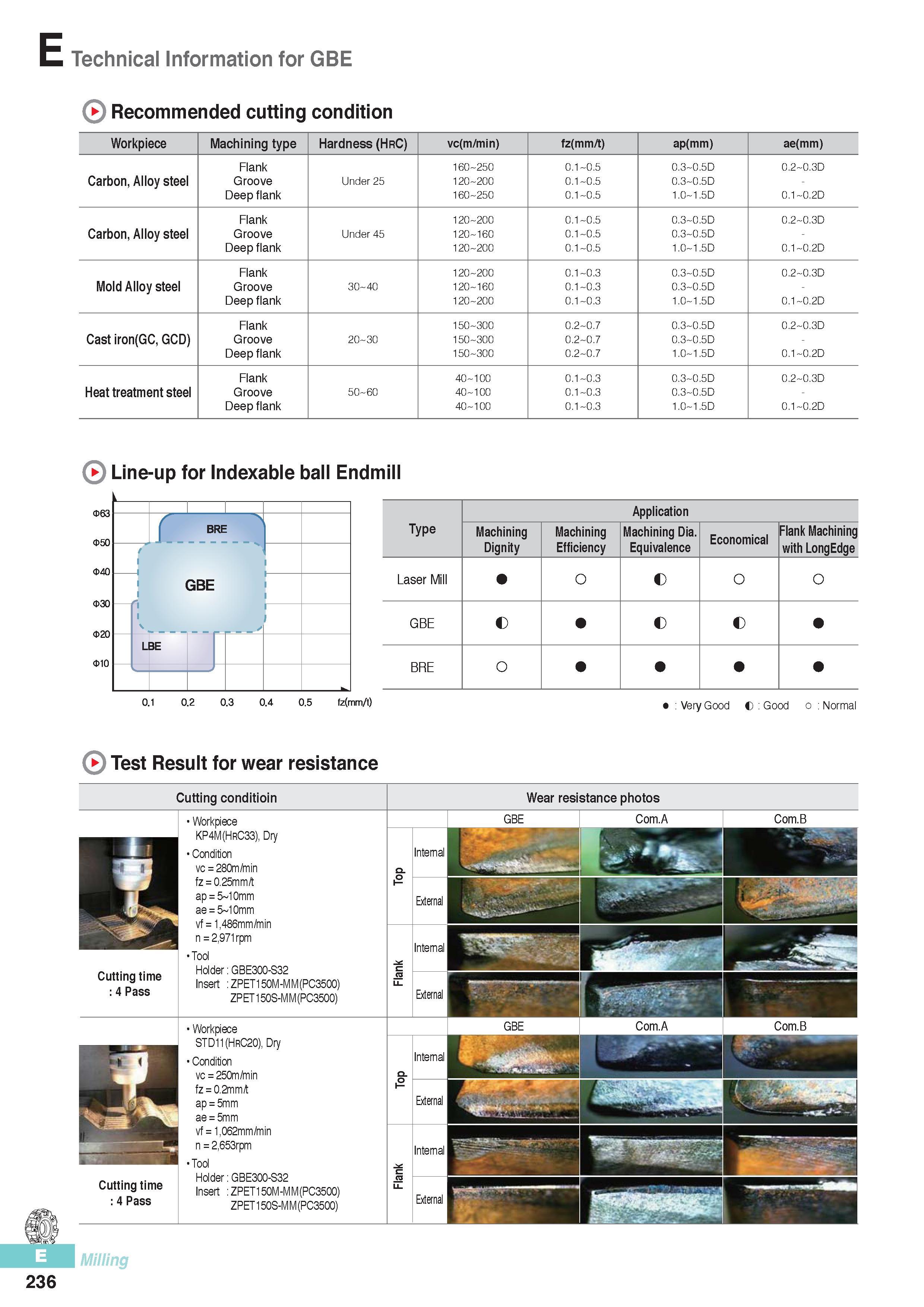

E Technical Information for GBE Recommended cutting condition Workpiece Machining type Hardness (HrC) vc(m/min) fz(mm/t) ap(mm) ae(mm) Flank 160 250 0. 5 0.3 0.5D 0.2 0.3D Carbon, Alloy steel Groove Under 25 120 200 0. 5 0.3 0.5D - Deep flank 160 250 0. 5 1.0 1.5D 0.1 0.2D Flank 120 200 0. 5 0.3 0.5D 0.2 0.3D Carbon, Alloy steel Groove Under 45 120 160 0. 5 0.3 0.5D - Deep flank 120 200 0. 5 1.0 1.5D 0.1 0.2D Flank 120 200 0. 3 0.3 0.5D 0.2 0.3D Mold Alloy steel Groove 3 120 160 0. 3 0.3 0.5D - Deep flank 120 200 0. 3 1.0 1.5D 0.1 0.2D Flank 150 300 0. 2 7 0.3 0.5D 0.2 0.3D Cast iron(GC, GCD) Groove 20 30 150 300 0. 2 i 7 0.3 0.5D - Deep flank 150 300 0. 2 i 7 1.0 1.5D 0.1 0.2D Flank 40 100 0. 3 0.3 0.5D 0.2 0.3D Heat treatment steel Groove 50 60 40 100 0. 3 0.3 0.5D - Deep flank 40 100 0. 3 1.0 1.5D 0.1 0.2D Line-up for Indexable ball Endmill 063 050 040 030 020 010 n > BRE / 1 GBE 1 1 1 V, L BE Application Type Machining Dignity Machining Efficiency Machining Dia. Equivalence Economical Flank Machining with LongEdge Laser Mill o GBE BRE o 0.1 0.2 0.3 0.4 0.5 fz(mm/t) Very Good Good o Normal Test Result for wear resistance Cutting conditioin Workpiece KP4M(HrC33), Dry Condition vc = 280m/min fz = 0.25mm/t ap = 5 10mm ae = 5 10mm vf = 1,486mm/min n = 2,971rpm Tool Holder: GBE300-S32 Insert :ZPET150M-MM(PC3500) ZPET150S-MM(PC3500) Workpiece STD11(HrC20), Dry Condition vc = 250m/min fz = 0.2mm/t ap = 5mm ae = 5mm vf = 1,062mm/min n = 2,653rpm Tool Holder: GBE300-S32 Insert :ZPET150M-MM(PC3500) ZPET150S-MM(PC3500) Wear resistance photos Com.B Milling 236
