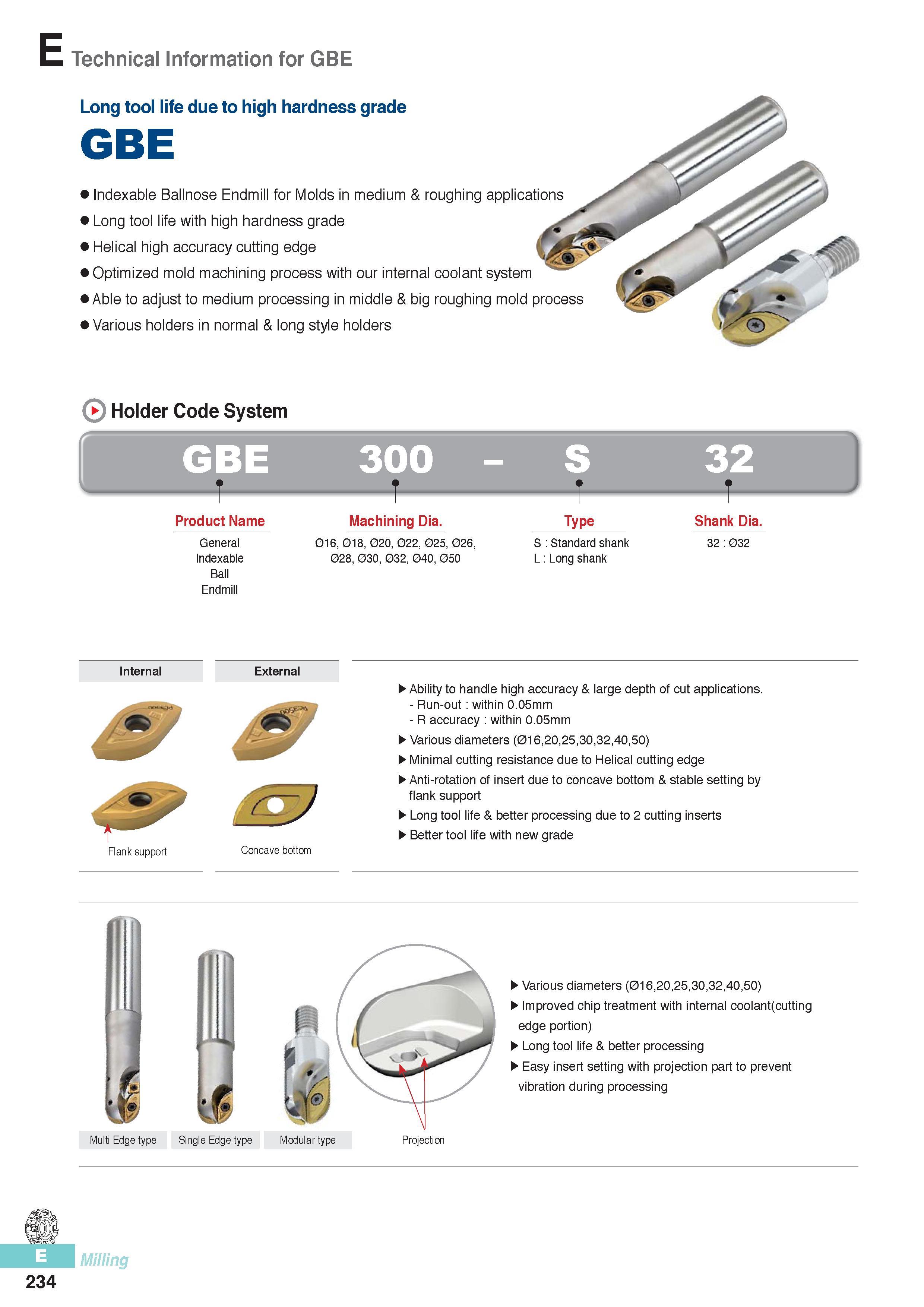

Indexable Ballnose Endmill Korloy GBE for Molds in medium & roughing applications Long tool life with high hardness grade Helical high accuracy cutting edge Optimized mold machining process with our internal coolant system Able to adjust to medium processing in middle & big roughing mold process Various holders in normal & long style holders Holder Code System 300 - 32 Product Name General Indexable Ball Endmill Machining Dia. 016, 018, 020, 022, 025, 026, 028, 030, 032, 040, 050 Type S Standard shank L Long shank Shank Dia. 32 :032 Internal External Ability to handle high accuracy & large depth of cut applications. - Run-out: within 0.05mm - R accuracy within 0.05mm Various diameters (016,20,25,30,32,40,50) Minimal cutting resistance due to Helical cutting edge Anti-rotation of insert due to concave bottom & stable setting by flank support Long tool life & better processing due to 2 cutting inserts Better tool life with new grade Flank support Concave bottom Various diameters (016,20,25,30,32,40,50) Improved chip treatment with internal coolant(cutting edge portion) Long tool life & better processing Easy insert setting with projection part to prevent vibration during processing Multi Edge type Single Edge type Modular type Projection 234 Technical Information for GBE Long tool life due to high hardness grade GBE
