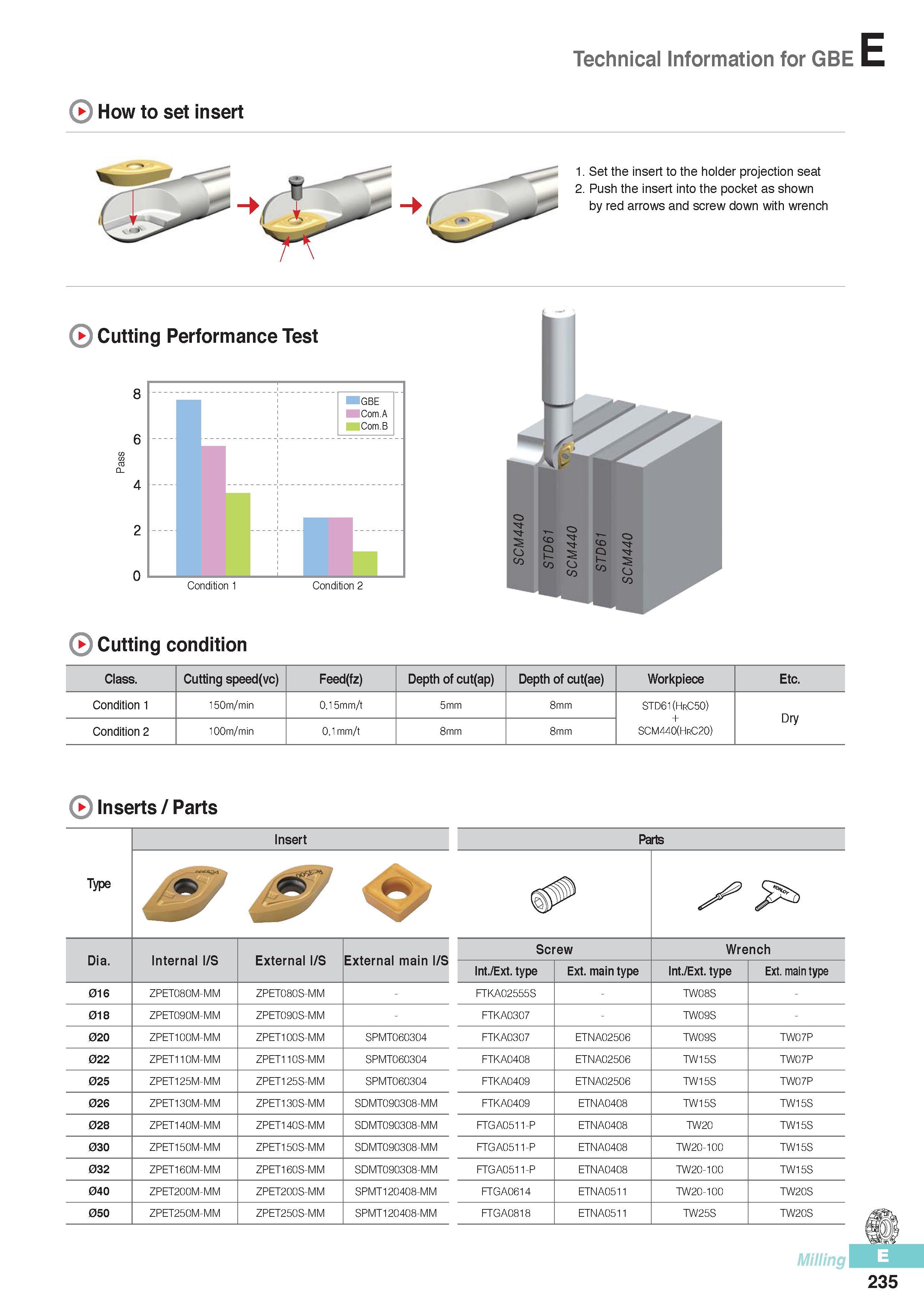

Technical Information for GBE E How to set insert 1. Set the insert to the holder projection seat 2. Push the insert into the pocket as shown by red arrows and screw down with wrench Cutting Performance Test GBE 1 Com.A I Com.B 1 r_ jar Condition 1 Condition 2 co oo O co o Q co G Cutting condition Class. Cutting speed(vc) Feed(fz) Depth of cut(ap) Depth of cut(ae) Workpiece Etc. Condition 1 150m/min 0.15mm/t 5mm 8mm STD61(HrC50) + SCM440(HrC20) Dry Condition 2 100m/min 0.1mm/t 8mm 8mm Inserts / Parts Parts Screw Wrench Int./Ext. type Ext. main type Int./Ext. type Ext. main type FIKA02555S - TW08S - FTKA0307 - TW09S - FTKA0307 ETNA02506 TW09S TW07P FTKA0408 ETNA02506 TW15S TW07P FTKA0409 ETNA02506 TW15S TW07P FTKA0409 ETNA0408 TW15S TW15S FTGA0511-P ETNA0408 TW20 TW15S FTGA0511-P ETNA0408 TW20-100 TW15S FTGA0511-P ETNA0408 TW20-100 TW15S FTGA0614 ETNA0511 TW20-100 TW20S FTGA0818 ETNA0511 TW25S TW20S Type Insert 9 0 G Dia. Internal I/S External I/S External main I/S 016 ZPET080M-MM ZPET080S-MM - 018 ZPET090M-MM ZPET090S-MM - 020 ZPET100M-MM ZPET100S-MM SPMT060304 022 ZPET110M-MM ZPET110S-MM SPMT060304 025 ZPET125M-MM ZPET125S-MM SPMT060304 026 ZPET130M-MM ZPET130S-MM SDMT090308-MM 028 ZPET140M-MM ZPET140S-MM SDMT090308-MM 030 ZPET150M-MM ZPET150S-MM SDMT090308-MM 032 ZPET160M-MM ZPET160S-MM SDMT090308-MM 040 ZPET200M-MM ZPET200S-MM SPMT120408-MM 050 ZPET250M-MM ZPET250S-MM SPMT120408-MM Millin E 235
