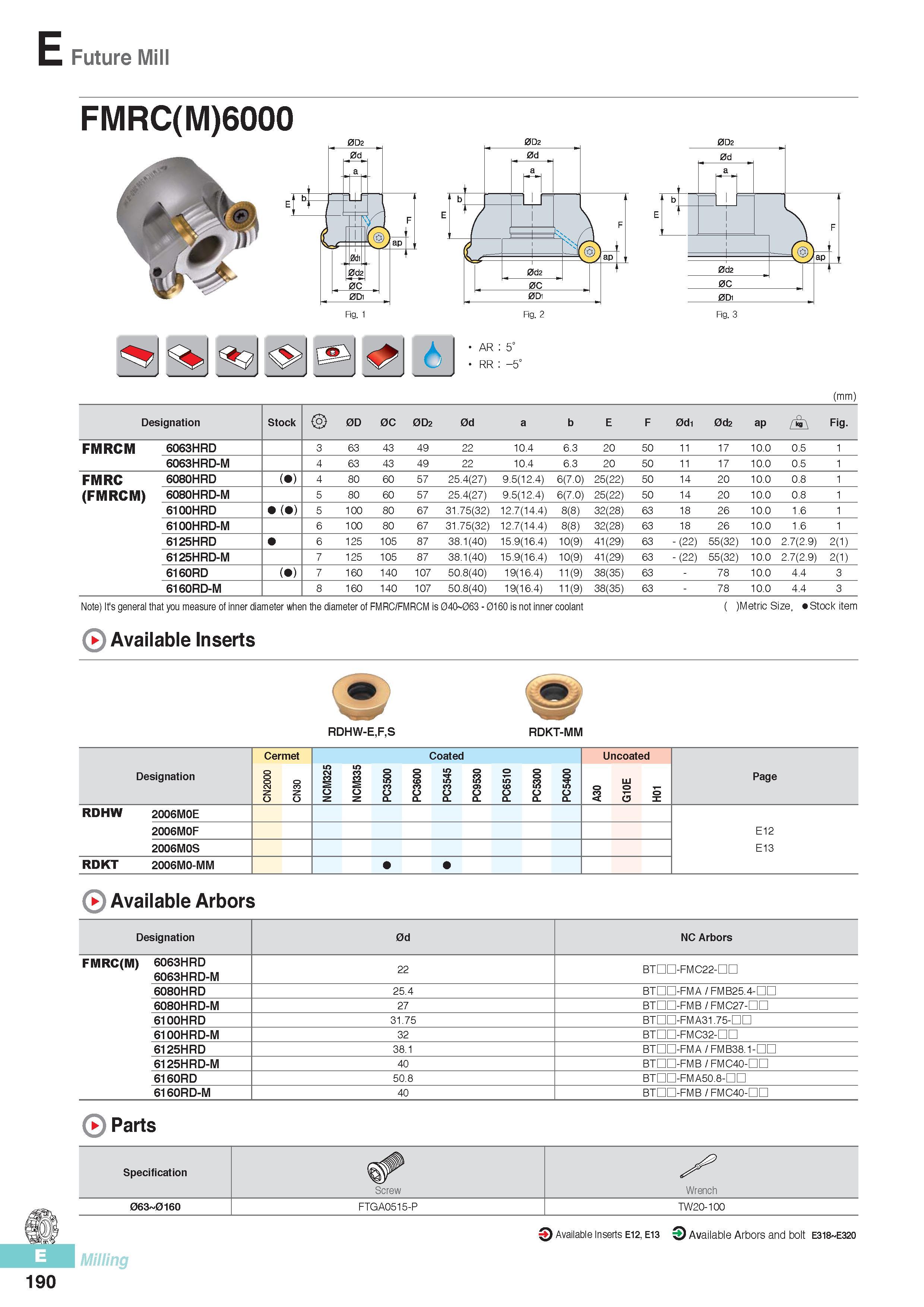

Future Mill FMRC(M)6000 AR RR (mm) Designation Stock 0D 0C 0D2 0d a b E F 0d1 0d2 ap Fig. FMRCM 6063HRD 3 63 43 49 22 10.4 6.3 20 50 11 17 10.0 0.5 1 6063HRD-M 4 63 43 49 22 10.4 6.3 20 50 11 17 10.0 0.5 1 FMRC 6080HRD ( ) 4 80 60 57 25.4(27) 9.5(12.4) 6(7.0) 25(22) 50 14 20 10.0 0.8 1 (FMRCM) 6080HRD-M 5 80 60 57 25.4(27) 9.5(12.4) 6(7.0) 25(22) 50 14 20 10.0 0.8 1 6100HRD ( ) 5 100 80 67 31.75(32) 12.7(14.4) 8(8) 32(28) 63 18 26 10.0 1.6 1 6100HRD-M 6 100 80 67 31.75(32) 12.7(14.4) 8(8) 32(28) 63 18 26 10.0 1.6 1 6125HRD 6 125 105 87 38.1(40) 15.9(16.4) 10(9) 41(29) 63 - (22) 55(32) 10.0 2.7(2.9) 2(1) 6125HRD-M 7 125 105 87 38.1(40) 15.9(16.4) 10(9) 41(29) 63 - (22) 55(32) 10.0 2.7(2.9) 2(1) 6160RD ( ) 7 160 140 107 50.8(40) 19(16.4) 11(9) 38(35) 63 - 78 10.0 4.4 3 6160RD-M 8 160 140 107 50.8(40) 19(16.4) 11(9) 38(35) 63 - 78 10.0 4.4 3 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCMis 04O 063 - 0160 is notinner coolant ( )MetricSize, Stock item Available Inserts RDHW-E,F,S RDKT-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 RDHW 2006M0E 2006M0F E12 2006M0S E13 RDKT 2006M0-MM Available Arbors Designation 0d NC Arbors FMRC(M) 6063HRD 6063HRD-M 22 BTDD-FMC22-DC 6080HRD 25.4 BTDD-FMA 1 FMB25.4-DD 6080HRD-M 27 BTDD-FMB/FMC27-nn 6100HRD 31.75 BTHO-FMA31.75-HD 6100HRD-M 32 BTHO-FMC32-HD 6125HRD 38.1 BTDD-FMA/FMB38.1-nn 6125HRD-M 40 BTDD-FMB/FMC40-nn 6160RD 50.8 BTHO-FMA50.8-HD 6160RD-M 40 BTDn-FMB/FMC40-nn Parts Specification Screw Wrench 063 0160 FTGA0515-P TW20-100 Milling 190 Q Available Inserts E12, E13 0 Available Arbors and bolt E318 E320
