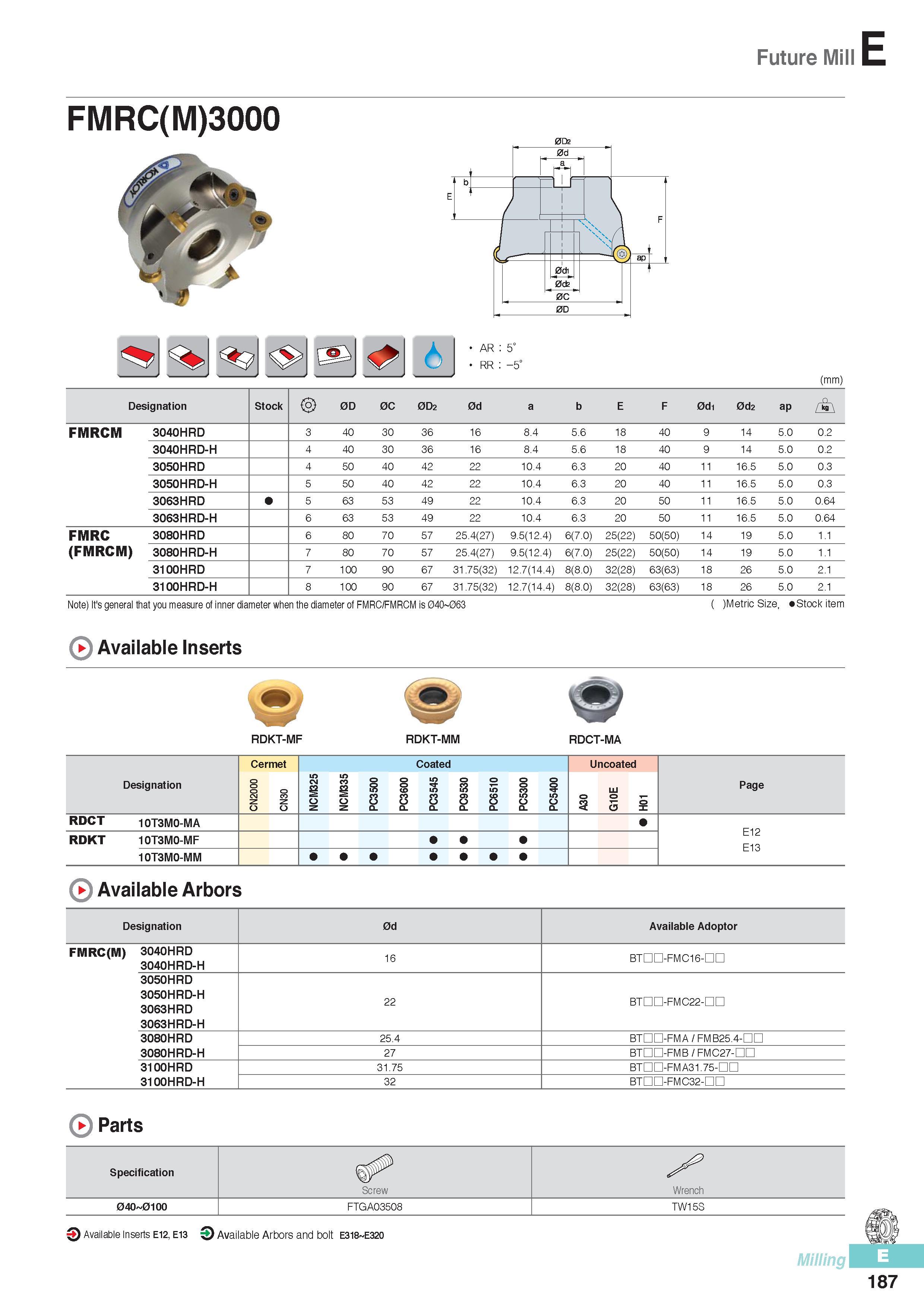

Future Mill FMRC(M)3000 AR 5° RR -5° (mm) Designation Stock 0D 0C 0D2 0d a b E F 0d1 0d2 ap FMRCM 3040HRD 3 40 30 36 16 8.4 5.6 18 40 9 14 5.0 0.2 3040HRD-H 4 40 30 36 16 8.4 5.6 18 40 9 14 5.0 0.2 3050HRD 4 50 40 42 22 10.4 6.3 20 40 11 16.5 5.0 0.3 3050HRD-H 5 50 40 42 22 10.4 6.3 20 40 11 16.5 5.0 0.3 3063HRD 5 63 53 49 22 10.4 6.3 20 50 11 16.5 5.0 0.64 3063HRD-H 6 63 53 49 22 10.4 6.3 20 50 11 16.5 5.0 0.64 FMRC 3080HRD 6 80 70 57 25.4(27) 9.5(12.4) 6(7.0) 25(22) 50(50) 14 19 5.0 1.1 (FMRCM) 3080HRD-H 7 80 70 57 25.4(27) 9.5(12.4) 6(7.0) 25(22) 50(50) 14 19 5.0 1.1 3100HRD 7 100 90 67 31.75(32) 12.7(14.4) 8(8.0) 32(28) 63(63) 18 26 5.0 2.1 3100HRD-H 8 100 90 67 31.75(32) 12.7(14.4) 8(8.0) 32(28) 63(63) 18 26 5.0 2.1 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCMis 04O 063 ( )MetricSize, Stock item > Available Inserts RDKT-MF RDKT-MM RDCT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page RDCT 10T3M0-MA E12 E13 RDKT 10T3M0-MF 10T3M0-MM Available Arbors Designation 0d Available Adoptor FMRC(M) 3040HRD 3040HRD-H 16 BTHD-FMC16-DC 3050HRD 3050HRD-H 3063HRD 22 BTDD-FMC22-DC 3063HRD-H 3080HRD 25.4 BTDn-FMA/FMB25.4-nn 3080HRD-H 27 BTDn-FMB/FMC27-nn 3100HRD 31.75 BTHD-FMA31.75-HD 3100HRD-H 32 BTnn-FMC32-nn >) Parts Specification Screw Wrench 040 0100 FTGA03508 TW15S Q Available Inserts E12, E13 O Available Arbors and bolt E318 E320 Milling 187
