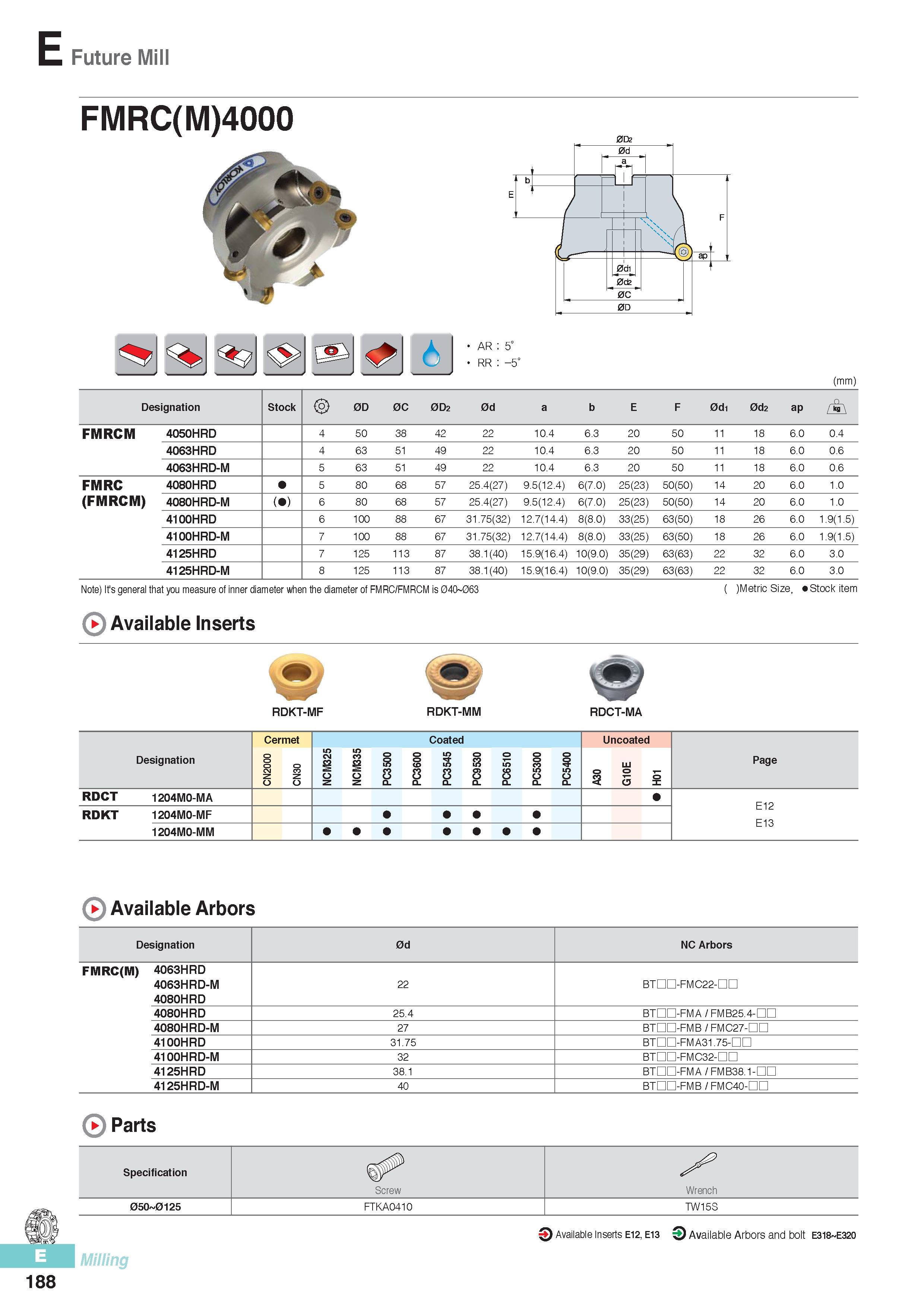

Future Mill FMRC(M)4000 %> 0D2 AR 5° RR -5° (mm) Designation Stock 0D 0C 0D2 0d a b E F 0d1 0d2 ap A FMRCM 4050HRD 4 50 38 42 22 10.4 6.3 20 50 11 18 6.0 0.4 4063HRD 4 63 51 49 22 10.4 6.3 20 50 11 18 6.0 0.6 4063HRD-M 5 63 51 49 22 10.4 6.3 20 50 11 18 6.0 0.6 FMRC 4080HRD 5 80 68 57 25.4(27) 9.5(12.4) 6(7.0) 25(23) 50(50) 14 20 6.0 1.0 (FMRCM) 4080HRD-M ( ) 6 80 68 57 25.4(27) 9.5(12.4) 6(7.0) 25(23) 50(50) 14 20 6.0 1.0 4100HRD 6 100 88 67 31.75(32) 12.7(14.4) 8(8.0) 33(25) 63(50) 18 26 6.0 1.9(1.5) 4100HRD-M 7 100 88 67 31.75(32) 12.7(14.4) 8(8.0) 33(25) 63(50) 18 26 6.0 1.9(1.5) 4125HRD 7 125 113 87 38.1(40) 15.9(16.4) 10(9.0) 35(29) 63(63) 22 32 6.0 3.0 4125HRD-M 8 125 113 87 38.1(40) 15.9(16.4) 10(9.0) 35(29) 63(63) 22 32 6.0 3.0 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCMis 04O 063 ( )MetricSize, Stock item Available Inserts RDKT-MF RDKT-MM RDCT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page RDCT 1204M0-MA E12 E13 RDKT 1204M0-MF 1204M0-MM Available Arbors Designation 0d NC Arbors FMRC(M) 4063HRD 4063HRD-M 4080HRD 22 BTDD-FMC22-DC 4080HRD 25.4 BTDD-FMA 1 FMB25.4-DD 4080HRD-M 27 BTDn-FMB/FMC27-nn 4100HRD 31.75 BTHO-FMA31.75-HD 4100HRD-M 32 BTnn-FMC32-nn 4125HRD 38.1 BTDn-FMA/FMB38.1-nn 4125HRD-M 40 BTDn-FMB/FMC40-nn Parts Specification Screw Wrench 050 0125 FTKA0410 TW15S Milling 188 Q Available Inserts E12, E13 0 Available Arbors and bolt E318 E320
