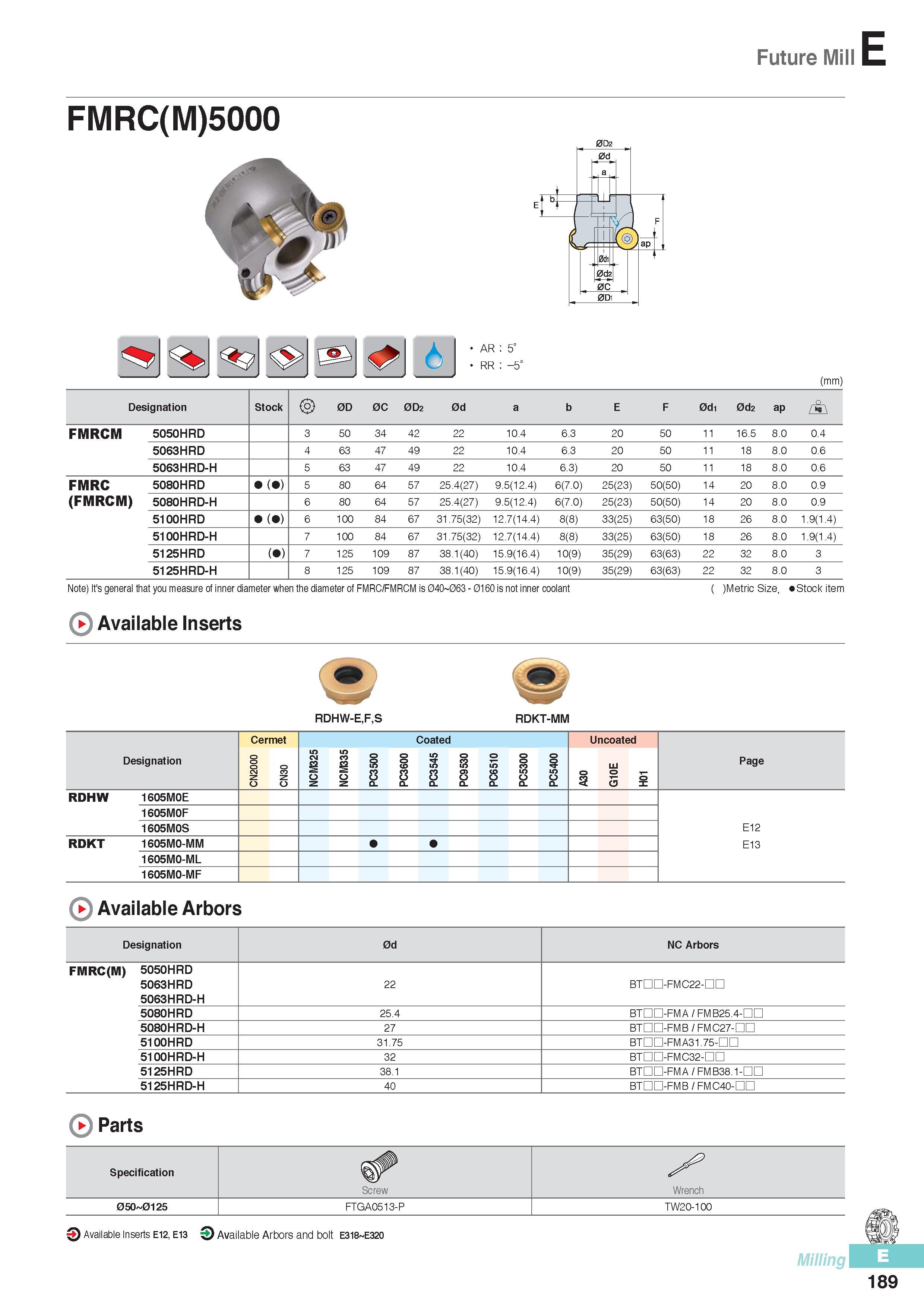

Future Mill FMRC(M)5000 AR 5 RR -5° (mm) Designation Stock 0D 0C 0D2 0d a b E F 0d1 0d2 ap FMRCM 5050HRD 3 50 34 42 22 10.4 6.3 20 50 11 16.5 8.0 0.4 5063HRD 4 63 47 49 22 10.4 6.3 20 50 11 18 8.0 0.6 5063HRD-H 5 63 47 49 22 10.4 6.3) 20 50 11 18 8.0 0.6 FMRC 5080HRD ( ) 5 80 64 57 25.4(27) 9.5(12.4) 6(7.0) 25(23) 50(50) 14 20 8.0 0.9 (FMRCM) 5080HRD-H 6 80 64 57 25.4(27) 9.5(12.4) 6(7.0) 25(23) 50(50) 14 20 8.0 0.9 5100HRD ( ) 6 100 84 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 8.0 1.9(1.4) 5100HRD-H 7 100 84 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 8.0 1.9(1.4) 5125HRD ( ) 7 125 109 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63(63) 22 32 8.0 3 5125HRD-H 8 125 109 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63(63) 22 32 8.0 3 Note) It's general that you measure of inner diameter when the diameter of FMRC/FMRCMis 04O 063 - 0160 is notinner coolant ( )MetricSize, Stock item > Available Inserts RDHW-E,F,S RDKT-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X RDHW 1605M0E 1605M0F 1605M0S E12 RDKT 1605M0-MM E13 1605M0-ML 1605M0-MF Available Arbors Designation 0d NC Arbors FMRC(M) 5050HRD 5063HRD 5063HRD-H 22 BTDD-FMC22-DC 5080HRD 25.4 BTDD-FMA/FMB25.4-nn 5080HRD-H 27 BTDD-FMB/FMC27-nn 5100HRD 31.75 BTHD-FMA31.75-HD 5100HRD-H 32 BTnn-FMC32-nn 5125HRD 38.1 BTHD-FMA/FMB38.1-HD 5125HRD-H 40 BTDn-FMB/FMC40-nn Parts Specification Screw S Wrench 050 0125 FTGA0513-P TW20-100 Q Available Inserts E12, E13 O Available Arbors and bolt E318 E320 Milling 189
