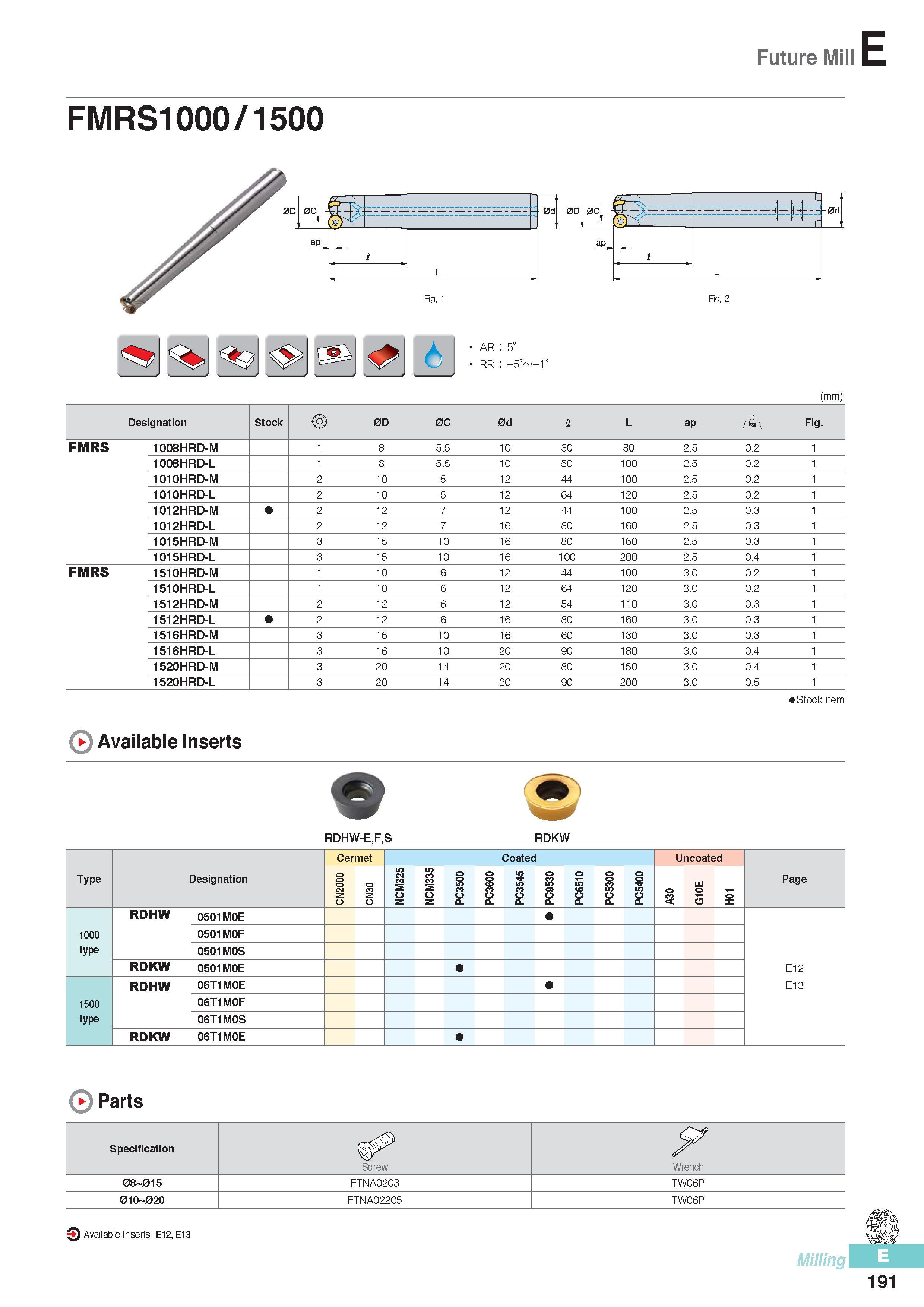

Future Mill FMRS1000 / 1500 (mm) Designation Stock 0D 0C 0d I L ap Fig. FMRS 1008HRD-M 8 5.5 10 30 80 2.5 0.2 1 1008HRD-L 8 5.5 10 50 100 2.5 0.2 1 1010HRD-M 2 10 5 12 44 100 2.5 0.2 1 1010HRD-L 2 10 5 12 64 120 2.5 0.2 1 1012HRD-M 2 12 7 12 44 100 2.5 0.3 1 1012HRD-L 2 12 7 16 80 160 2.5 0.3 1 1015HRD-M 3 15 10 16 80 160 2.5 0.3 1 1015HRD-L 3 15 10 16 100 200 2.5 0.4 1 FMRS 1510HRD-M 10 6 12 44 100 3.0 0.2 1 1510HRD-L 10 6 12 64 120 3.0 0.2 1 1512HRD-M 2 12 6 12 54 110 3.0 0.3 1 1512HRD-L 2 12 6 16 80 160 3.0 0.3 1 1516HRD-M 3 16 10 16 60 130 3.0 0.3 1 1516HRD-L 3 16 10 20 90 180 3.0 0.4 1 1520HRD-M 3 20 14 20 80 150 3.0 0.4 1 1520HRD-L 3 20 14 20 90 200 3.0 0.5 1 Stock item 0 Available Inserts RDHW-E,F,S RDKW Type Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X RDHW 0501M0E 1000 0501M0F type 0501M0S RDKW 0501M0E E12 RDHW 06T1M0E E13 1500 06T1M0F type 06T1M0S RDKW 06T1M0E ( Parts Specification Screw y Wrench 08 015 FTNA0203 TW06P 010 020 FTNA02205 TW06P 0 Available Inserts E12, E13 Milling 191
