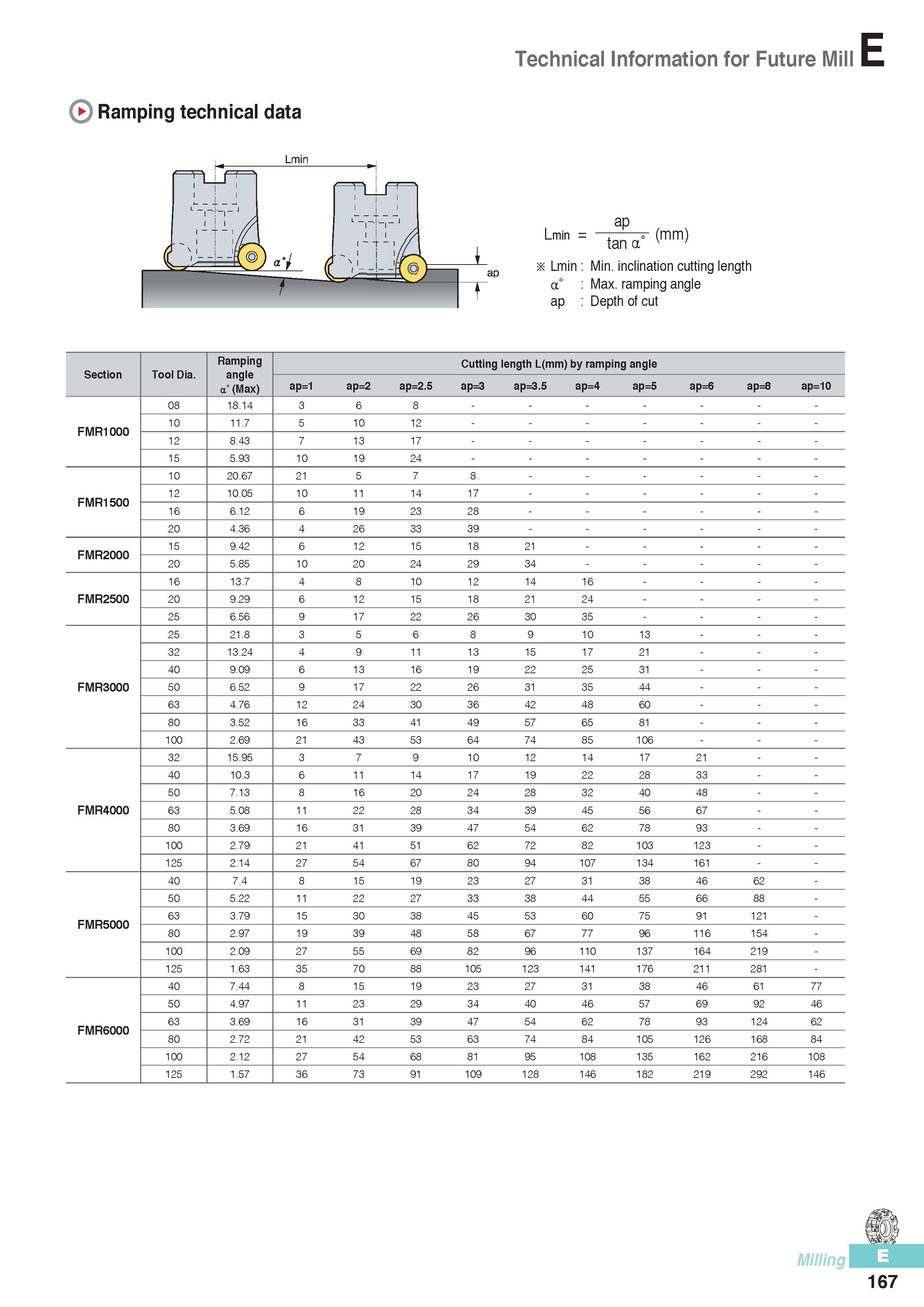

Ramping technical data Technical Information for Future Mill Lmin Section Tool Dia. Ramping angle a° (Max) Cutting length L(mm) by ramping angle ap=1 ap=2 ap=2.5 ap=3 ap=3.5 ap=4 ap=5 ap=6 ap=8 ap=10 08 18.14 3 6 8 - FMR1000 10 11.7 5 10 12 - 12 8.43 7 13 17 - 15 5.93 10 19 24 - 10 20.67 21 5 7 8 FMR1500 12 10.05 10 11 14 17 16 6.12 6 19 23 28 20 4.36 4 26 33 39 FMR2000 15 9.42 6 12 15 18 21 - 20 5.85 10 20 24 29 34 - 16 13.7 4 8 10 12 14 16 FMR2500 20 9.29 6 12 15 18 21 24 25 6.56 9 17 22 26 30 35 25 21.8 3 5 6 8 9 10 13 - 32 13.24 4 9 11 13 15 17 21 - 40 9.09 6 13 16 19 22 25 31 - FMR3000 50 6.52 9 17 22 26 31 35 44 - 63 4.76 12 24 30 36 42 48 60 - 80 3.52 16 33 41 49 57 65 81 - 100 2.69 21 43 53 64 74 85 1 06 - 32 15.95 3 7 9 10 12 14 17 21 40 10.3 6 11 14 17 19 22 28 33 50 7.13 8 16 20 24 28 32 40 48 FMR4000 63 5.08 11 22 28 34 39 45 56 67 80 3.69 16 31 39 47 54 62 78 93 100 2.79 21 41 51 62 72 82 1 03 123 125 2.14 27 54 67 80 94 107 1 34 161 40 7.4 8 15 19 23 27 31 38 46 62 - 50 5.22 11 22 27 33 38 44 55 66 88 - FMR5000 63 3.79 15 30 38 45 53 60 75 91 121 - 80 2.97 19 39 48 58 67 77 96 116 154 - 100 2.09 27 55 69 82 96 110 1 37 164 219 - 125 1.63 35 70 88 1 05 1 23 141 1 76 21 1 281 - 40 7.44 8 15 19 23 27 31 38 46 61 77 50 4.97 11 23 29 34 40 46 57 69 92 46 FMR6000 63 3.69 16 31 39 47 54 62 78 93 124 62 80 2.72 21 42 53 63 74 84 1 05 126 168 84 100 2.12 27 54 68 81 95 108 1 35 162 216 108 125 1.57 36 73 91 1 09 1 28 146 1 82 21 9 292 146 167
