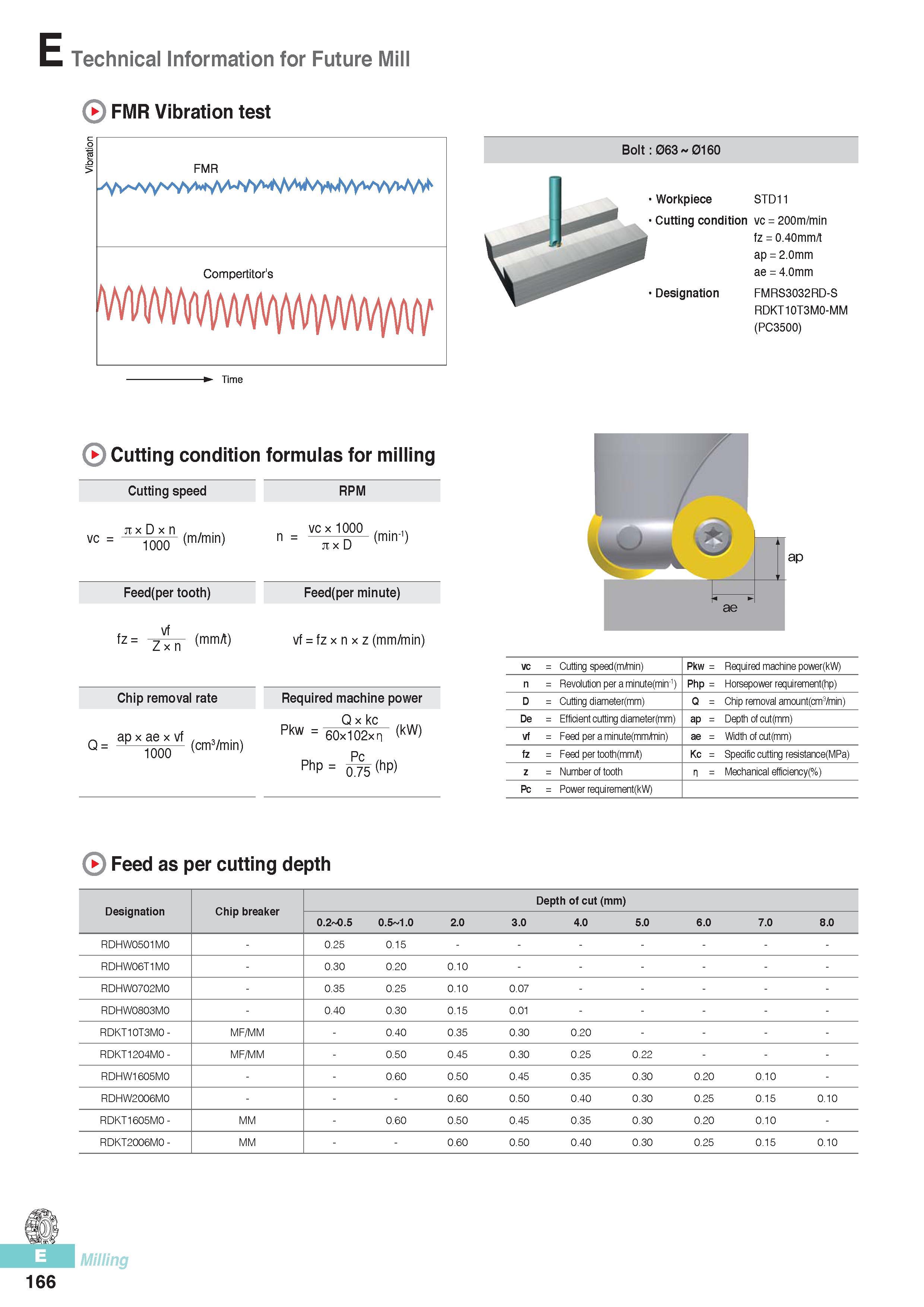

E Technical Information for Future Mill FMR Vibration test Bolt 063 0160 Workpiece STD11 Cutting condition vc = 200m/min fz = 0.40mm/t ap = 2.0mm ae = 4.0mm Designation FMRS3032RD-S RDKT10T3M0-MM (PC3500) Cutting condition formulas for milling Cutting speed RPM n x D x n vc = 100Q (m/min) vcx 1000 n n = n (min-1) n x D Feed(per tooth) Feed(per minute) fz = Zx n (mm/t) vf = fz x n x z (mm/min) Chip removal rate Required machine power ap x ae x vf ,, Q = 1000 (cm3/min) Q x kc Pkw = 60x102x n (kW) Pc Php = (hp) vc = Cutting speed(m/tmin) Pkw = Required machine power(kW) n = Revolution per a minute(min') Php = Horsepower requirement(hp) D = Cutting diameter(mm) Q = Chip removal amount(cm3/min) De = Efficient cutting diameter(mm) ap = Depth of cut(mm) vf = Feed per a minute(mm/tmin) ae = Width of cut(mm) fz = Feed per tooth(mm/t) Kc = Specific cutting resistance(MPa) z = Number of tooth n = Mechanical efficiency(%) Pc = Power requirement(kW) Feed as per cutting depth Designation Chip breaker Depth of cut (mm) 0.2 0.5 0.5 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 RDHW0501M0 - 0.25 0.15 - RDHW06T1M0 - 0.30 0.20 0.10 RDHW0702M0 - 0.35 0.25 0.10 0.07 - RDHW0803M0 - 0.40 0.30 0.15 0.01 - RDKT10T3M0 - MF/MM - 0.40 0.35 0.30 0.20 RDKT1204M0 - MF/MM - 0.50 0.45 0.30 0.25 0.22 - RDHW1605M0 0.60 0.50 0.45 0.35 0.30 0.20 0.10 - RDHW2006M0 - 0.60 0.50 0.40 0.30 0.25 0.15 0.10 RDKT1605M0 - MM - 0.60 0.50 0.45 0.35 0.30 0.20 0.10 - RDKT2006M0 - MM 0.60 0.50 0.40 0.30 0.25 0.15 0.10 166
