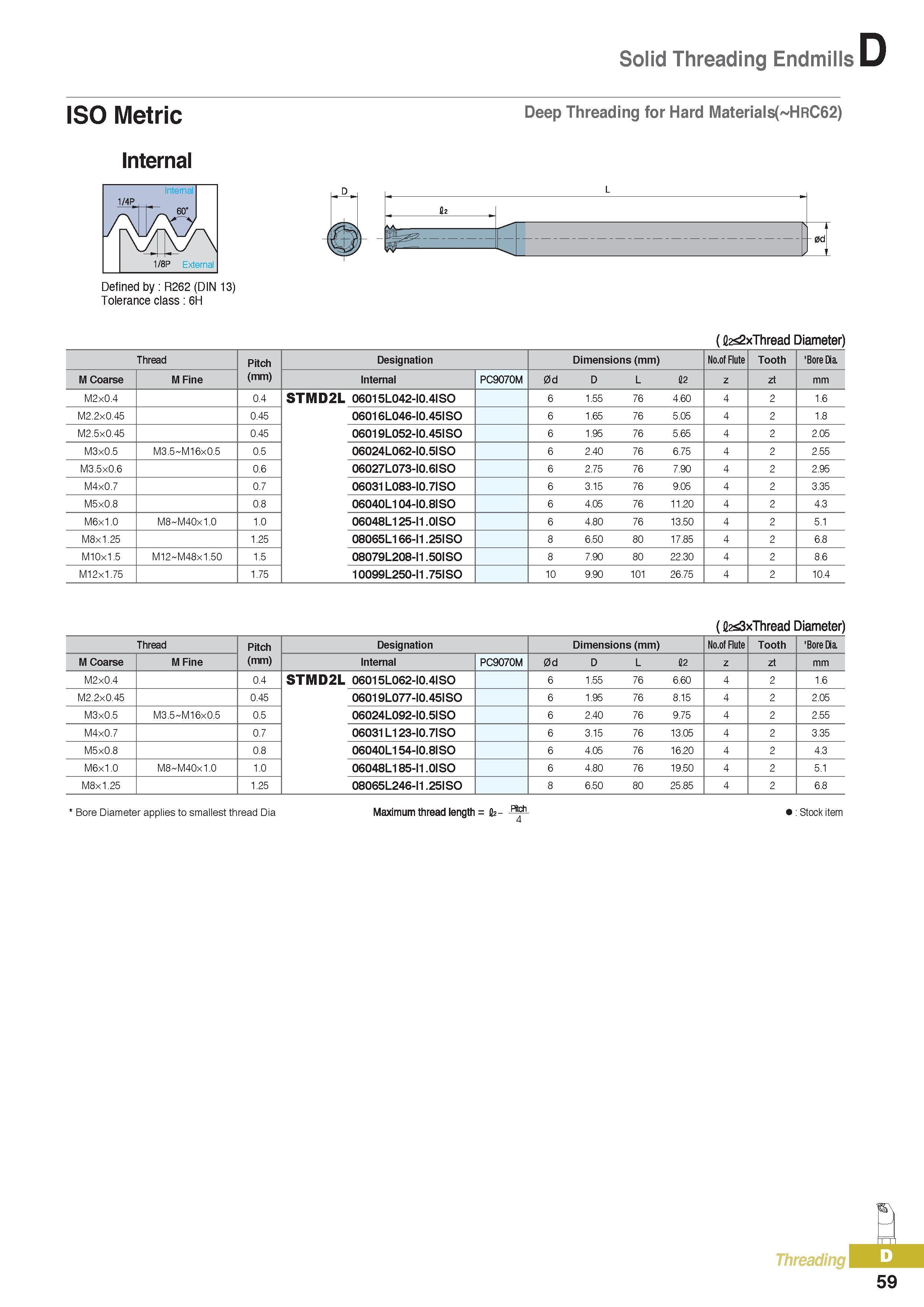

Solid Threading Endmills ISO Metric Internal Deep Threading for Hard Materials( HRC62) Defined by R262 (DIN 13) Tolerance class 6H (flagxThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D L C2 z zt mm M2x0.4 0.4 STMD2L 06015L042-I0.4IS0 6 1.55 76 4.60 4 2 1.6 M2.2x0.45 0.45 06016L046-I0.45IS0 6 1.65 76 5.05 4 2 1.8 M2.5x0.45 0.45 06019L052-I0.45IS0 6 1.95 76 5.65 4 2 2.05 M3x0.5 M3.5 M16x0.5 0.5 06024L062-I0.5IS0 6 2.40 76 6.75 4 2 2.55 M3.5x0.6 0.6 06027L073-I0.6IS0 6 2.75 76 7.90 4 2 2.95 M4x0.7 0.7 06031L083-I0.7IS0 6 3.15 76 9.05 4 2 3.35 M5x0.8 0.8 06040L104-I0.8IS0 6 4.05 76 11.20 4 2 4.3 M6x1.0 M8 M40x1.0 1.0 06048L125-I1.0IS0 6 4.80 76 13.50 4 2 5.1 M8x1.25 1.25 08065L166-I1.25IS0 8 6.50 80 17.85 4 2 6.8 M10x1.5 M12 M48x1.50 1.5 08079L208-I1.50IS0 8 7.90 80 22.30 4 2 8.6 M12x1.75 1.75 10099L250-I1.75IS0 10 9.90 101 26.75 4 2 10.4 (fl2 3xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D L C2 z zt mm M2x0.4 0.4 STMD2L 06015L062-I0.4IS0 6 1.55 76 6.60 4 2 1.6 M2.2x0.45 0.45 06019L077-I0.45IS0 6 1.95 76 8.15 4 2 2.05 M3x0.5 M3.5 M16x0.5 0.5 06024L092-I0.5IS0 6 2.40 76 9.75 4 2 2.55 M4x0.7 0.7 06031L123-I0.7IS0 6 3.15 76 13.05 4 2 3.35 M5x0.8 0.8 06040L154-I0.8IS0 6 4.05 76 16.20 4 2 4.3 M6x1.0 M8 M40x1.0 1.0 06048L185-I1.0IS0 6 4.80 76 19.50 4 2 5.1 M8x1.25 1.25 08065L246-I1.25IS0 8 6.50 80 25.85 4 2 6.8 Bore Diameter applies to smallest thread Dia Maximum thread length = fc- Stock item J. Threading 59
