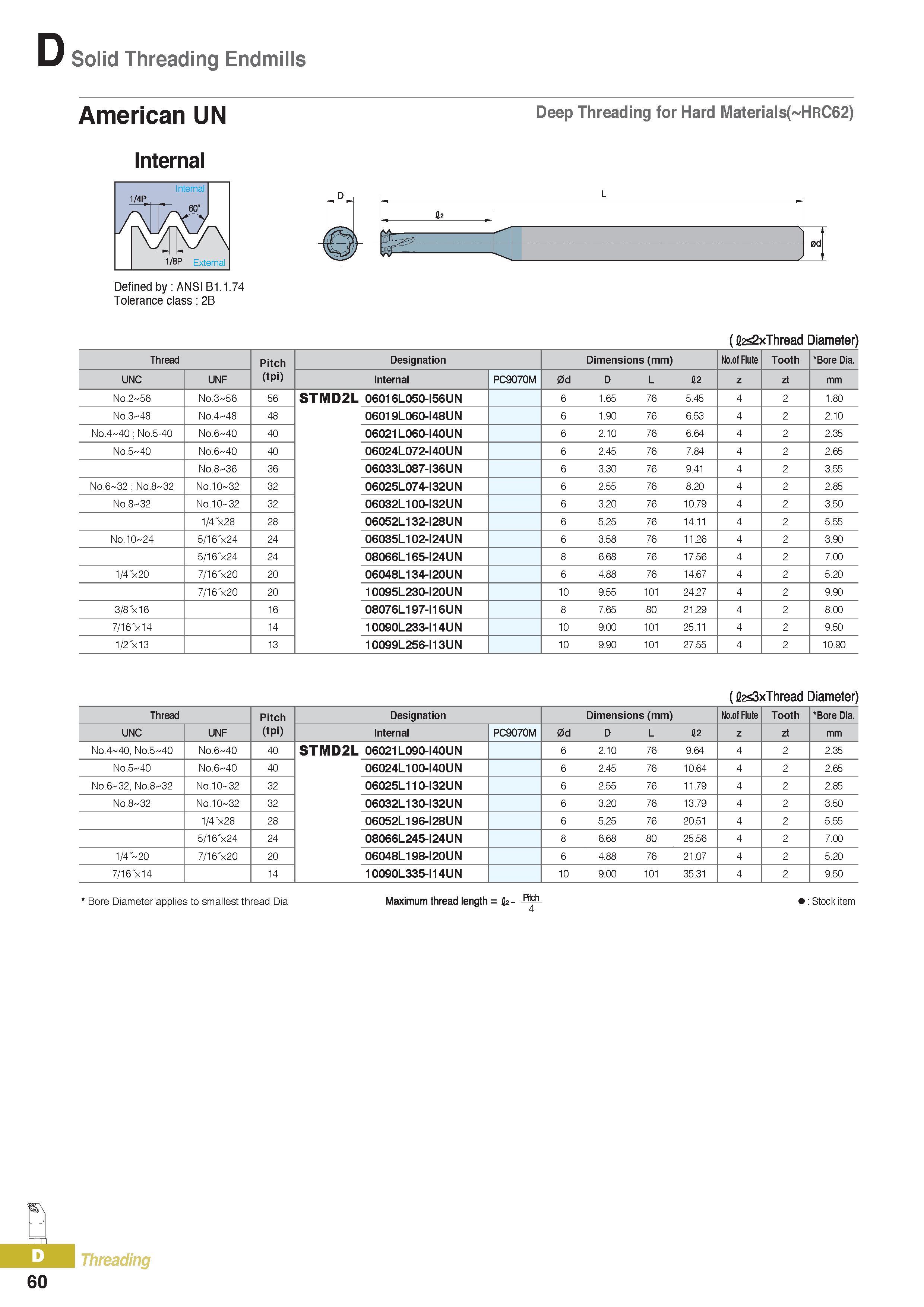

Solid Threading Endmills American UN Internal Defined by ANSI B1.1.74 Tolerance class 2B .D. Deep Threading for Hard Materials( HRC62) 0d (fcg2xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. UNC UNF (tpi) Internal PC9070M 0d D L C2 z zt mm No.2 56 No.3 56 56 STMD2L 06016L050-I56UN 6 1.65 76 5.45 4 2 1.80 No.3 48 No.4 48 48 06019L060-I48UN 6 1.90 76 6.53 4 2 2.10 No.4 40 No.5-40 No.6 40 40 06021L060-I40UN 6 2.10 76 6.64 4 2 2.35 No.5 40 No.6 40 40 06024L072-I40UN 6 2.45 76 7.84 4 2 2.65 No.8 36 36 06033L087-I36UN 6 3.30 76 9.41 4 2 3.55 No.6 32 No.8 32 No.10 32 32 06025L074-I32UN 6 2.55 76 8.20 4 2 2.85 No.8 32 No.10 32 32 06032L100-I32UN 6 3.20 76 10.79 4 2 3.50 1/4"x28 28 06052L132-I28UN 6 5.25 76 14.11 4 2 5.55 No.10 24 5/16"x24 24 06035L102-I24UN 6 3.58 76 11.26 4 2 3.90 5/16"x24 24 08066L165-I24UN 8 6.68 76 17.56 4 2 7.00 1/4"x20 7/16"x20 20 06048L134-I20UN 6 4.88 76 14.67 4 2 5.20 7/16"x20 20 10095L230-I20UN 10 9.55 101 24.27 4 2 9.90 3/8"x16 16 08076L197-I16UN 8 7.65 80 21.29 4 2 8.00 7/16'x14 14 10090L233-I14UN 10 9.00 101 25.11 4 2 9.50 1/2"x13 13 10099L256-I13UN 10 9.90 101 27.55 4 2 10.90 ( 2fi3xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. UNC UNF (tpi) Internal PC9070M 0d D L C2 z zt mm No.4 40, No.5 40 No.6 40 40 STMD2L 06021L090-I40UN 6 2.10 76 9.64 4 2 2.35 No.5 40 No.6 40 40 06024L100-I40UN 6 2.45 76 10.64 4 2 2.65 .8 o. cm' 3 .6 o. N 32 No.10 32 32 06025L110-I32UN 6 2.55 76 11.79 4 2 2.85 No.8 32 No.10 32 32 06032L130-I32UN 6 3.20 76 13.79 4 2 3.50 1/4"x28 28 06052L196-I28UN 6 5.25 76 20.51 4 2 5.55 5/16"x24 24 08066L245-I24UN 8 6.68 80 25.56 4 2 7.00 1/4" 20 7/16"x20 20 06048L198-I20UN 6 4.88 76 21.07 4 2 5.20 7/16'x14 14 10090L335-I14UN 10 9.00 101 35.31 4 2 9.50 Bore Diameter applies to smallest thread Dia Maximum thread length = 2- Pitch 4 Stock item 60 Threading
