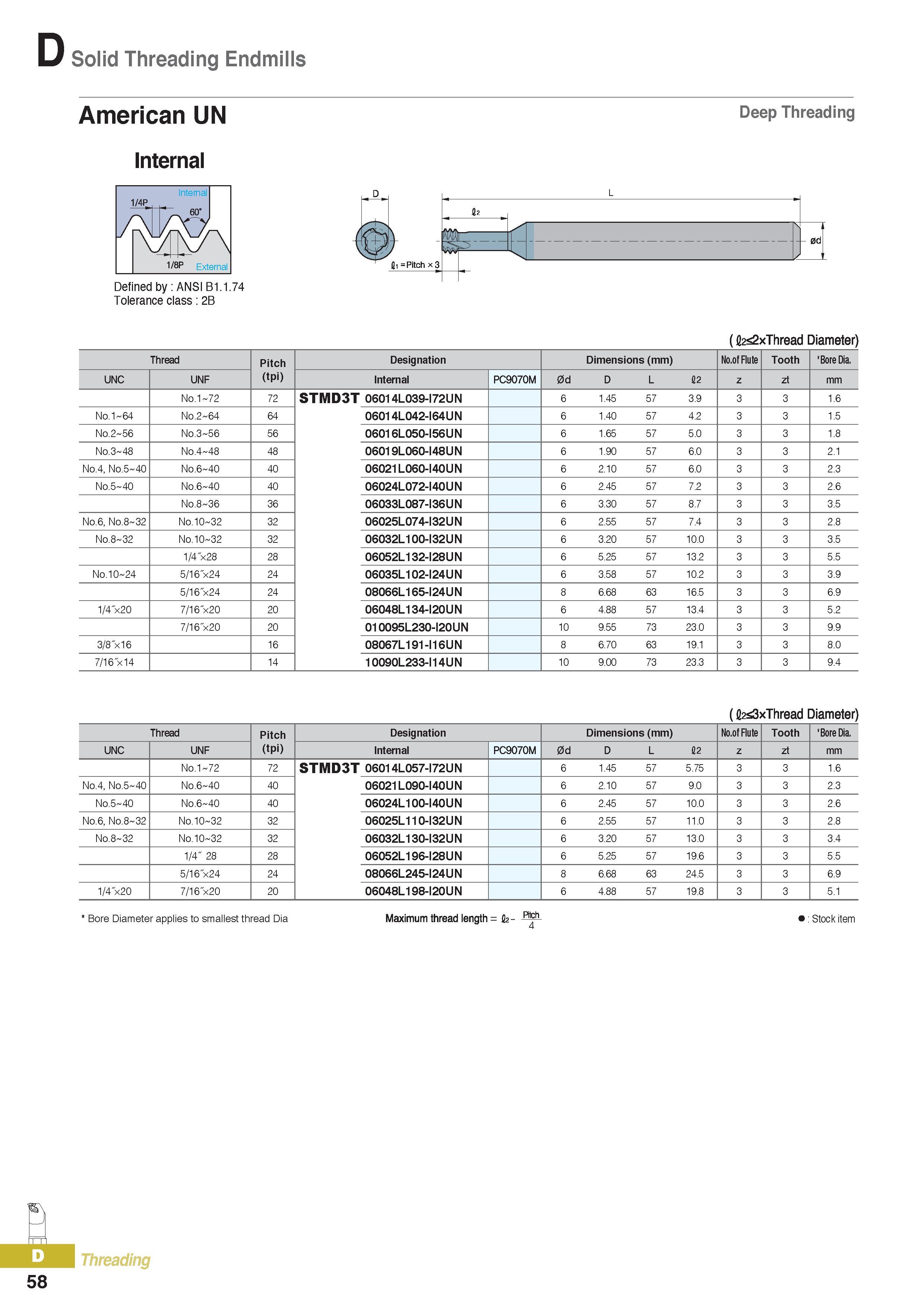

Solid Threading Endmills American UN Internal Defined by ANSI B1.1.74 Tolerance class 2B Deep Threading Hz - row P' Pitch x 3 (fcg2xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. UNC UNF (tpi) Internal PC9070M 0d D L C2 z zt mm No.1 72 72 STMD3T 06014L039-I72UN 6 1.45 57 3.9 3 3 1.6 No.1 64 No.2 64 64 06014L042-I64UN 6 1.40 57 4.2 3 3 1.5 No.2 56 No.3 56 56 06016L050-I56UN 6 1.65 57 5.0 3 3 1.8 No.3 48 No.4 48 48 06019L060-I48UN 6 1.90 57 6.0 3 3 2.1 No.4, No.5 40 No.6 40 40 06021L060-I40UN 6 2.10 57 6.0 3 3 2.3 No.5 40 No.6 40 40 06024L072-I40UN 6 2.45 57 7.2 3 3 2.6 No.8 36 36 06033L087-I36UN 6 3.30 57 8.7 3 3 3.5 No.6, No.8 32 No.10 32 32 06025L074-I32UN 6 2.55 57 7.4 3 3 2.8 No.8 32 No.10 32 32 06032L100-I32UN 6 3.20 57 10.0 3 3 3.5 1/4"x28 28 06052L132-I28UN 6 5.25 57 13.2 3 3 5.5 No.10 24 5/16"x24 24 06035L102-I24UN 6 3.58 57 10.2 3 3 3.9 5/16"x24 24 08066L165-I24UN 8 6.68 63 16.5 3 3 6.9 1/4"x20 7/16"x20 20 06048L134-I20UN 6 4.88 57 13.4 3 3 5.2 7/16"x20 20 010095L230-I20UN 10 9.55 73 23.0 3 3 9.9 3/8"x16 16 08067L191-I16UN 8 6.70 63 19.1 3 3 8.0 7/16"x14 14 10090L233-I14UN 10 9.00 73 23.3 3 3 9.4 ()ha3xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. UNC UNF (tpi) Internal PC9070M 0d D L C2 z zt mm No.1 72 72 STMD3T 06014L057-I72UN 6 1.45 57 5.75 3 3 1.6 No.4, No.5 40 No.6 40 40 06021L090-I40UN 6 2.10 57 9.0 3 3 2.3 No.5 40 No.6 40 40 06024L100-I40UN 6 2.45 57 10.0 3 3 2.6 No.6, No.8 32 No.10 32 32 06025L110-I32UN 6 2.55 57 11.0 3 3 2.8 No.8 32 No.10 32 32 06032L130-I32UN 6 3.20 57 13.0 3 3 3.4 1/4" 28 28 06052L196-I28UN 6 5.25 57 19.6 3 3 5.5 5/16"x24 24 08066L245-I24UN 8 6.68 63 24.5 3 3 6.9 1/4"x20 7/16"x20 20 06048L198-I20UN 6 4.88 57 19.8 3 3 5.1 Bore Diameter applies to smallest thread Dia Maximum thread length=S2- Stock item Jm Threading 58
