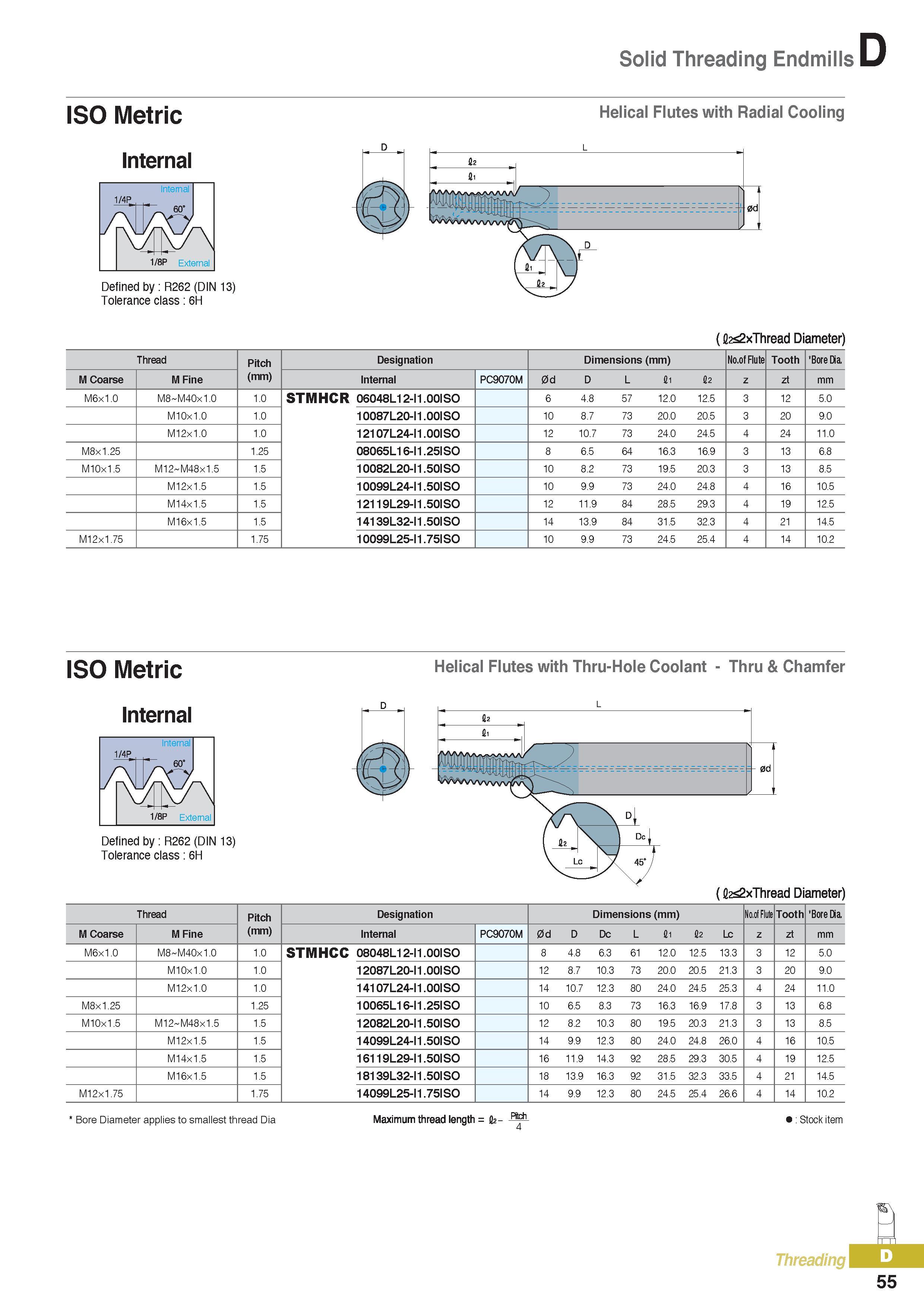

Solid Threading Endmills ISO Metric Internal Helical Flutes with Radial Cooling Defined by R262 (DIN 13) Tolerance class 6H (()2 2xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D L d fi2 z zt mm M6x1.0 M8 M40x1.0 1.0 STMHCR 06048L12-I1.00IS0 6 4.8 57 12.0 12.5 3 12 5.0 M10x1.0 1.0 10087L20-I1.00IS0 10 8.7 73 20.0 20.5 3 20 9.0 M12x1.0 1.0 12107L24-I1.00IS0 12 10.7 73 24.0 24.5 4 24 11.0 M8x1.25 1.25 08065L16-I1.25IS0 8 6.5 64 16.3 16.9 3 13 6.8 M10x1.5 M12 M48x1.5 1.5 10082L20-I1.50IS0 10 8.2 73 19.5 20.3 3 13 8.5 M12x1.5 1.5 10099L24-I1.50IS0 10 9.9 73 24.0 24.8 4 16 10.5 M14x1.5 1.5 12119L29-I1.50IS0 12 11.9 84 28.5 29.3 4 19 12.5 M16x1.5 1.5 14139L32-I1.50IS0 14 13.9 84 31.5 32.3 4 21 14.5 M12x1.75 1.75 10099L25-I1.75IS0 10 9.9 73 24.5 25.4 4 14 10.2 ISO Metric Internal Helical Flutes with Thru-Hole Coolant - Thru & Chamfer Defined by R262 (DIN 13) Tolerance class 6H (flz xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D Dc L d fi2 Lc z zt mm M6x1.0 M8 M40x1.0 1.0 STMHCC 08048L12-I1.00IS0 8 4.8 6.3 61 12.0 12.5 13.3 3 12 5.0 M10x1.0 1.0 12087L20-I1.00IS0 12 8.7 10.3 73 20.0 20.5 21.3 3 20 9.0 M12x1.0 1.0 14107L24-I1.00IS0 14 10.7 12.3 80 24.0 24.5 25.3 4 24 11.0 M8x1.25 1.25 10065L16-I1.25IS0 10 6.5 8.3 73 16.3 16.9 17.8 3 13 6.8 M10x1.5 M12 M48x1.5 1.5 12082L20-I1.50IS0 12 8.2 10.3 80 19.5 20.3 21.3 3 13 8.5 M12x1.5 1.5 14099L24-I1.50IS0 14 9.9 12.3 80 24.0 24.8 26.0 4 16 10.5 M14x1.5 1.5 16119L29-I1.50IS0 16 11.9 14.3 92 28.5 29.3 30.5 4 19 12.5 M16x1.5 1.5 18139L32-I1.50IS0 18 13.9 16.3 92 31.5 32.3 33.5 4 21 14.5 M12x1.75 1.75 14099L25-I1.75IS0 14 9.9 12.3 80 24.5 25.4 26.6 4 14 10.2 Bore Diameter applies to smallest thread Dia Maximum thread length = fc- Pitch 4 Stock item J- Threading 55
