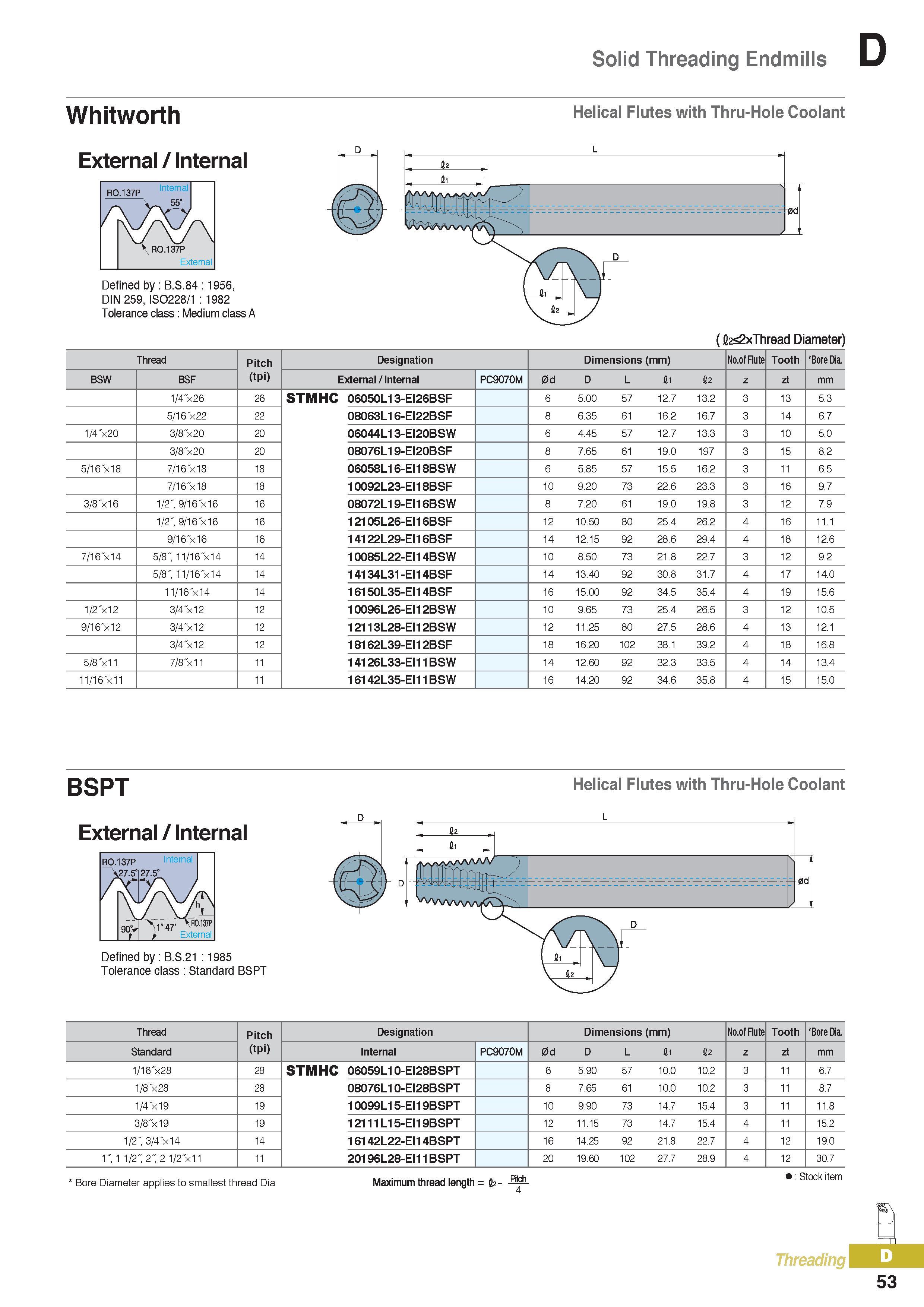

Solid Threading Endmills Whitworth External / Internal Helical Flutes with Thru-Hole Coolant interna f c\ xfXJ V R0.137P \ External Defined by B.S.84 1956, DIN 259, ISO228/1 1982 Tolerance class Medium class A (flz xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. BSW BSF (tpi) External / Internal PC9070M 0d D L 11 12 z zt mm 1/4"x26 26 STMHC 06050L13-EI26BSF 6 5.00 57 12.7 13.2 3 13 5.3 5/16"x22 22 08063L16-EI22BSF 8 6.35 61 16.2 16.7 3 14 6.7 1/4"x20 3/8"x20 20 06044L13-EI20BSW 6 4.45 57 12.7 13.3 3 10 5.0 3/8"x20 20 08076L19-EI20BSF 8 7.65 61 19.0 197 3 15 8.2 5/16'x18 7/16"x18 18 06058L16-EI18BSW 6 5.85 57 15.5 16.2 3 11 6.5 7/16"x18 18 10092L23-EI18BSF 10 9.20 73 22.6 23.3 3 16 9.7 3/8"x16 1/2", 9/16x16 16 08072L19-EI16BSW 8 7.20 61 19.0 19.8 3 12 7.9 1/2", 9/16"x16 16 12105L26-EI16BSF 12 10.50 80 25.4 26.2 4 16 11.1 9/16"x16 16 14122L29-EI16BSF 14 12.15 92 28.6 29.4 4 18 12.6 7/16'x14 5/8",11/16"x14 14 10085L22-EI14BSW 10 8.50 73 21.8 22.7 3 12 9.2 5/8",11/16"x14 14 14134L31-EI14BSF 14 13.40 92 30.8 31.7 4 17 14.0 11/16"x14 14 16150L35-EI14BSF 16 15.00 92 34.5 35.4 4 19 15.6 1/2"x12 3/4"x12 12 10096L26-EI12BSW 10 9.65 73 25.4 26.5 3 12 10.5 9/16'x12 3/4"x12 12 12113L28-EI12BSW 12 11.25 80 27.5 28.6 4 13 12.1 3/4"x12 12 18162L39-EI12BSF 18 16.20 102 38.1 39.2 4 18 16.8 5/8"x11 7/8"x11 11 14126L33-EI11BSW 14 12.60 92 32.3 33.5 4 14 13.4 11/16"x11 11 16142L35-EI11BSW 16 14.20 92 34.6 35.8 4 15 15.0 BSPT External / Internal Helical Flutes with Thru-Hole Coolant Internal \27.5" 27.5" Defined by B.S.21 1985 Tolerance class Standard BSPT Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. Standard (tpi) Internal PC9070M 0d D L d fi2 z zt mm 1/16x28 28 STMHC 06059L10-EI28BSPT 6 5.90 57 10.0 10.2 3 11 6.7 1/8x28 28 08076L10-EI28BSPT 8 7.65 61 10.0 10.2 3 11 8.7 1/4x19 19 10099L15-EI19BSPT 10 9.90 73 14.7 15.4 3 11 11.8 3/8x19 19 12111L15-EI19BSPT 12 11.15 73 14.7 15.4 4 11 15.2 1/2", 3/4x14 14 16142L22-EI14BSPT 16 14.25 92 21.8 22.7 4 12 19.0 1", 1 1/2", 2", 2 1/2x11 11 20196L28-EI11BSPT 20 19.60 102 27.7 28.9 4 12 30.7 Bore Diameter applies to smallest thread Dia Maximum thread length: Rich 4 Stock item Threading Jm 53
