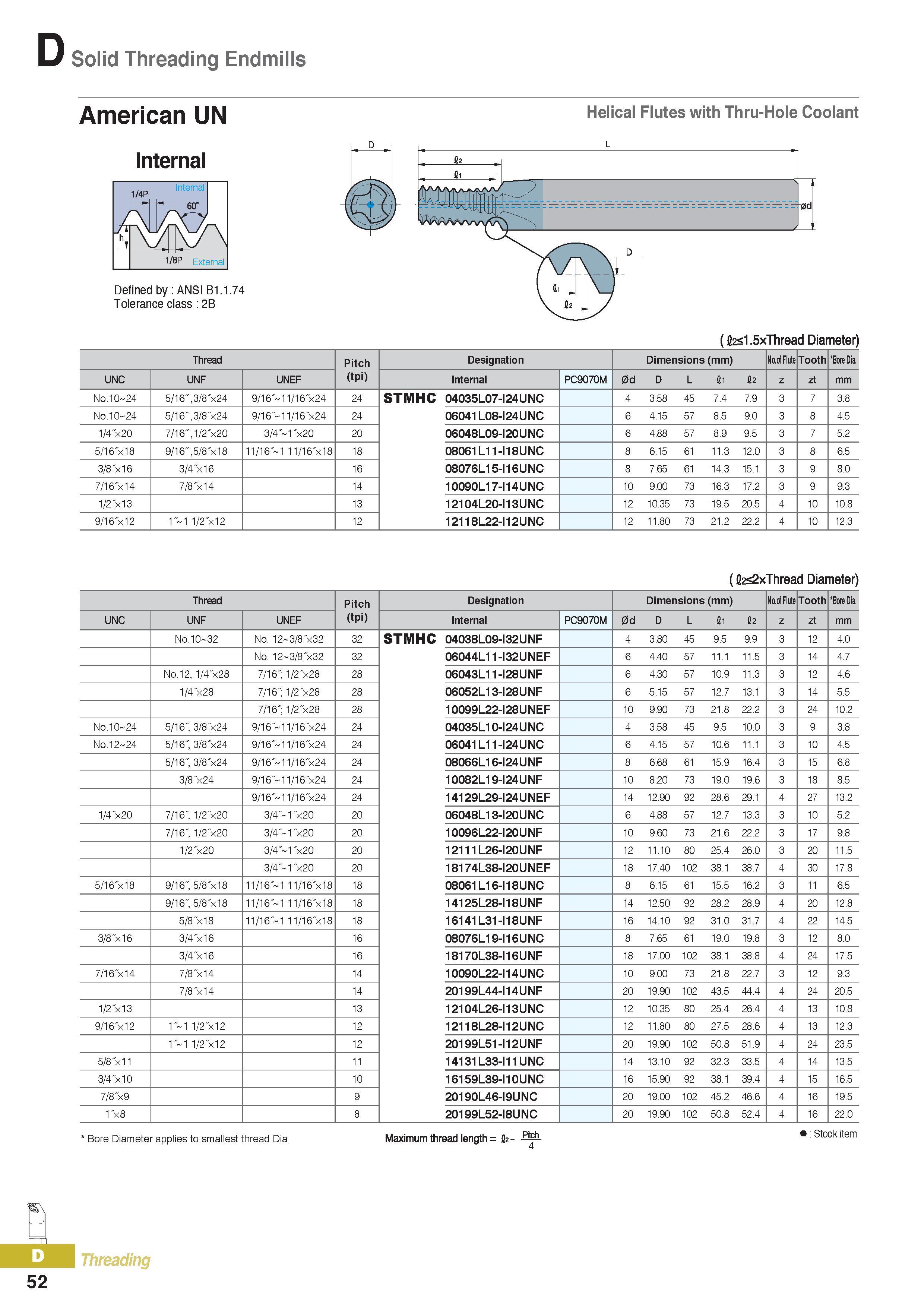

Solid Threading Endmills American UN Internal Helical Flutes with Thru-Hole Coolant Defined by ANSI B1.1.74 Tolerance class 2B (fi2 1.5xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. UNC UNF UNEF (tpi) Internal PC9070M 0d D L fi1 fi2 z zt mm No.10 24 5/16",3/8"x24 9/16" 11/16"x24 24 STMHC 04035L07-I24UNC 4 3.58 45 7.4 7.9 3 7 3.8 No.10 24 5/16",3/8"x24 9/16" 11/16"x24 24 06041L08-I24UNC 6 4.15 57 8.5 9.0 3 8 4.5 1/4"x20 7/16",1/2"x20 3/4" 1"x20 20 06048L09-I20UNC 6 4.88 57 8.9 9.5 3 7 5.2 5/16'x18 9/16",5/8"x18 11/16'x18 18 08061L11-I18UNC 8 6.15 61 11.3 12.0 3 8 6.5 3/8"x16 3/4"x16 16 08076L15-I16UNC 8 7.65 61 14.3 15.1 3 9 8.0 7/16'x14 7/8"x14 14 10090L17-I14UNC 10 9.00 73 16.3 17.2 3 9 9.3 1/2"x13 13 12104L20-I13UNC 12 10.35 73 19.5 20.5 4 10 10.8 9/16'x12 1" 1 1/2"x12 12 12118L22-I12UNC 12 11.80 73 21.2 22.2 4 10 12.3 (fl2s2xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth Bore Dia. UNC UNF UNEF (tpi) Internal PC9070M 0d D L fi1 fi2 z zt mm No.10 32 No. 12 3/8"x32 32 STMHC 04038L09-I32UNF 4 3.80 45 9.5 9.9 3 12 4.0 No. 12-3/8x32 32 06044L11-I32UNEF 6 4.40 57 11.1 11.5 3 14 4.7 No.12, 1/4x28 7/16"; 1/2"x28 28 06043L11-I28UNF 6 4.30 57 10.9 11.3 3 12 4.6 1/4"x28 7/16"; 1/2"x28 28 06052L13-I28UNF 6 5.15 57 12.7 13.1 3 14 5.5 7/16"; 1/2"x28 28 10099L22-I28UNEF 10 9.90 73 21.8 22.2 3 24 10.2 No.10 24 5/16", 3/8"x24 9/16" 11/16"x24 24 04035L10-I24UNC 4 3.58 45 9.5 10.0 3 9 3.8 No.12 24 5/16", 3/8"x24 9/16" 11/16"x24 24 06041L11-I24UNC 6 4.15 57 10.6 11.1 3 10 4.5 5/16", 3/8"x24 9/16" 11/16"x24 24 08066L16-I24UNF 8 6.68 61 15.9 16.4 3 15 6.8 3/8"x24 9/16" 11/16"x24 24 10082L19-I24UNF 10 8.20 73 19.0 19.6 3 18 8.5 9/16" 11/16"x24 24 14129L29-I24UNEF 14 12.90 92 28.6 29.1 4 27 13.2 1/4x20 7/16", 1/2x20 3/4" 1"x20 20 06048L13-I20UNC 6 4.88 57 12.7 13.3 3 10 5.2 7/16", 1/2"x20 3/4" 1"x20 20 10096L22-I20UNF 10 9.60 73 21.6 22.2 3 17 9.8 1/2"x20 3/4" 1"x20 20 12111L26-I20UNF 12 11.10 80 25.4 26.0 3 20 11.5 3/4" 1"x20 20 18174L38-I20UNEF 18 17.40 102 38.1 38.7 4 30 17.8 5/16x18 9/16", 5/8"x18 11/16" 1 11/16"x18 18 08061L16-I18UNC 8 6.15 61 15.5 16.2 3 11 6.5 9/16", 5/8"x18 11/16" 1 11/16x18 18 14125L28-I18UNF 14 12.50 92 28.2 28.9 4 20 12.8 5/8"x18 11/16" 1 11/16"x18 18 16141L31-I18UNF 16 14.10 92 31.0 31.7 4 22 14.5 3/8"x16 3/4"x16 16 08076L19-I16UNC 8 7.65 61 19.0 19.8 3 12 8.0 3/4x16 16 18170L38-I16UNF 18 17.00 102 38.1 38.8 4 24 17.5 7/16x14 7/8"x14 14 10090L22-I14UNC 10 9.00 73 21.8 22.7 3 12 9.3 7/8"x14 14 20199L44-I14UNF 20 19.90 102 43.5 44.4 4 24 20.5 1/2"x13 13 12104L26-I13UNC 12 10.35 80 25.4 26.4 4 13 10.8 9/16x12 1" 1 1/2x12 12 12118L28-I12UNC 12 11.80 80 27.5 28.6 4 13 12.3 1" 1 1/2x12 12 20199L51-I12UNF 20 19.90 102 50.8 51.9 4 24 23.5 5/8x11 11 14131L33-I11UNC 14 13.10 92 32.3 33.5 4 14 13.5 3/4"x10 10 16159L39-I10UNC 16 15.90 92 38.1 39.4 4 15 16.5 7/8"x9 9 20190L46-I9UNC 20 19.00 102 45.2 46.6 4 16 19.5 1"x8 8 20199L52-I8UNC 20 19.90 102 50.8 52.4 4 16 22.0 Bore Diameter applies to smallest thread Dia Maximum thread length = Pitch 4 Stock item Jm Threading 52
