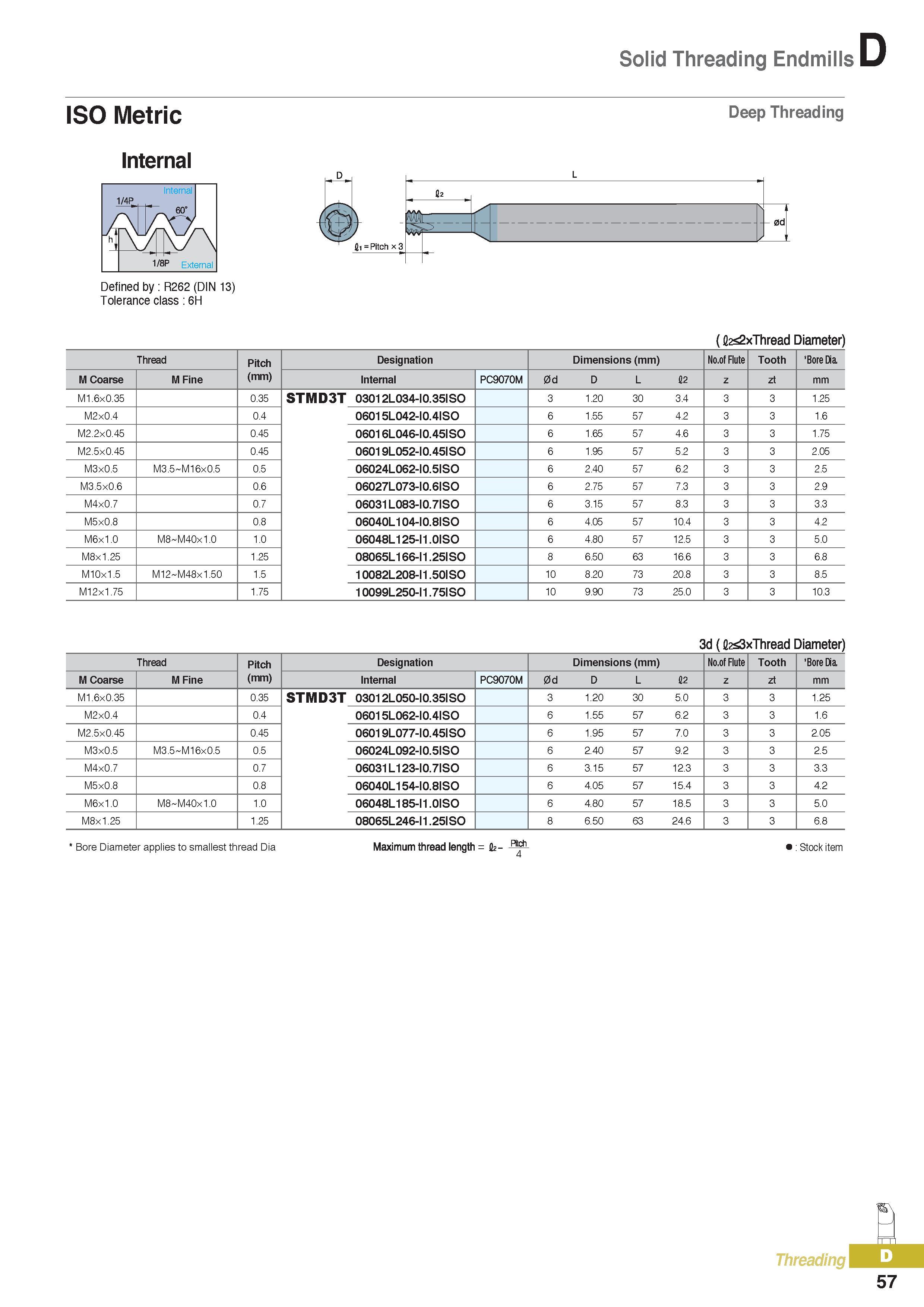

Solid Threading Endmills ISO Metric Internal Deep Threading fii = Pitch x 3 0d Defined by R262 (DIN 13) Tolerance class 6H (flagxThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D L C2 z zt mm M1.6x0.35 0.35 STMD3T 03012L034-I0.35ISO 3 1.20 30 3.4 3 3 1.25 M2x0.4 0.4 06015L042-I0.4ISO 6 1.55 57 4.2 3 3 1.6 M2.2x0.45 0.45 06016L046-I0.45ISO 6 1.65 57 4.6 3 3 1.75 M2.5x0.45 0.45 06019L052-I0.45ISO 6 1.95 57 5.2 3 3 2.05 M3x0.5 M3.5 M16x0.5 0.5 06024L062-I0.5ISO 6 2.40 57 6.2 3 3 2.5 M3.5x0.6 0.6 06027L073-I0.6ISO 6 2.75 57 7.3 3 3 2.9 M4x0.7 0.7 06031L083-I0.7ISO 6 3.15 57 8.3 3 3 3.3 M5x0.8 0.8 06040L104-I0.8ISO 6 4.05 57 10.4 3 3 4.2 M6x1.0 M8 M40x1.0 1.0 06048L125-I1.0ISO 6 4.80 57 12.5 3 3 5.0 M8x1.25 1.25 08065L166-I1.25ISO 8 6.50 63 16.6 3 3 6.8 M10x1.5 M12 M48x1.50 1.5 10082L208-I1.50ISO 10 8.20 73 20.8 3 3 8.5 M12x1.75 1.75 10099L250-I1.75ISO 10 9.90 73 25.0 3 3 10.3 3d (fl2s3xThread Diameter) Thread Pitch Designation Dimensions (mm) No.of Flute Tooth 'Bore Dia. M Coarse M Fine (mm) Internal PC9070M 0d D L C2 z zt mm M1.6x0.35 0.35 STMD3T 03012L050-I0.35IS0 3 1.20 30 5.0 3 3 1.25 M2x0.4 0.4 06015L062-I0.4IS0 6 1.55 57 6.2 3 3 1.6 M2.5x0.45 0.45 06019L077-I0.45IS0 6 1.95 57 7.0 3 3 2.05 M3x0.5 M3.5 M16x0.5 0.5 06024L092-I0.5IS0 6 2.40 57 9.2 3 3 2.5 M4x0.7 0.7 06031L123-I0.7IS0 6 3.15 57 12.3 3 3 3.3 M5x0.8 0.8 06040L154-I0.8IS0 6 4.05 57 15.4 3 3 4.2 M6x1.0 M8 M40x1.0 1.0 06048L185-I1.0IS0 6 4.80 57 18.5 3 3 5.0 M8x1.25 1.25 08065L246-I1.25IS0 8 6.50 63 24.6 3 3 6.8 Bore Diameter applies to smallest thread Dia Maximum thread length = S2- a Stock item J. Threading 57
