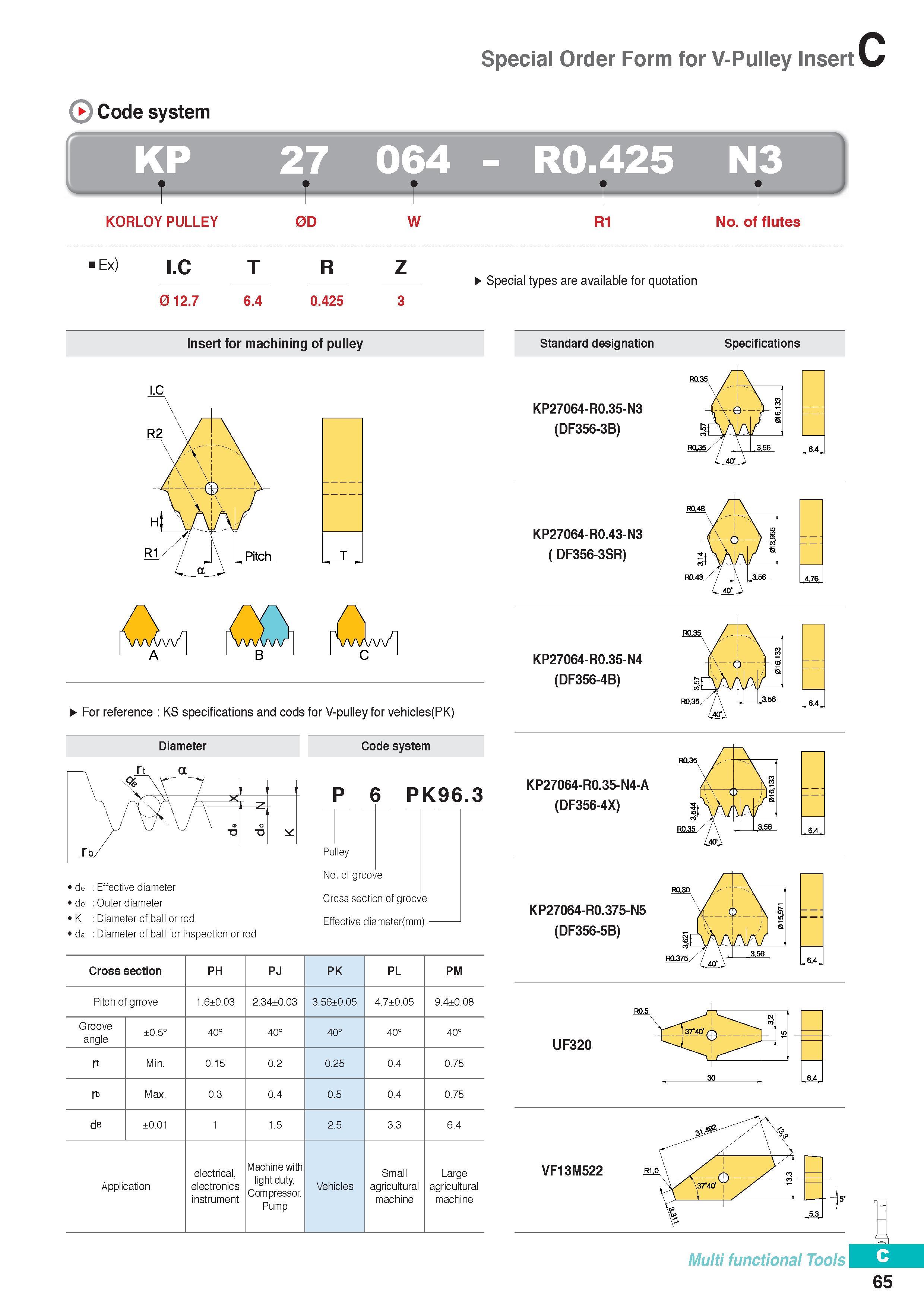

Special Order Form for V-Pulley Insert Code system KP KORLOY PULLEY lE ) I.C 0 12.7 27 064 - R0.425 N3 0D T 6.4 Insert for machining of pulley W R Z 0.425 3 R1 Special types are available for quotation No. of flutes Standard designation Specifications R2 \ / \ X _,L,. A, nf\A R1/ \ Pitch T KP27064-R0.35-N3 (DF356-3B) KP27064-R0.43-N3 ( DF356-3SR) For reference KS specifications and cods for V-pulley for vehicles(PK) Diameter de do K da Effective diameter Outer diameter Diameter of ball or rod Diameter of ball for inspection or rod Code system P 6 PK96.3 Pulley No. of groove Cross section of groove Effective diameter(mm) Cross section PH PJ PK PL PM Pitch of grrove 1.6±0.03 2.34±0.03 3.56±0.05 4.7±0.05 9.4±0.08 Groove angle ±0.5° 40° 40° 40° 40° 40° rt Min. 0.15 0.2 0.25 0.4 0.75 rb Max. 0.3 0.4 0.5 0.4 0.75 dB ±0.01 1 1.5 2.5 3.3 6.4 Application electrical, electronics instrument Machine with light duty, Compressor, Pump Vehicles Small agricultural machine Large agricultural machine KP27064-R0.35-N4 (DF356-4B) KP27064-R0.35-N4-A (DF356-4X) KP27064-R0.375-N5 (DF356-5B) UF320 VF13M522 Multi functional Tools 65
