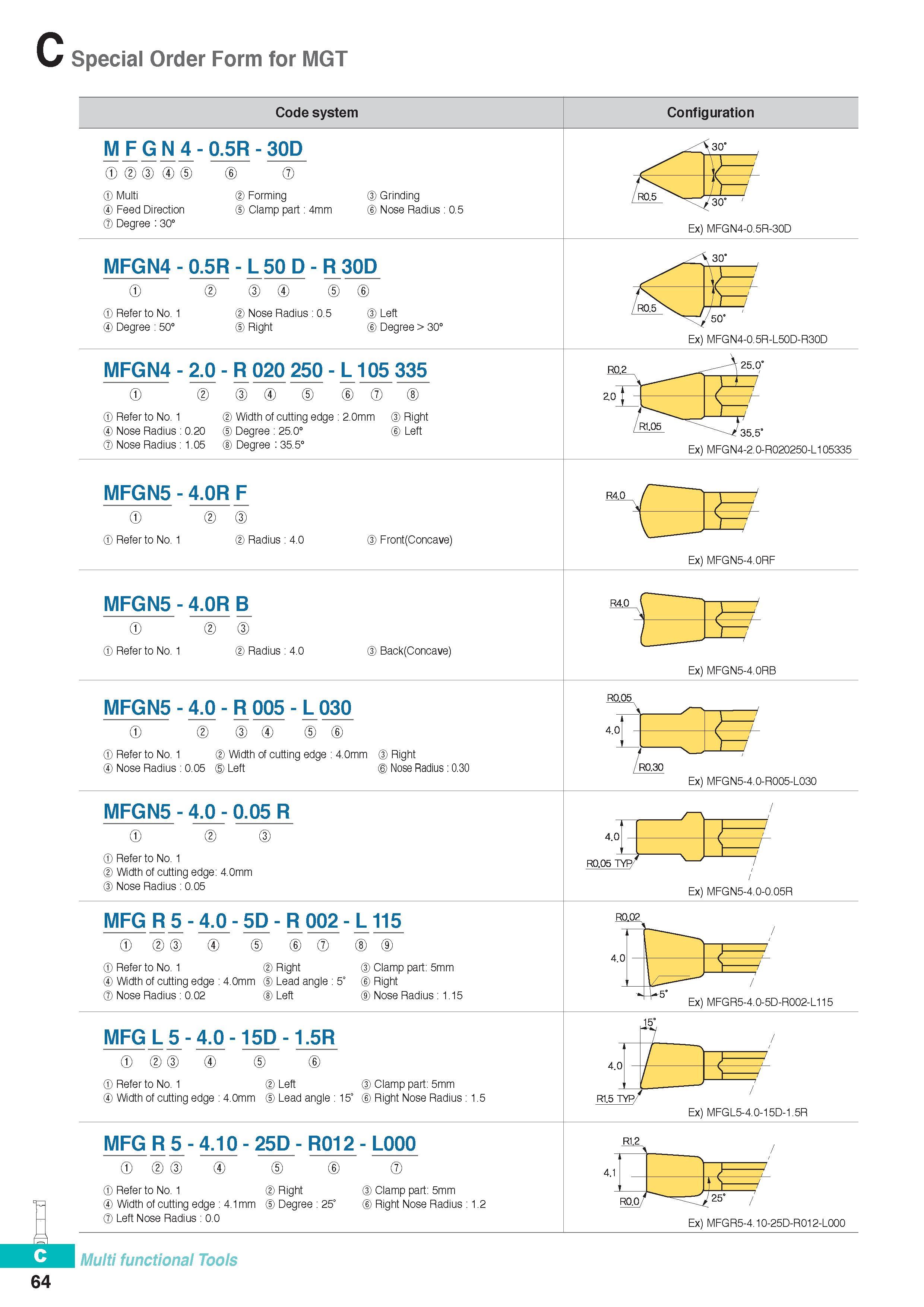

Special Order Form for MGT Code system Configuration M F G N 4 - 0.5R - 30D Multi Feed Direction Degree 30° Forming Clamp part 4mm Grinding Nose Radius 0.5 Ex) MFGN4-0.5R-30D MFGN4 - 0.5R - L 50 D - R 30D Refer to No. 1 Degree 50° Nose Radius 0.5 Right Left Degree > 30° Ex) MFGN4-0.5R-L50D-R30D MFGN4 - 2.0 - R 020 250 - L 105 335 Refer to No. 1 Width of cutting edge 2.0mm Right Nose Radius 0.20 Degree 25.0° Left Nose Radius :1.05 Degree 35.5° 25.0" 35.5' Ex) MFGN4-2.0-R020250-L105335 MFGN5 - 4.0R F Refer to No. 1 Radius 4.0 MFGN5 - 4.0R B Refer to No. 1 Radius 4.0 MFGN5 - 4.0 - R 005 - L 030 Front(Concave) Back(Concave) Refer to No. 1 Width of cutting edge 4.0mm Right Nose Radius 0.05 Left Nose Radius 0.30 R4.0 Ex) MFGN5-4.0RF R4.0 Ex) MFGN5-4.0RB R0-05 4.0 R0.30 Ex) MFGN5-4.0-R005-L030 MFGN5 - 4.0 - 0.05 R Refer to No. 1 Width of cutting edge: 4.0mm Nose Radius 0.05 4.0 R0.05 TYR Ex) MFGN5-4.0-0.05R 64 MFG R 5 - 4.0 - 5D - R 002 - L 115 Refer to No. 1 Right Clamp part: 5mm Width of cutting edge 4.0mm Lead angle 5’ Right NoseRadius:0.02 Left NoseRadius:1.15 MFG L 5 - 4.0 - 15D - 1.5R Refer to No. 1 Left Clamp part: 5mm Width of cutting edge 4.0mm Lead angle 15’ RightNoseRadius:1.5 MFG R 5 - 4.10 - 25D - R012 - L000 Refer to No. 1 Right Width of cutting edge 4.1mm Degree 25’ Left Nose Radius 0.0 Clamp part: 5mm Right Nose Radius 1.2 R0-02 Ex) MFGR5-4.0-5D-R002-L115 4.0 R1.5 TYP/ / Ex) MFGL5-4.0-15D-1.5R R1.2 4.1 RQ.o/ /25s / Ex) MFGR5-4.10-25D-R012-L000 Multi functional Tools
