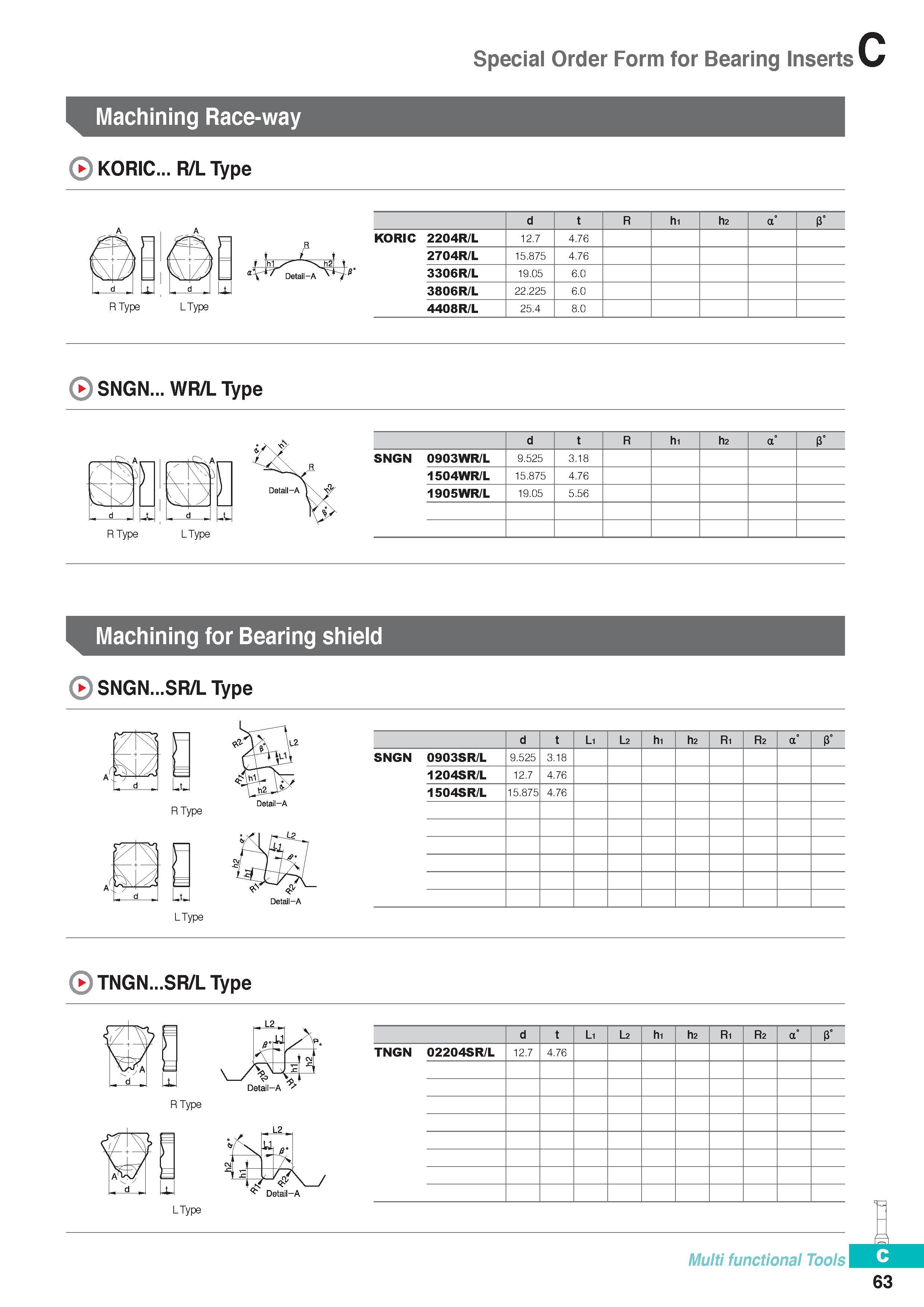

Special Order Form for Bearing Inserts Machining Race-way KORIC R/L Type n R Detail-A RType L Type d R hi h2 a° 3° KORIC 2204R/L 12.7 4.76 2704R/L 15.875 4.76 3306R/L 19.05 6.0 3806R/L 22.225 6.0 4408R/L 25.4 8.0 SNGN WR/L Type U- d RType L Type d R hi h2 a° 3° SNGN 0903WR/L 9.525 3.18 1504WR/L 15.875 4.76 1905WR/L 19.05 5.56 Machining for Bearing shield SNGN SR/L Type L Type d Li L2 hi h2 Ri R2 a° 3° SNGN 0903SR/L 9.525 3.18 1204SR/L 12.7 4.76 1504SR/L 15.875 4.76 TNGN SR/L Type m d d-J Lu vyv V3 V Detail-A RType J4. > Vv L Type d Li L2 hi h2 Ri R2 a° 3° TNGN 02204SR/L 12.7 4.76 mu Multi functional Tools 63
