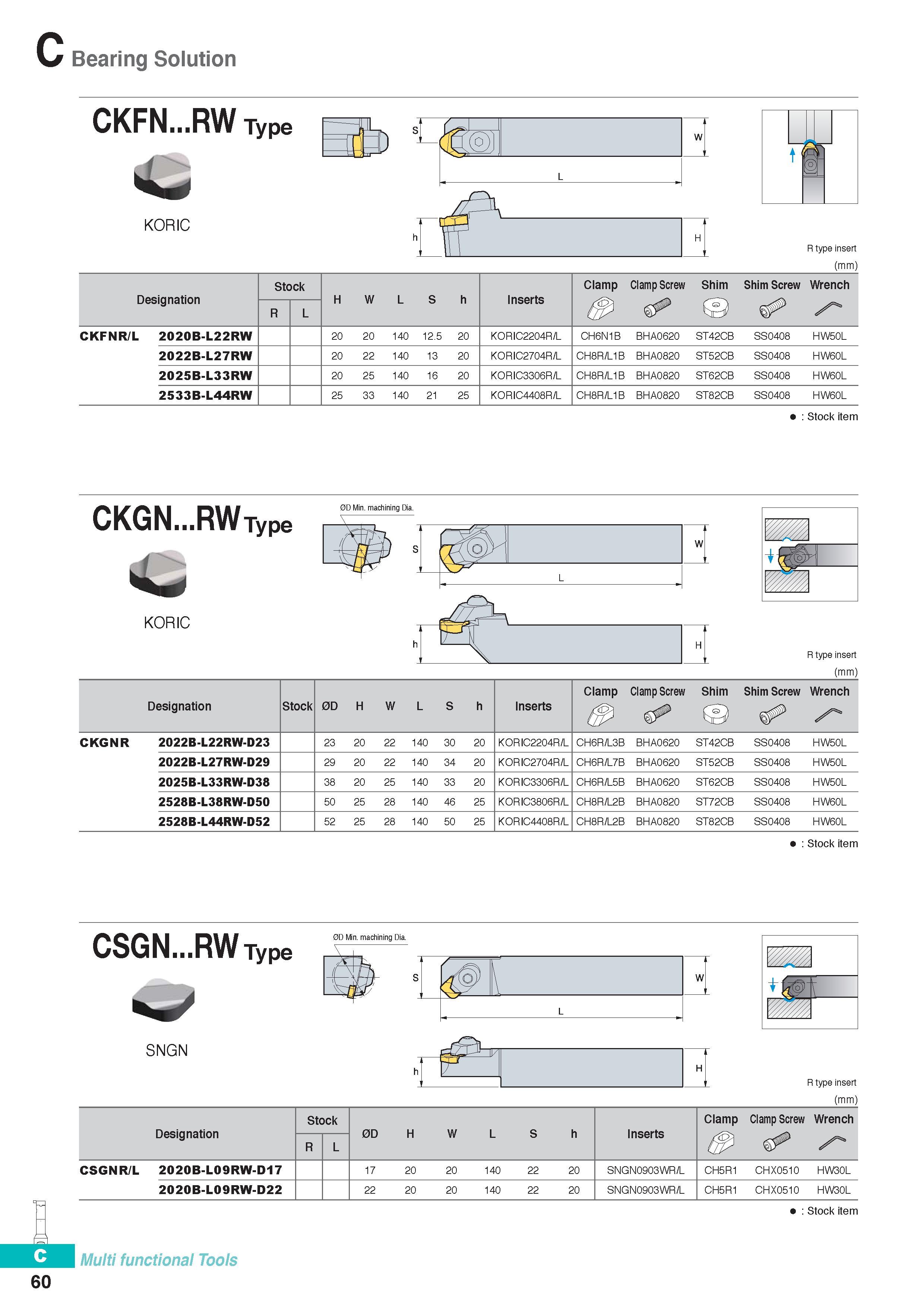

Bearing Solution CKFN RW Type sL fe j, W L KORIC R type insert (mm) Designation Stock H W L S h Inserts Clamp Clamp Screw Shim Shim Screw Wrench R L CKFNR/L 2020B-L22RW 20 20 140 12.5 20 KORIC2204R/L CH6N1B BHA0620 ST42CB SS0408 HW50L 2022B-L27RW 20 22 140 13 20 KORIC2704R/L CH8R/L1B BHA0820 ST52CB SS0408 HW60L 2025B-L33RW 20 25 140 16 20 KORIC3306R/L CH8R/L1B BHA0820 ST62CB SS0408 HW60L 2533B-L44RW 25 33 140 21 25 KORIC44Q8R/L CH8R/L1B BHA0820 ST82CB SS0408 HW60L Stock item CKGN RWiype 0D Min. machining Dia. KORIC R type insert (mm) Designation Stock 0D H W L S h Inserts Clamp Clamp Screw Shim Shim Screw Wrench /' CKGNR 2022B-L22RW-D23 23 20 22 140 30 20 KORIC2204R/L CH6R/L3B BHA0620 ST42CB SS0408 HW50L 2022B-L27RW-D29 29 20 22 140 34 20 KORIC2704R/L CH6R/L7B BHA0620 ST52CB SS0408 HW50L 2025B-L33RW-D38 38 20 25 140 33 20 KORIC3306R/L CH6R/L5B BHA0620 ST62CB SS0408 HW50L 2528B-L38RW-D50 50 25 28 140 46 25 KORIC3806R/L CH8R/L2B BHA0820 ST72CB SS0408 HW60L 2528B-L44RW-D52 52 25 28 140 50 25 KORIC44Q8R/L CH8R/L2B BHA0820 ST82CB SS0408 HW60L Stock item CSGN RW Type 0D Min. machining Dia. t SNGN tLOJ IF a h E_ H i1 R type insert (mm) Designation Stock 0D H W L S h Inserts Clamp Clamp Screw Wrench R L /" CSGNR/L 2020B-L09RW-D17 17 20 20 140 22 20 SNGN0903WR/L CH5R1 CHX0510 HW30L 2020B-L09RW-D22 22 20 20 140 22 20 SNGN0903WR/L CH5R1 CHX0510 HW30L Stock item mm Multi functional Tools 60
