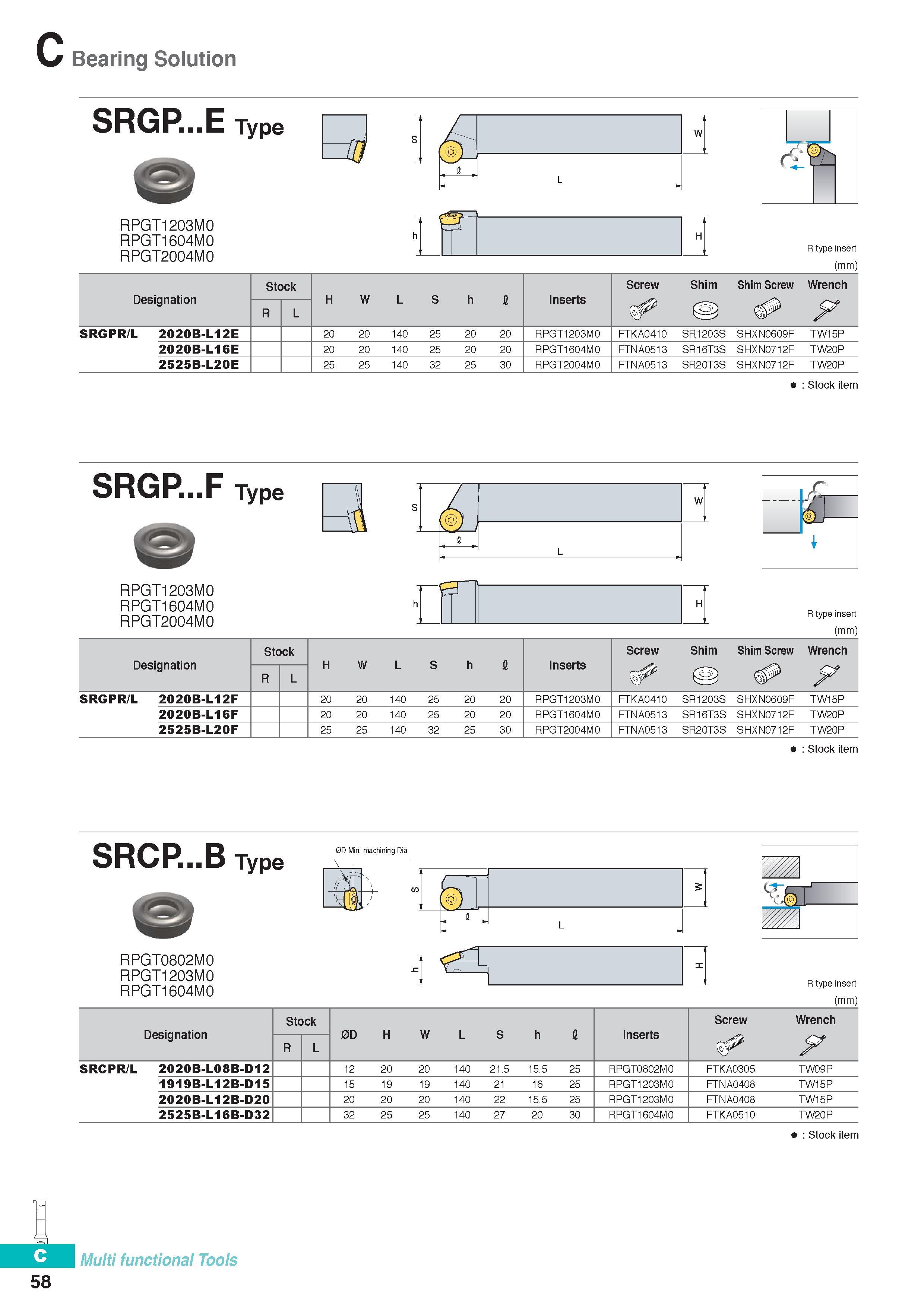

Bearing Solution SRGP E Type RPGT1203M0 RPGT1604M0 RPGT2004M0 (mm) Designation Stock H W L S h I Inserts Screw Shim Shim Screw Wrench R L F SRGPR/L 2020B-L12E 20 20 140 25 20 20 RPGT1203M0 FTKA0410 SR1203S SHXN0609F TW15P 2020B-L16E 20 20 140 25 20 20 RPGT1604M0 FTNA0513 SR16T3S SHXN0712F TW20P 2525B-L20E 25 25 140 32 25 30 RPGT2004M0 FTNA0513 SR20T3S SHXN0712F TW20P Stock item SRGP F Type i, m h W L S in RPGT1203M0 RPGT1604M0 RPGT2004M0 i C i d i H R type insert (mm) Designation Stock H W L S h I Inserts Screw Shim Shim Screw Wrench R L F SRGPR/L 2020B-L12F 20 20 140 25 20 20 RPGT1203M0 FTKA0410 SR1203S SHXN0609F TW15P 2020B-L16F 20 20 140 25 20 20 RPGT1604M0 FTNA0513 SR16T3S SHXN0712F TW20P 2525B-L20F 25 25 140 32 25 30 RPGT2004M0 FTNA0513 SR20T3S SHXN0712F TW20P Stock item SRCP B Type 0D Min. machining Dia. RPGT0802M0 RPGT1203M0 RPGT1604M0 i fe) r c L i R type insert (mm) Designation Stock 0D H W L S h I Inserts Screw Wrench P R L SRCPR/L 2020B-L08B-D12 12 20 20 140 21.5 15.5 25 RPGT0802M0 FTKA0305 TW09P 1919B-L12B-D15 15 19 19 140 21 16 25 RPGT1203M0 FTNA0408 TW15P 2020B-L12B-D20 20 20 20 140 22 15.5 25 RPGT1203M0 FTNA0408 TW15P 2525B-L16B-D32 32 25 25 140 27 20 30 RPGT1604M0 FTKA0510 TW20P Stock item mm Multi functional Tools 58
