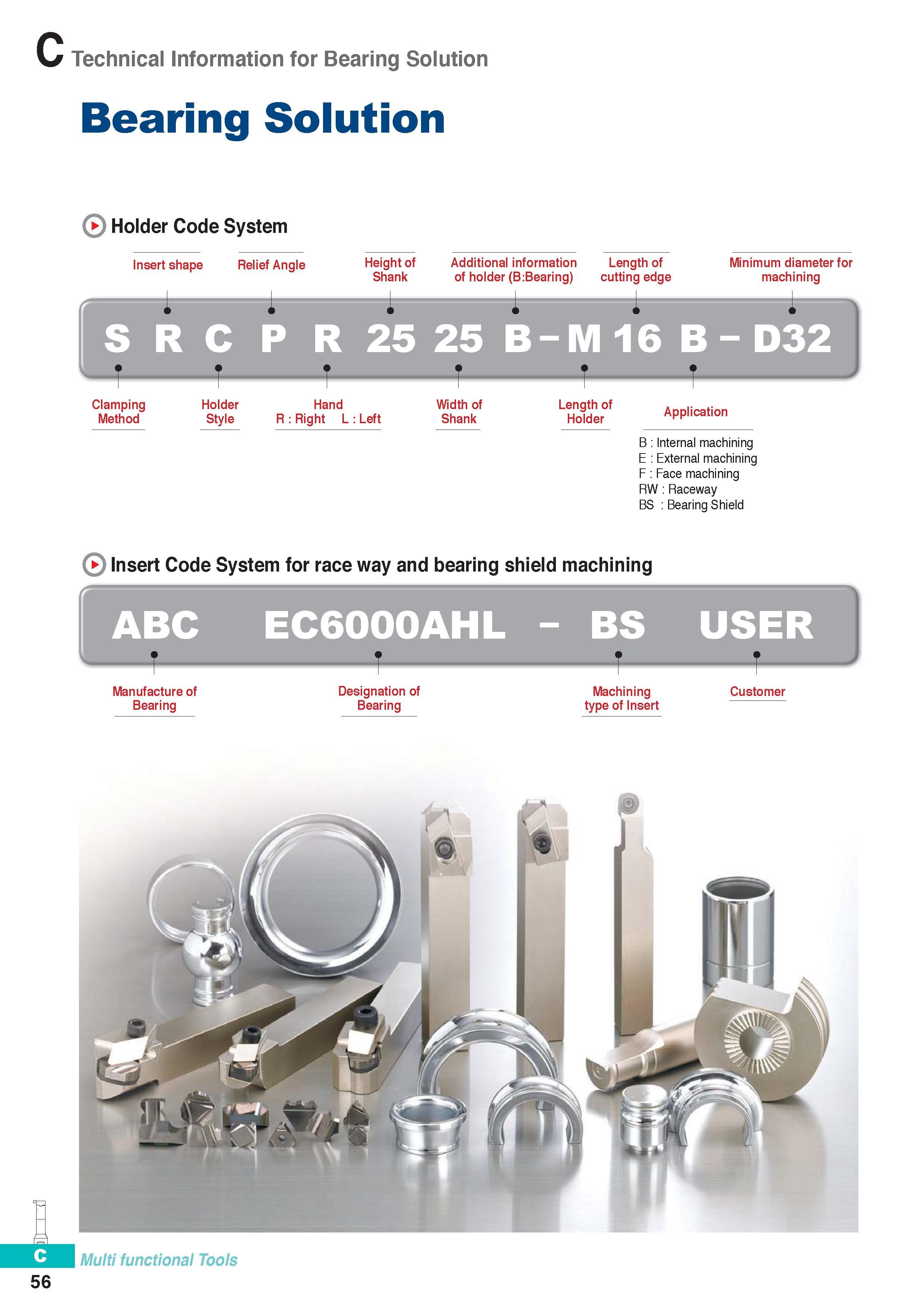

Technical Information for Bearing Solution Bearing Solution Holder Code System Insert shape Relief Angle Height of Additional information Length of Minimum diameter for Shank of holder (B:Bearing) cutting edge machining SRC P R 25 25 B- M 16 B - D32 Clamping Holder Method Style Hand Width of R Right L Left Shank '-Sr Application B Internal machining E External machining F Face machining RW Raceway BS Bearing Shield Insert Code System for race way and bearing shield machining ABC 1 EC6000AHL - BS USER Manufacture of Bearing Designation of Bearing Machining Customer type of Insert C Multi functional Tools 56
