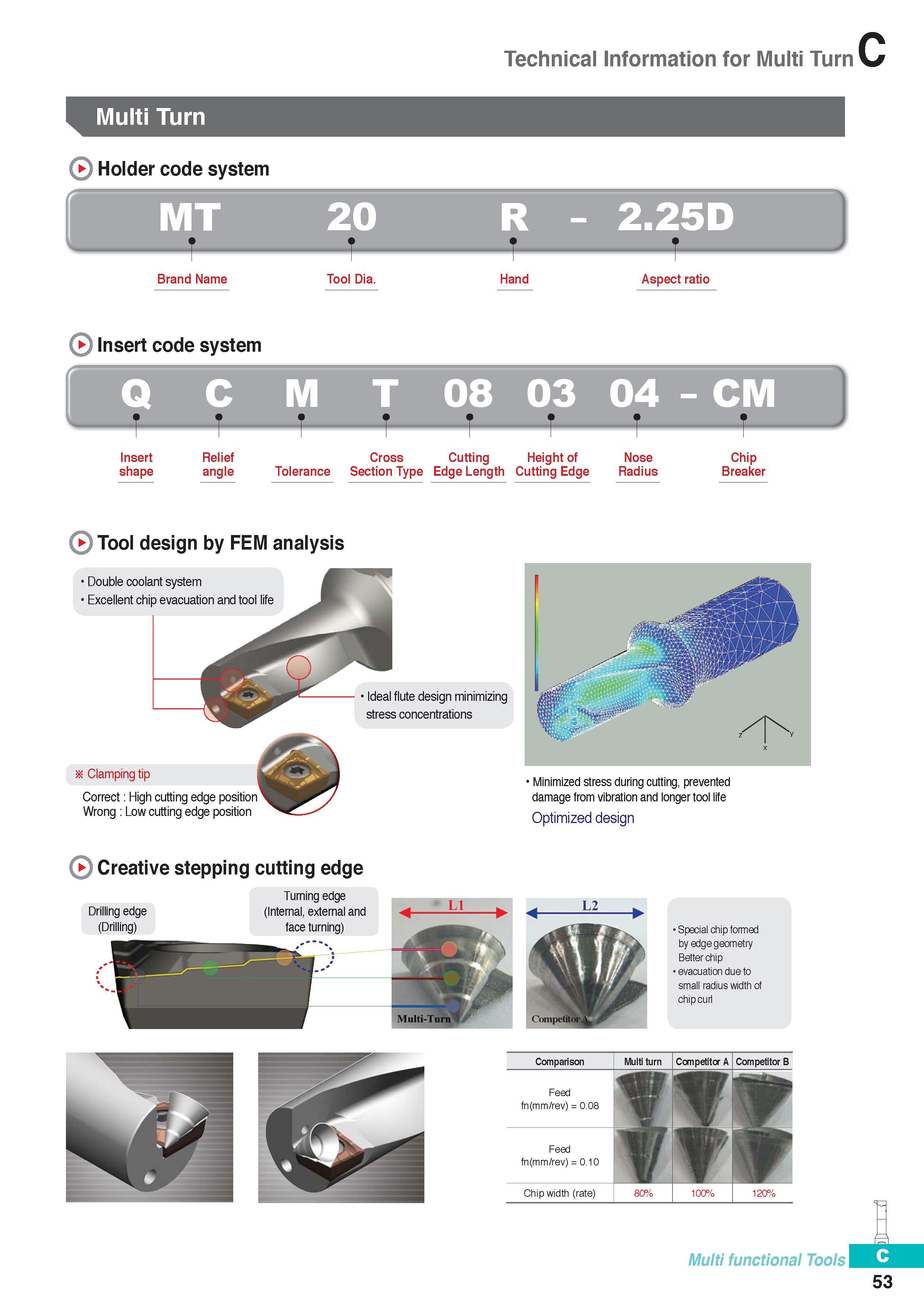

Technical Information for Multi Turn Multi Turn Holder code system \ Brand Name Tool Dia. - 2.25D Hand Aspect ratio Insert code system Q C M T 08 03 04 - CM Insert Relief Cross Cutting Height of Nose shape angle Tolerance Section Type Edge Length Cutting Edge Radius Chip Breaker Tool design by FEM analysis Double coolant system Excellent chip evacuation and tool life Ideal flute design minimizing stress concentrations Clamping tip Correct: High cutting edge position Wrong Low cutting edge position Minimized stress during cutting, prevented damage from vibration and longer tool life Optimized design Creative stepping cutting edge Drilling edge (Drilling) Turning edge (Internal, external and face turning) Special chip formed by edge geometry Better chip evacuation due to small radius width of chip curl Multi functional Tools mm 53
