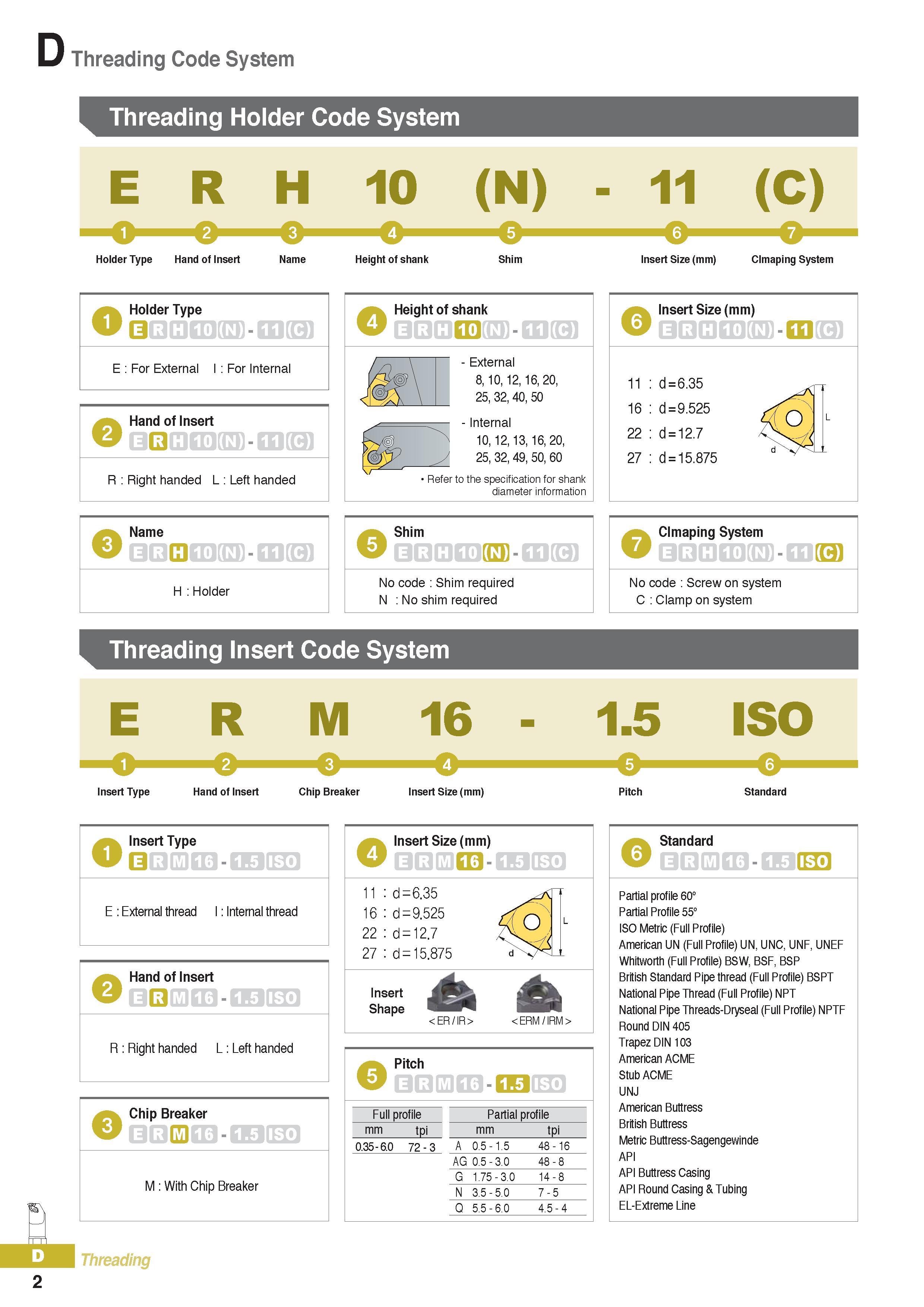

Threading Code System Threading Holder Code System Holder Type Hand of Insert Name Height of shank Shim Insert Size (mm) Clmaping System Holder Type E RlHl10l(N) -fTTHC) E For External I For Internal Hand of Insert E RlHl10l(N) -MrUC) R Right handed L Left handed Name EIR H1101(N) -HiRcT H Holder Height of shank E RlHl10l(N)-r11icT External 8, 10, 12, 16, 20, 25, 32, 40, 50 Internal 10, 12, 13, 16, 20, 25, 32, 49, 50, 60 Refer to the specification for shank diameter information Shim E1RH10I(N) No code Shim required N No shim required Insert Size (mm) E mi H 1qKnH11I(C) 11 d = 6.35 16 d = 9.525 22 d = 12.7 27 d = 15.875 Clmaping System ElRlH 10l(N) 411RcT No code Screw on system C Clamp on system Threading Insert Code System Insert Type Hand of Insert Chip Breaker Insert Size (mm) Pitch Standard O Insert Type RlMMS - "IIISO E External thread I Internal thread Hand of Insert R Right handed L Left handed Chip Breaker M With Chip Breaker Threading 2 Insert Size (mm) ErTiM16 - Is 11 iso 16 22 27 d=6.35 d = 9.525 zfo; d = 12.7 d = 15.875 d _L Insert Shape 4h A ER / IR > ERM / IRM > Pitch ERlMl16 - 1.5 lSO Full profile Partial profile mm tpi mm tpi 0.35 - 6.0 72 - 3 A 0.5 - 1.5 AG 0.5 - 3.0 48 - 16 48 - 8 G 1.75 - 3.0 14 - 8 N 3.5 - 5.0 7 - 5 Q 5.5 - 6.0 4.5 - 4 Standard E rImI16 - 1.5 lSO Partial profile 60° Partial Profile 55° ISO Metric (Full Profile) American UN (Full Profile) UN, UNC, UNF, UNEF Whitworth (Full Profile) BSW, BSF, BSP British Standard Pipe thread (Full Profile) BSPT National Pipe Thread (Full Profile) NPT National Pipe Threads-Dryseal (Full Profile) NPTF Round DIN 405 Trapez DIN 103 American ACME Stub ACME UNJ American Buttress British Buttress Metric Buttress-Sagengewinde API API Buttress Casing API Round Casing & Tubing EL-Extreme Line
