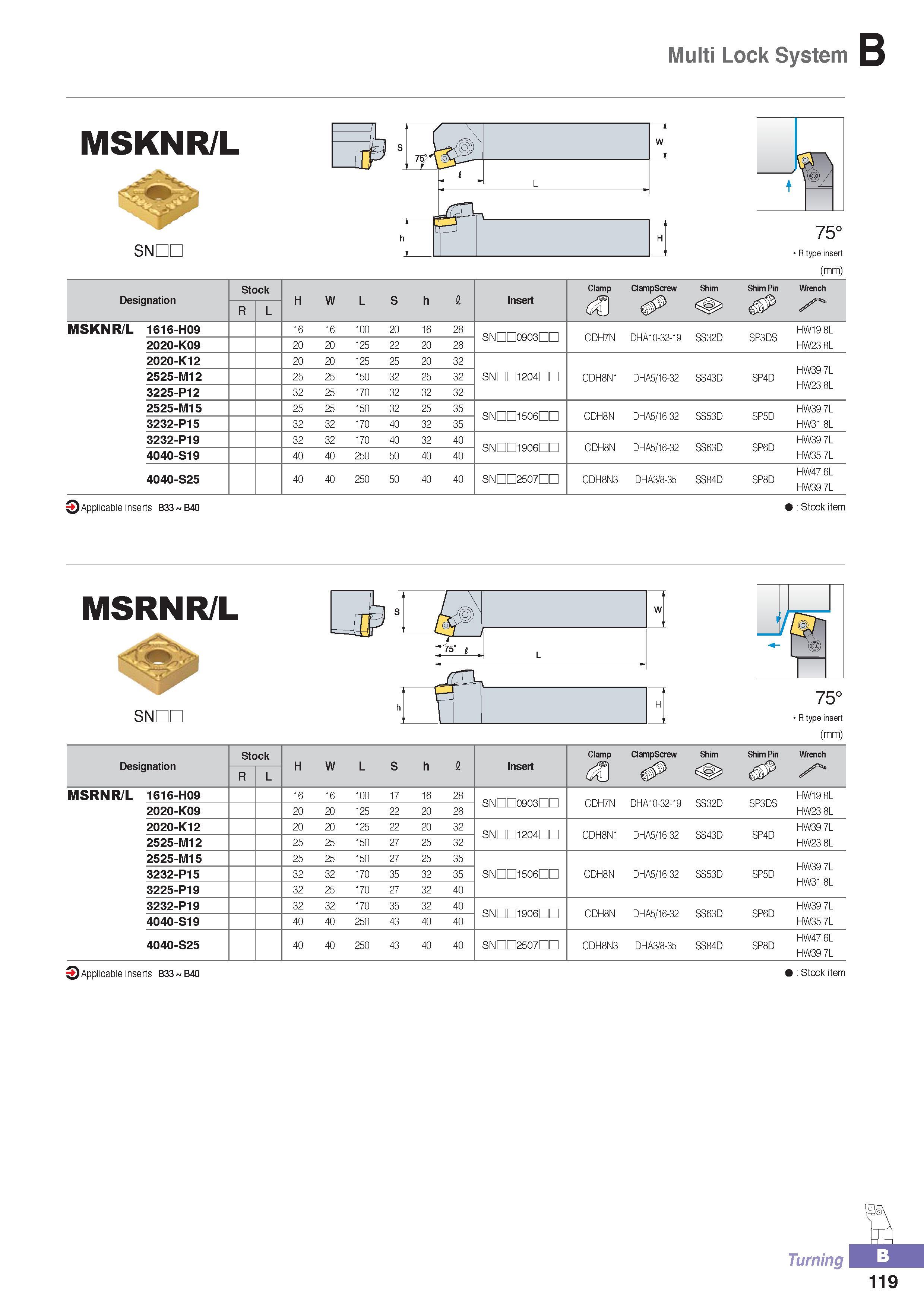

Multi Lock System MSKNR/L SNDC f) 75° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L (nD y MSKNR/L 1616-H09 16 16 100 20 16 28 SNDD0903nn CDH7N DHA10-32-19 SS32D SP3DS HW19.8L 2020-K09 20 20 125 22 20 28 HW23.8L 2020-K12 20 20 125 25 20 32 HW39.7L HW23.8L 2525-M12 25 25 150 32 25 32 SNnni204nn CDH8N- DHA5/16-32 SS43D SP4D 3225-P12 32 25 170 32 32 32 2525-M15 25 25 150 32 25 35 SNnni506nn CDH8N DHA5/16-32 SS53D SP5D HW39.7L 3232-P15 32 32 170 40 32 35 HW31.8L 3232-P19 32 32 170 40 32 40 SNDDl906nn CDH8N DHA5/16-32 SS63D SP6D HW39.7L 4040-S19 40 40 250 50 40 40 HW35.7L 4040-S25 40 40 250 50 40 40 S D2507Dn CDH8N3 DHA3/8-35 SS84D SP8D HW47.6L HW39.7L OApplicable inserts B33 B40 Stock item MSRNR/L SNdlZ R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MSRNR/L 1616-H09 16 16 100 17 16 28 SNDD0903nn CDH7N DHA10-32-19 SS32D SP3DS HW19.8L 2020-K09 20 20 125 22 20 28 HW23.8L 2020-K12 20 20 125 22 20 32 SNnni204nn CDH8N- DHA5/16-32 SS43D SP4D HW39.7L 2525-M12 25 25 150 27 25 32 HW23.8L 2525-M15 25 25 150 27 25 35 HW39.7L HW31.8L 3232-P15 32 32 170 35 32 35 SNnni506nn CDH8N DHA5/16-32 SS53D SP5D 3225-P19 32 25 170 27 32 40 3232-P19 32 32 170 35 32 40 SNnni906nn CDH8N DHA5/16-32 SS63D SP6D HW39.7L 4040-S19 40 40 250 43 40 40 HW35.7L 4040-S25 40 40 250 43 40 40 SNDD2507nn CDH8N3 DHA3/8-35 SS84D SP8D HW47.6L HW39.7L OApplicable inserts B33 B40 Stock item Turning Jm 119
