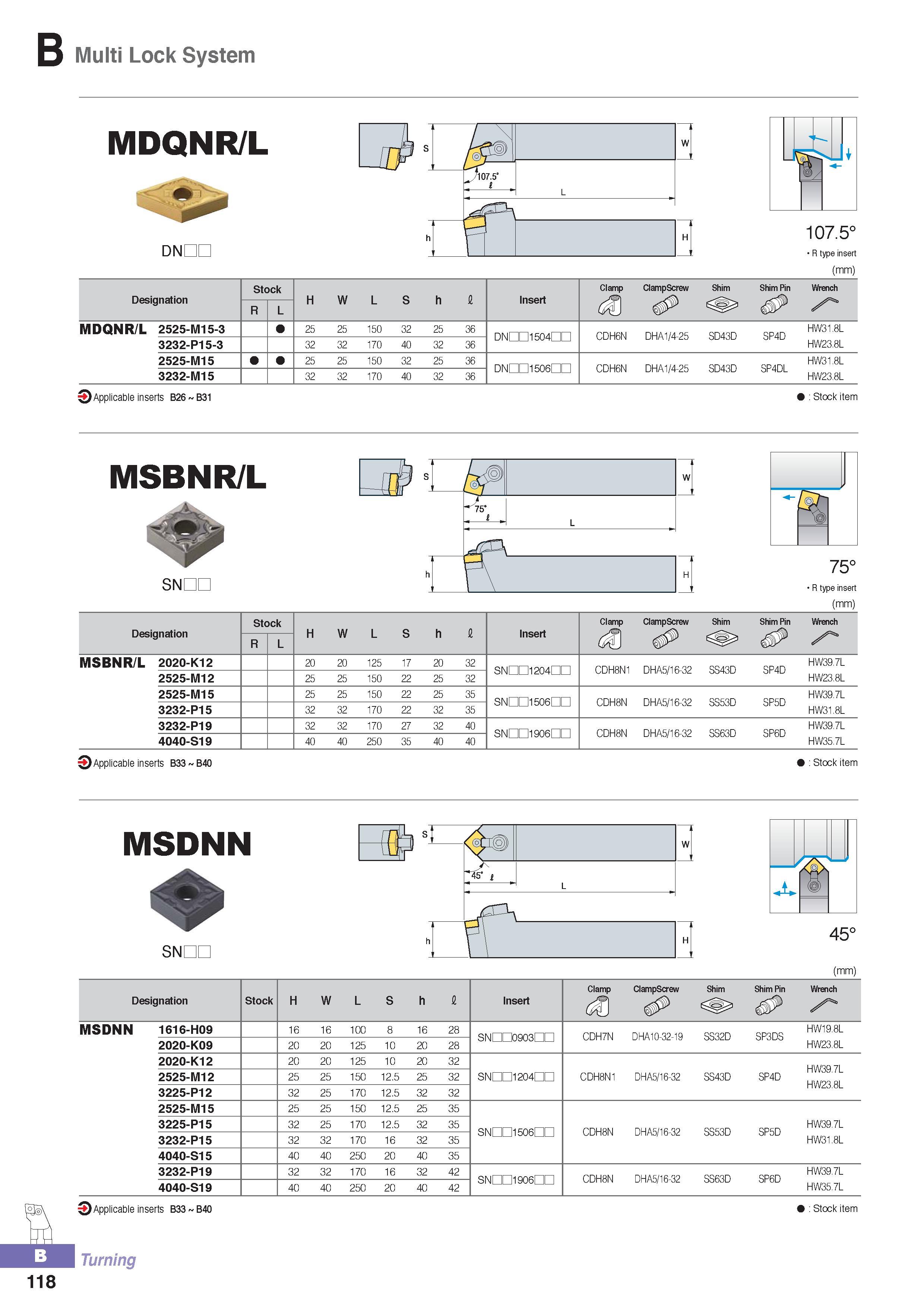

Multi Lock System MDQNR/L DNDC s 107.5° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MDQNR/L 2525-M15-3 25 25 150 32 25 36 DN 15041m CDH6N DHA1/4-25 SD43D SP4D HW31.8L 3232-P15-3 32 32 170 40 32 36 HW23.8L 2525-M15 25 25 150 32 25 36 DNm1506m CDH6N DHA1/4-25 SD43D SP4DL HW31.8L 3232-M15 32 32 170 40 32 36 HW23.8L 0APPlicable inserts B26 B31 Stock item MSBNR/L SNDC 75° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MSBNR/L 2020-K12 20 20 125 17 20 32 SNm1204m CDH8N- DHA5/16-32 SS43D SP4D HW39.7L 2525-M12 25 25 150 22 25 32 HW23.8L 2525-M15 25 25 150 22 25 35 SNDQ506m CDH8N DHA5/16-32 SS53D SP5D HW39.7L 3232-P15 32 32 170 22 32 35 HW31.8L 3232-P19 32 32 170 27 32 40 SNm1906m CDH8N DHA5/16-32 SS63D SP6D HW39.7L 4040-S19 40 40 250 35 40 40 HW35.7L 0APPlicable inserts B33 B40 Stock item MSDNN SNdlZ ml 45° (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench eSgJs & MSDNN 1616-H09 16 16 100 8 16 28 SNm0903m CDH7N DHA10-32-19 SS32D SP3DS HW19.8L 2020-K09 20 20 125 10 20 28 HW23.8L 2020-K12 20 20 125 10 20 32 HW39.7L HW23.8L 2525-M12 25 25 150 12.5 25 32 SNm1204m CDH8N- DHA5/16-32 SS43D SP4D 3225-P12 32 25 170 12.5 32 32 2525-M15 25 25 150 12.5 25 35 3225-P15 32 25 170 12.5 32 35 SNm1506m CDH8N DHA5/16-32 SS53D SP5D HW39.7L 3232-P15 32 32 170 16 32 35 HW31.8L 4040-S15 40 40 250 20 40 35 3232-P19 32 32 170 16 32 42 SNm1906m CDH8N DHA5/16-32 SS63D SP6D HW39.7L 4040-S19 40 40 250 20 40 42 HW35.7L O APPlicable inserts B33 B40 Turning Stock item 118
