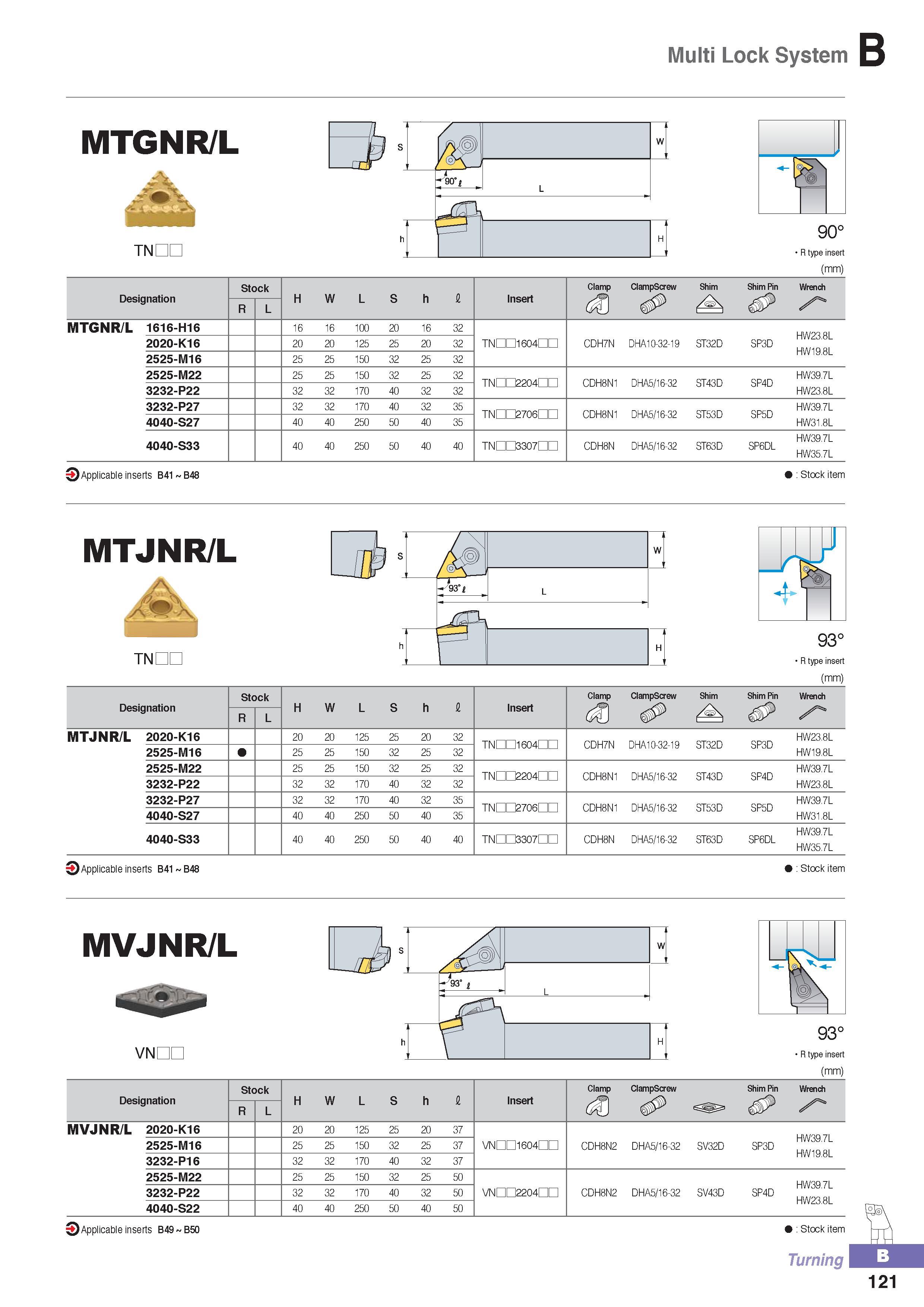

Multi Lock System MTGNR/L TNDC 90° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MTGNR/L 1616-H16 16 16 100 20 16 32 HW23.8L HW19.8L 2020-K16 20 20 125 25 20 32 TNDD1604nn CDH7N DHA10-32-19 ST32D SP3D 2525-M16 25 25 150 32 25 32 2525-M22 25 25 150 32 25 32 TNDD2204nn CDH8N- DHA5/16-32 ST43D SP4D HW39.7L 3232-P22 32 32 170 40 32 32 HW23.8L 3232-P27 32 32 170 40 32 35 TNDD2706nn CDH8N- DHA5/16-32 ST53D SP5D HW39.7L 4040-S27 40 40 250 50 40 35 HW31.8L 4040-S33 40 40 250 50 40 40 T D3307Dn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L OAPPlicable inserts B41 B48 Stock item MTJNR/L TNDC R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MTJNR/L 2020-K16 20 20 125 25 20 32 TNDD1604nn CDH7N DHA10-32-19 ST32D SP3D HW23.8L 2525-M16 25 25 150 32 25 32 HW19.8L 2525-M22 25 25 150 32 25 32 TN 2204IZO CDH8N- DHA5/16-32 ST43D SP4D HW39.7L 3232-P22 32 32 170 40 32 32 HW23.8L 3232-P27 32 32 170 40 32 35 TNDD2706nn CDH8N- DHA5/16-32 ST53D SP5D HW39.7L 4040-S27 40 40 250 50 40 35 HW31.8L 4040-S33 40 40 250 50 40 40 TNDD3307nn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L OAPPlicable inserts B41 B48 Stock item MVJNR/L VNDC R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Pin Wrench R L (id MVJNR/L 2020-K16 20 20 125 25 20 37 HW39.7L HW19.8L 2525-M16 25 25 150 32 25 37 vNDD1604nn CDH8N2 DHA5/16-32 SV32D SP3D 3232-P16 32 32 170 40 32 37 2525-M22 25 25 150 32 25 50 HW39.7L HW23.8L 3232-P22 32 32 170 40 32 50 VNDD2204nn CDH8N2 DHA5/16-32 SV43D SP4D 4040-S22 40 40 250 50 40 50 OAPPlicable inserts B49 B50 Stock item Turning 121
