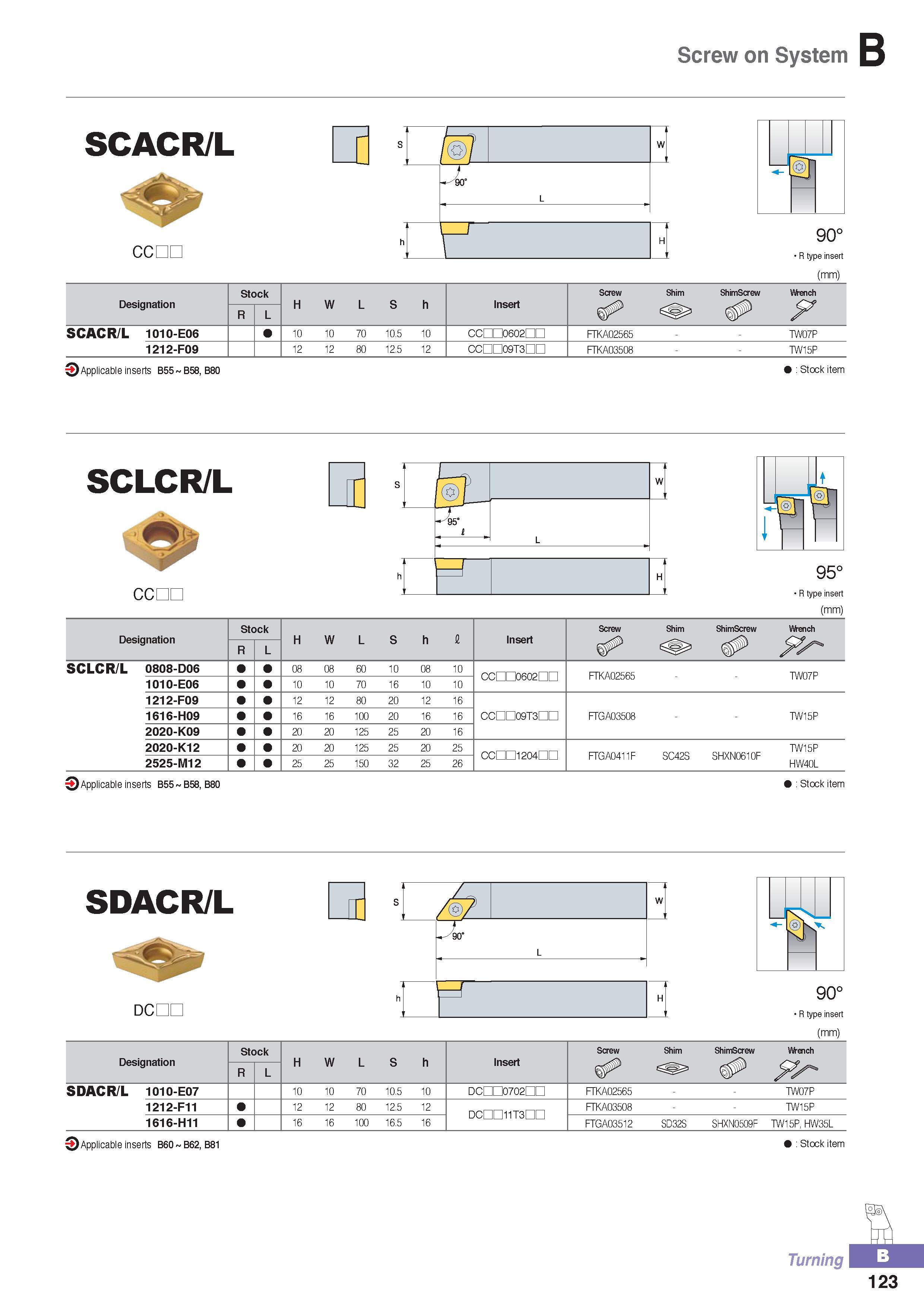

Screw on System SCACR/L CCDC 90° R type insert (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench R L 0 y SCACR/L 1010-E06 10 10 70 10.5 10 CCnn0602nn FTKA02565 TW07P 1212-F09 12 12 80 12.5 12 CCDD09T3nn FTKA03508 TW15P 0APPiicabie inserts B55 B58, B80 Stock item SCLCR/L CCDC 95° R type insert (mm) 0APPiicabie inserts B55 B58, B80 Stock item SDACR/L IT DCDC 90° R type insert (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench R L :=S=i= s gr SDACR/L 1010-E07 10 10 70 10.5 10 DCDD0702nn FTKA02565 TW07P 1212-F11 12 12 80 12.5 12 DCDDiiT3nn FTKA03508 TW15P 1616-H11 16 16 100 16.5 16 FTGA03512 SD32S SHXN0509F TW15P, HW35L 0APPiicabie inserts B60 B62, B81 Stock item Turning J. 123
