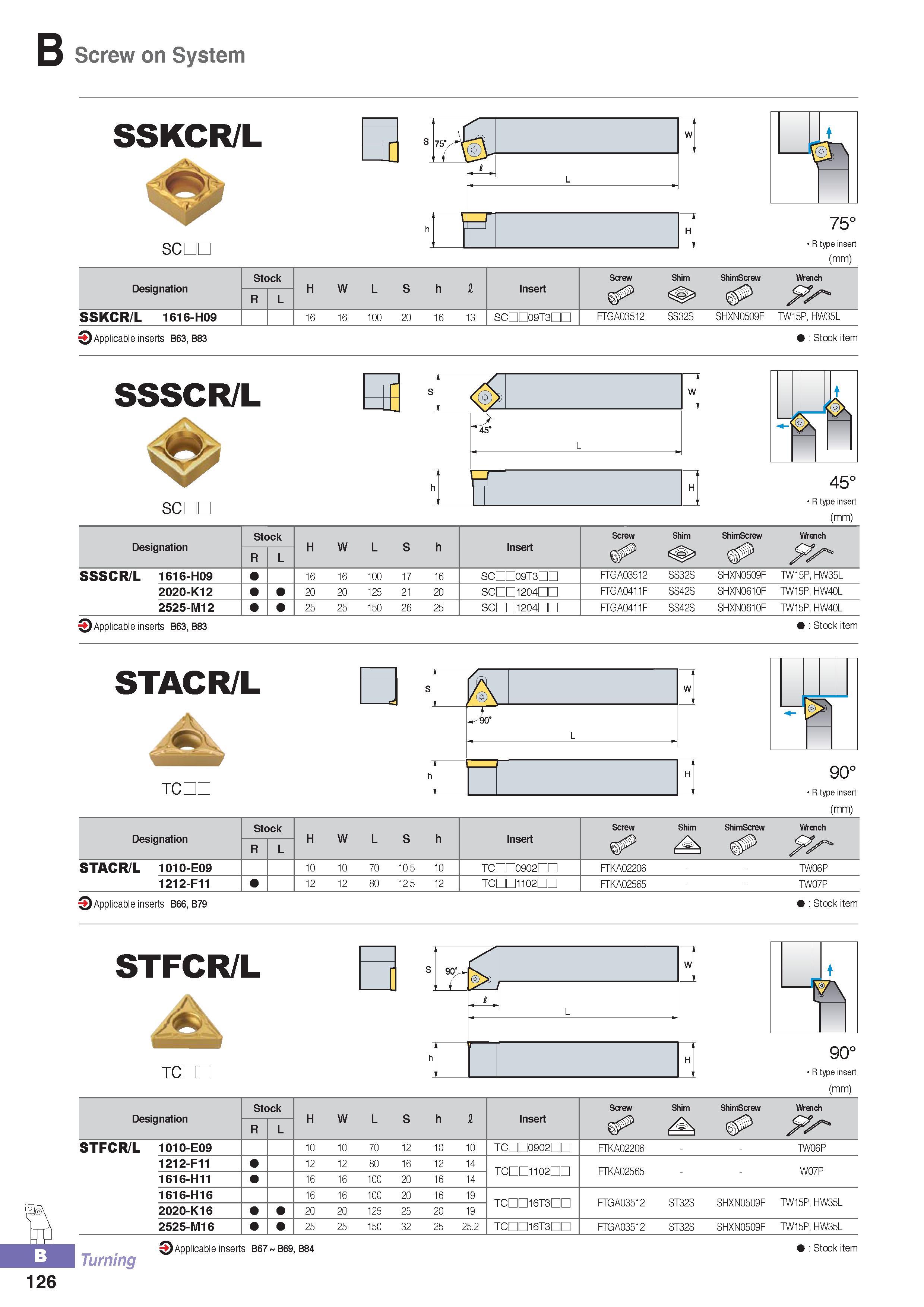

Screw on System SCDC R type insert (mm) Designation Stock H W L S h i Insert Screw Shim ShimScrew Wrench R L SSKCR/L 1616-H09 16 16 100 20 16 13 SCnn09T3nn FTGA03512 SS32S SHXN0509F TW15P, HW35L OAPPiicabie inserts B63, B83 Stock item SSSCR/L SCDC 45° R type insert (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench R L g SSSCR/L 1616-H09 16 16 100 17 16 SCnn09T3nn FTGA03512 SS32S SHXN0509F TW15P, HW35L 2020-K12 20 20 125 21 20 SCnni204nn FTGA0411F SS42S SHXN0610F TW15P, HW40L 2525-M12 25 25 150 26 25 S ni204nn FTGA0411F SS42S SHXN0610F TW15P, HW40L OAPPiicabie inserts B63, B83 Stock item STACR/L TCDC m 90° R type insert (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench R L STACR/L 1010-E09 10 10 70 10.5 10 TCnn0902nn FTKA02206 TW06P 1212-F11 12 12 80 12.5 12 TCnnii02nn FTKA02565 TW07P OAPPiicabie inserts B66, B79 Stock item STFCR/L TCDC 90° R type insert (mm) Designation Stock H W L S h fi Insert Screw Shim ShimScrew Wrench R L 1 STFCR/L 1010-E09 10 10 70 12 10 10 TCDD0902nn FTKA02206 TW06P 1212-F11 12 12 80 16 12 14 TCnnii02nn FTKA02565 W07F 1616-H11 16 16 100 20 16 14 1616-H16 16 16 100 20 16 19 TCE06T3IIO FTGA03512 ST32S SHXN0509F TW15P, HW35L 2020-K16 20 20 125 25 20 19 2525-M16 25 25 150 32 25 25.2 Tmni6T3nn FTGA03512 ST32S SHXN0509F TW15P, HW35L Turning OAPPiicabie inserts B67 B69, B84 Stock item 126
