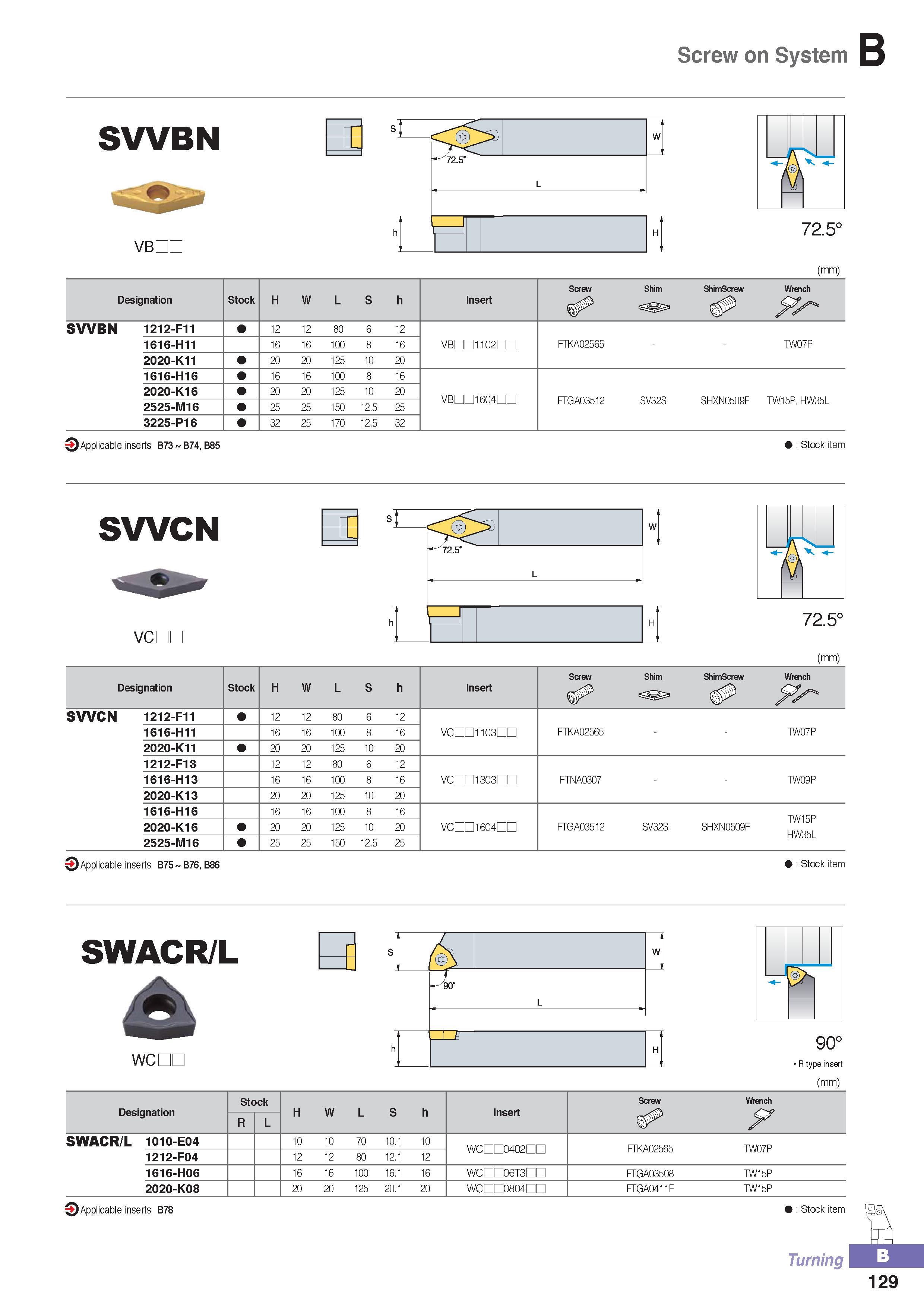

Screw on System SVVBN VBDC 72.5° (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench jpy SVVBN 1212-F11 12 12 80 6 12 1616-H11 16 16 100 8 16 vBnn1102nn FTKA02565 TW07P 2020-K11 20 20 125 10 20 1616-H16 16 16 100 8 16 2020-K16 20 20 125 10 20 VBDD1604nn FTGA03512 SV32S SHXN0509F TW15P, HW35L 2525-M16 25 25 150 12.5 25 3225-P16 32 25 170 12.5 32 OAPPiicabie inserts B73 B74, B85 Stock item SVVCN VCDC T 72.5° (mm) Designation Stock H W L S h Insert Screw Shim ShimScrew Wrench S Ss3 jpy SVVCN 1212-F11 12 12 80 6 12 1616-H11 16 16 100 8 16 vCDD1103nn FTKA02565 TW07P 2020-K11 20 20 125 10 20 1212-F13 12 12 80 6 12 1616-H13 16 16 100 8 16 vCDD1303nn FTNA0307 TW09P 2020-K13 20 20 125 10 20 1616-H16 16 16 100 8 16 TW15P HW35L 2020-K16 20 20 125 10 20 vCDD1604nn FTGA03512 Sv32S SHXN0509F 2525-M16 25 25 150 12.5 25 OAPPiicabie inserts B75 B76, B86 Stock item SWACR/L WCDC 90° R type insert (mm) Designation Stock H W L S h Insert Screw Wrench R L y SWACR/L 1010-E04 10 10 70 10.1 10 WCDD0402nn FTKA02565 TW07P 1212-F04 12 12 80 12.1 12 1616-H06 16 16 100 16.1 16 wCDD06T3nn FTGA03508 TW15P 2020-K08 20 20 125 20.1 20 WCDD0804nn FTGA0411F TW15P OAPPiicabie inserts B78 Stock item Turning 129
