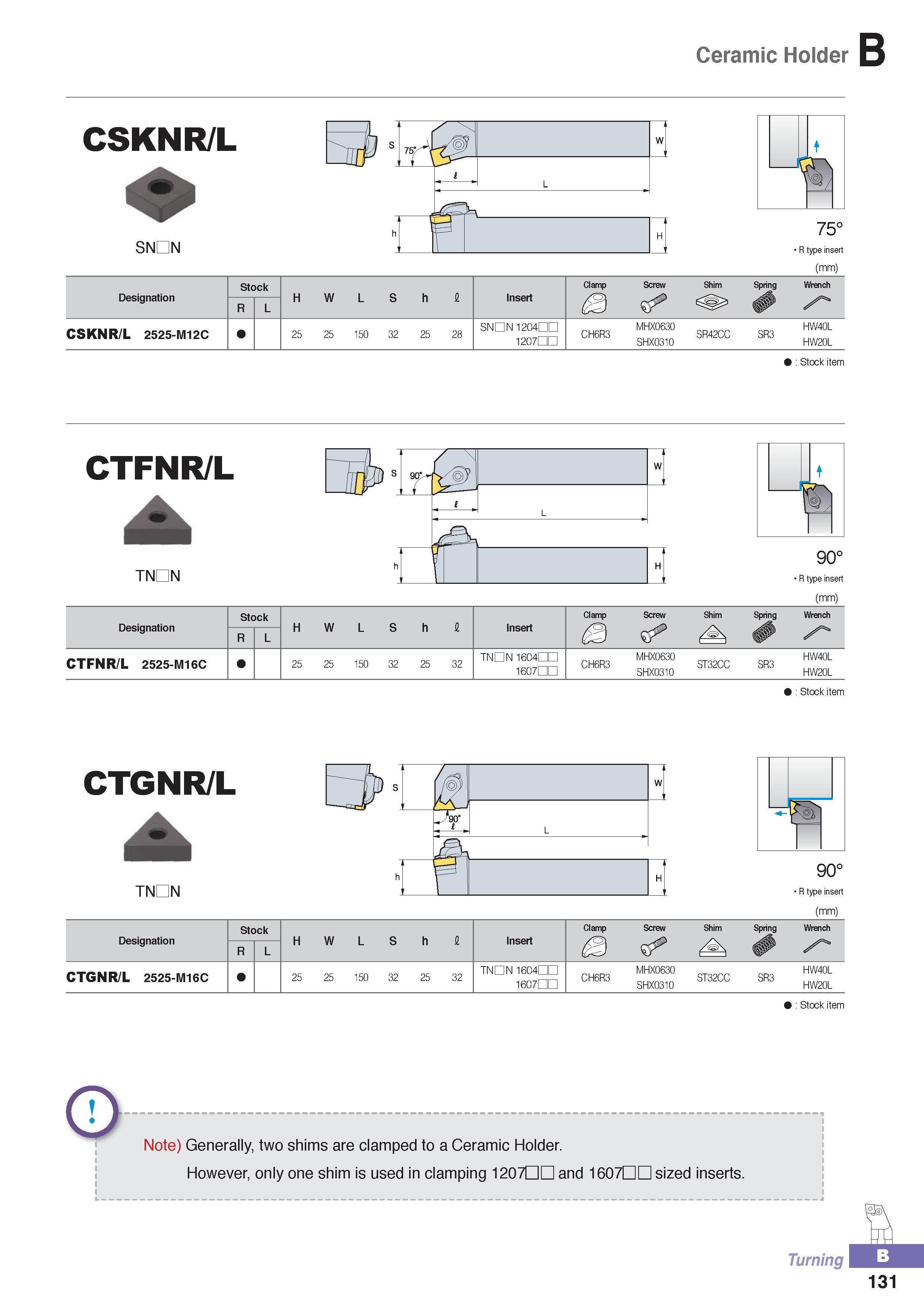

Ceramic Holder CSKNR/L SNDN 75° R type insert (mm) Designation Stock H W L S h i Insert Clamp 3 Screw Shim Spring Wrench R L CSKNR/L 2525-M12C 25 25 150 32 25 28 SNDN 1204DD 1207DD CH6R3 MHX0630 SHX0310 SR42CC SR3 HW40L HW20L Stock item CTFNR/L TNDN R type insert (mm) Designation Stock H W L S h Insert Clamp Screw Shim 0 Spring Wrench R L CTFNR/L 2525-M16C 25 25 150 32 25 32 TNDN 1604nn 1607nn CH6R3 MHX0630 ST32CC SHX0310 HW40L 3 HW20L Stock item CTGNR/L TNDN 90° R type insert (mm) Designation Stock H W L S h i Insert Clamp Screw Shim Spring Wrench R L & CTGNR/L 2525-M16C 25 25 150 32 25 32 tndn 1604nn 1607nn CH6R3 MHX0630 SHX0310 ST32CC SR3 HW40L HW20L Stock item Note) Generally, two shims are clamPed to a Ceramic Holder. However, only one shim is used in clamPing 120tO and 1607EO sized inserts. Turning 131
