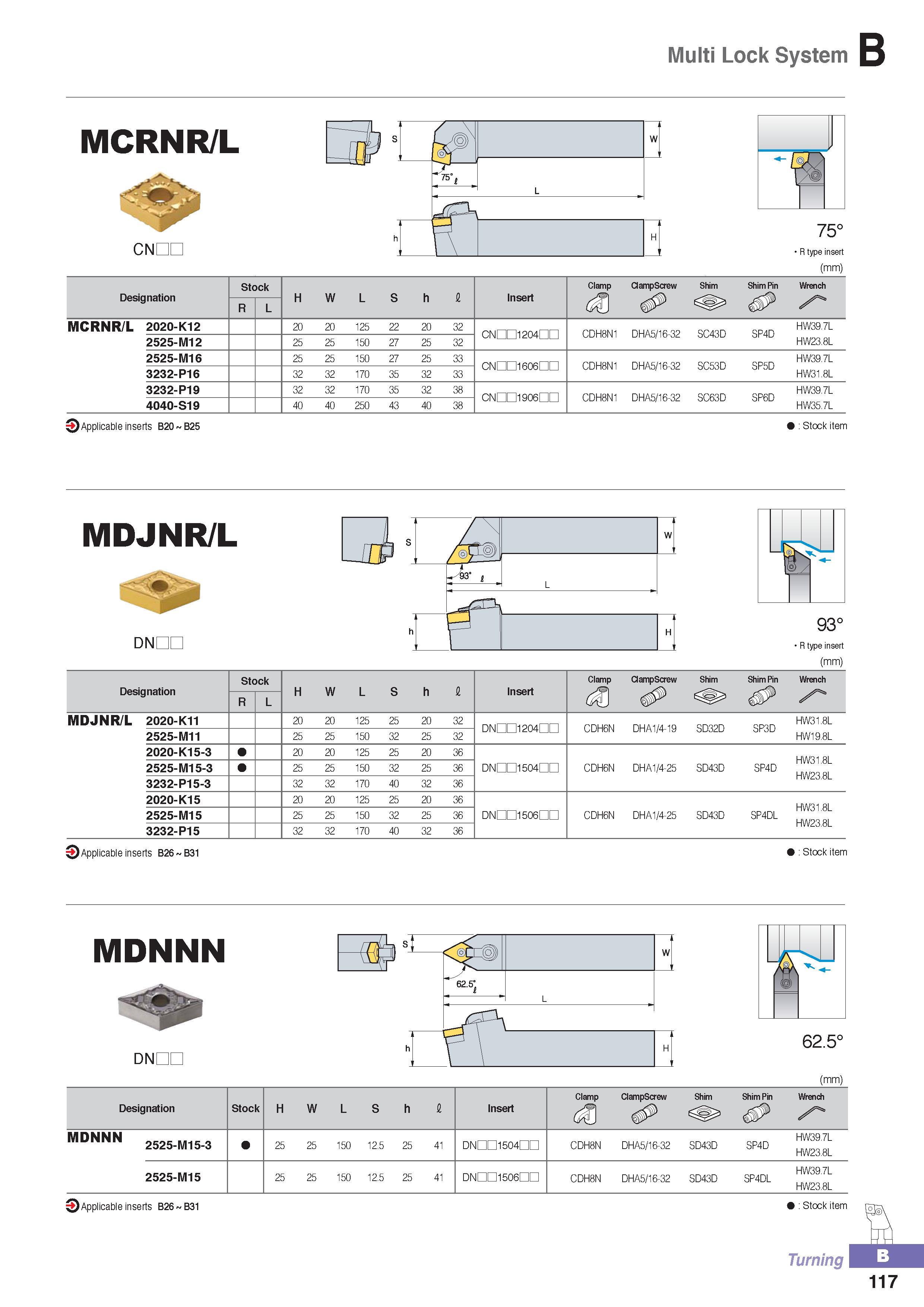

Multi Lock System MCRNR/L CNDC 75° R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MCRNR/L 2020-K12 20 20 125 22 20 32 cNnni204nn CDH8N- DHA5/16-32 SC43D SP4D HW39.7L 2525-M12 25 25 150 27 25 32 HW23.8L 2525-M16 25 25 150 27 25 33 CNDDl606nn CDH8N- DHA5/16-32 SC53D SP5D HW39.7L 3232-P16 32 32 170 35 32 33 HW31.8L 3232-P19 32 32 170 35 32 38 cNnni906nn CDH8N- DHA5/16-32 SC63D SP6D HW39.7L 4040-S19 40 40 250 43 40 38 HW35.7L Applicable inserts B20 B25 Stock item MDJNR/L DNDC R type insert (mm) Designation Stock H W L S h fi Insert Clamp ClampScrew Shim Shim Pin Wrench R L MDJNR/L 2020-K11 20 20 125 25 20 32 DNDDl204nn CDH6N DHA1/4-19 SD32D SP3D HW31.8L 2525-M11 25 25 150 32 25 32 HW19.8L 2020-K15-3 20 20 125 25 20 36 HW31.8L HW23.8L 2525-M15-3 25 25 150 32 25 36 DNDDl504nn CDH6N DHA1/4-25 SD43D SP4D 3232-P15-3 32 32 170 40 32 36 2020-K15 20 20 125 25 20 36 HW31.8L HW23.8L 2525-M15 25 25 150 32 25 36 DNDDl506nn CDH6N DHA1/4-25 SD43D SP4DL 3232-P15 32 32 170 40 32 36 OApplicable inserts B26 B31 Stock item MDNNN DNDC I_ 62.5° (mm) Designation Stock H W L S h a Insert Clamp ClampScrew Shim Shim Pin Wrench gCggS /' MDNNN 2525-M15-3 25 25 150 12.5 25 41 DNDDl504nn CDH8N DHA5/16-32 SD43D SP4D HW39.7L HW23.8L 2525-M15 25 25 150 12.5 25 41 DNnni506nn CDH8N DHA5/16-32 SD43D SP4DL HW39.7L HW23.8L OApplicable inserts B26 B31 Stock item Turning 117
