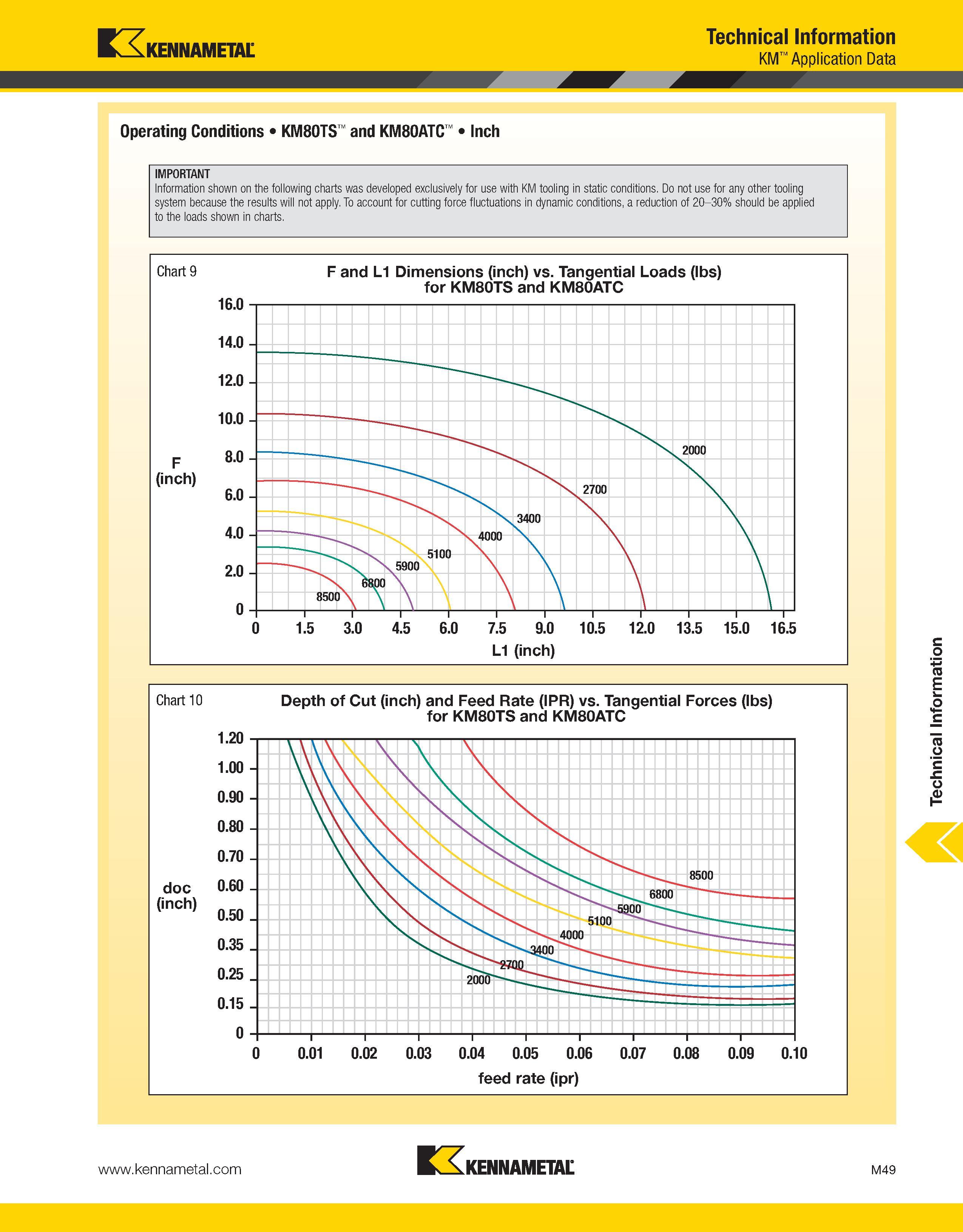

Kennametal Technical Information KM Application Data Operating Conditions KM80TS and KM80ATC Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling in static conditions. Do not use for any other tooling system because the results will not apply. To account for cutting force fluctuations in dynamic conditions, a reduction of 20-30% should be applied to the loads shown in charts. Chart 10 doc (inch) Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM80TS and KM80ATC feed rate (ipr) n, KENNAMETAL M49 Technical Information
