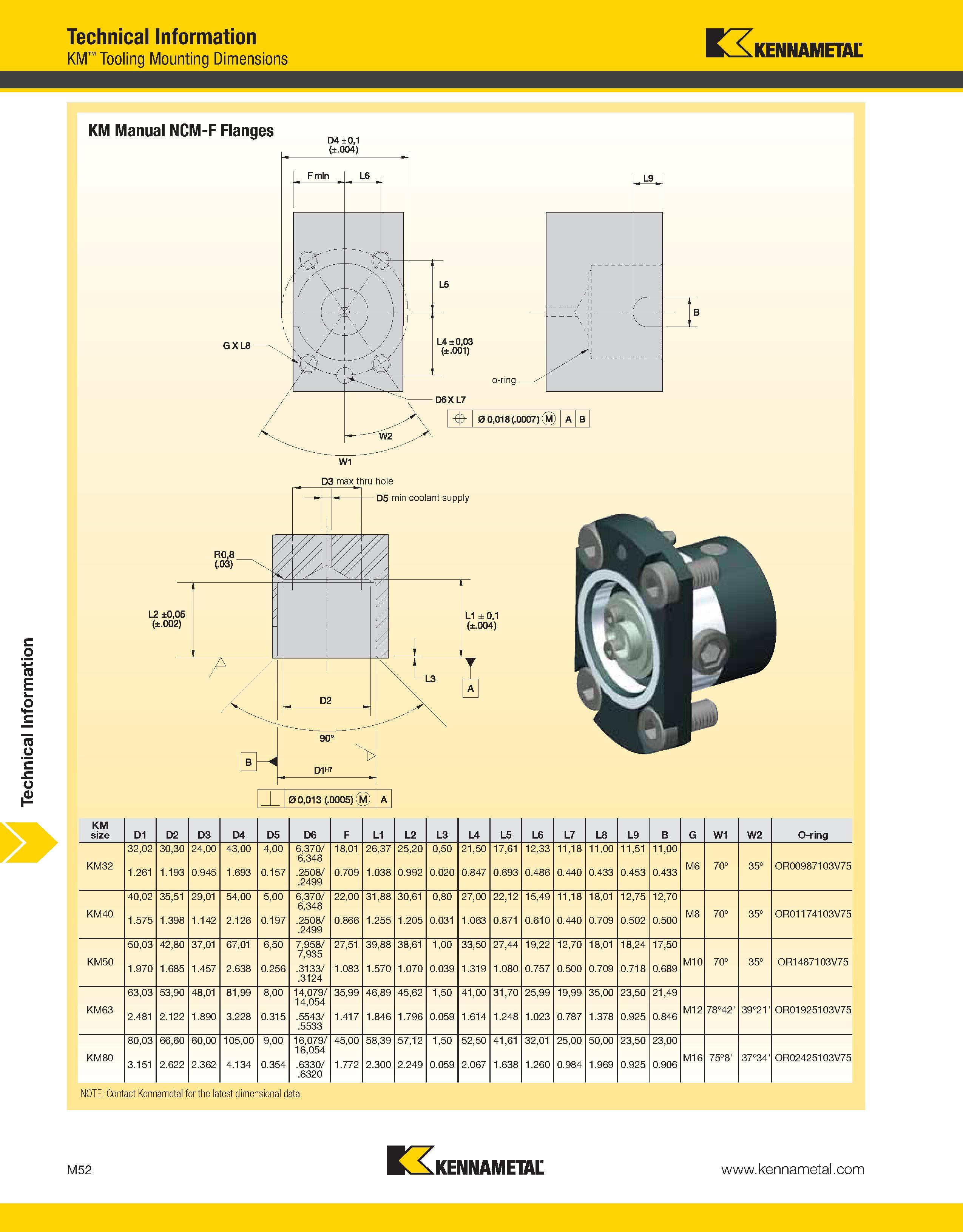

Technical Information Technical Information KM Tooling Mounting Dimensions Kennametal KM Manual NCM-F Flanges D4 ±0,1 L2 ±0,05 (±.002) D3 max thru hole D5 min coolant supply 90° D1H7 00,013 (.0005) (M) A KM size D1 D2 D3 D4 D5 D6 F L1 L2 L3 L4 L5 L6 L7 L8 L9 B G W1 W2 O-ring KM32 32,02 1.261 30,30 1.193 24,00 0.945 43,00 1.693 4,00 0.157 6,370/ 6,348 .2508/ .2499 18,01 0.709 26,37 1.038 25,20 0.992 0,50 0.020 21,50 0.847 17,61 0.693 12,33 0.486 11,18 0.440 11,00 0.433 11,51 0.453 11,00 0.433 M6 70° 35° 0R00987103V75 KM40 40,02 1.575 35,51 1.398 29,01 1.142 54,00 2.126 5,00 0.197 6,370/ 6,348 .2508/ .2499 22,00 0.866 31,88 1.255 30,61 1.205 0,80 0.031 27,00 1.063 22,12 0.871 15,49 0.610 11,18 0.440 18,01 0.709 12,75 0.502 12,70 0.500 M8 70° 35° 0R01174103V75 KM50 50,03 1.970 42,80 1.685 37,01 1.457 67,01 2.638 6,50 0.256 7,958/ 7,935 .3133/ .3124 27,51 1.083 39,88 1.570 38,61 1.070 1,00 0.039 33,50 1.319 27,44 1.080 19,22 0.757 12,70 0.500 18,01 0.709 18,24 0.718 17,50 0.689 M10 70° 35° 0R1487103V75 KM63 63,03 2.481 53,90 2.122 48,01 1.890 81,99 3.228 8,00 0.315 14,079/ 14,054 .5543/ .5533 35,99 1.417 46,89 1.846 45,62 1.796 1,50 0.059 41,00 1.614 31,70 1.248 25,99 1.023 19,99 0.787 35,00 1.378 23,50 0.925 21,49 0.846 M12 78°42' 39°21' 0R01925103V75 KM80 80,03 3.151 66,60 2.622 60,00 2.362 105,00 4.134 9,00 0.354 16,079/ 16,054 .6330/ .6320 45,00 1.772 58,39 2.300 57,12 2.249 1,50 0.059 52,50 2.067 41,61 1.638 32,01 1.260 25,00 0.984 50,00 1.969 23,50 0.925 23,00 0.906 M16 75°8' 37°34' 0R02425103V75 NOTE: Contact Kennametal for the latest dimensional data. M52 Kennametal
