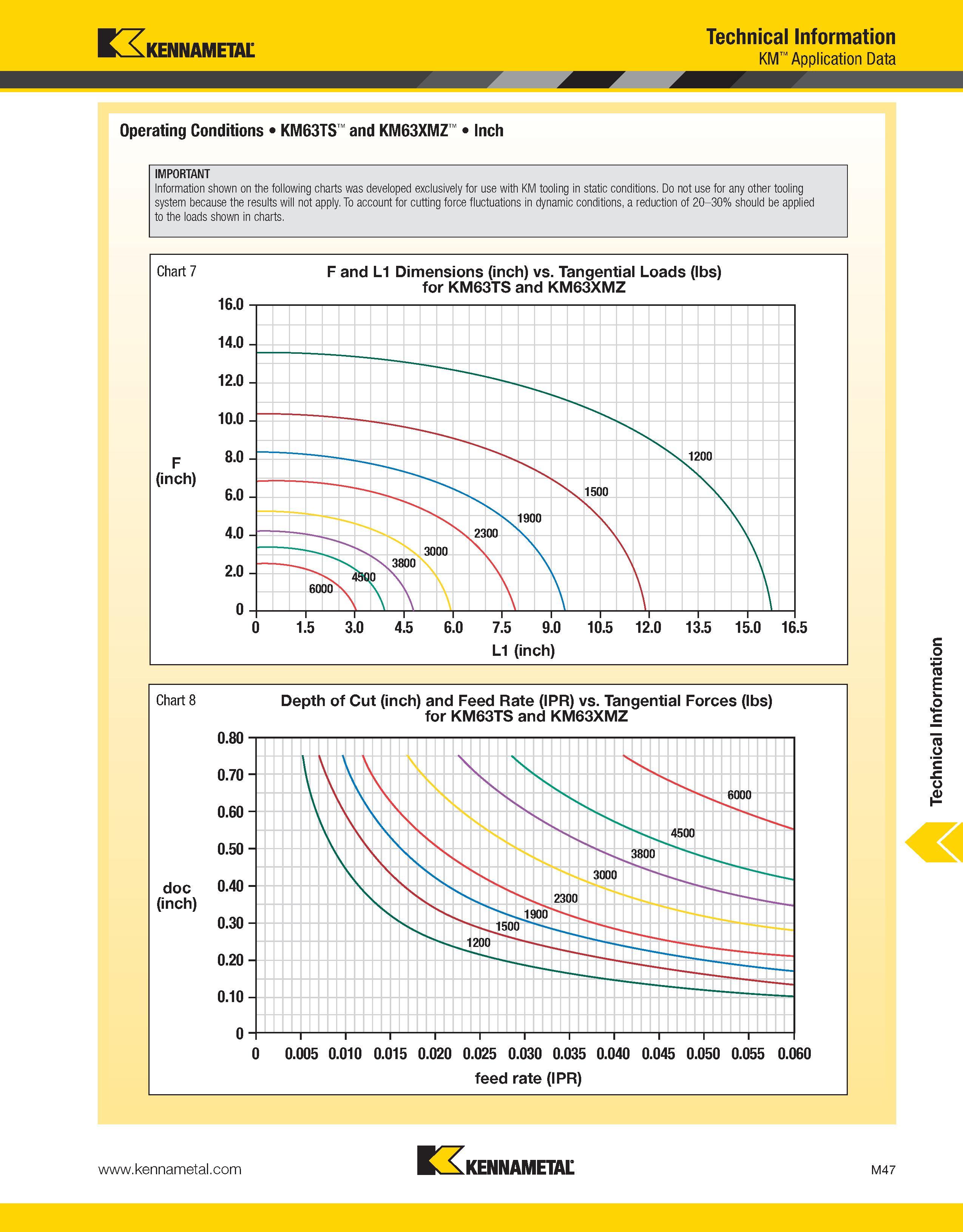

Kennametal Technical Information KM Application Data Operating Conditions KM63TS and KM63XMZ Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling in static conditions. Do not use for any other tooling system because the results will not apply. To account for cutting force fluctuations in dynamic conditions, a reduction of 20-30% should be applied to the loads shown in charts. Chart 7 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM63TS and KM63XMZ 16.0-: 14.0 - Chart 8 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM63TS and KM63XMZ 0.80 0.70 0.60 0.50 doc 0.40 (inch) 0.30 0.20 0.10 0 0 0.005 0.010 0.015 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0.055 0.060 feed rate (IPR) n, KENNAMETAL M47 Technical Information
