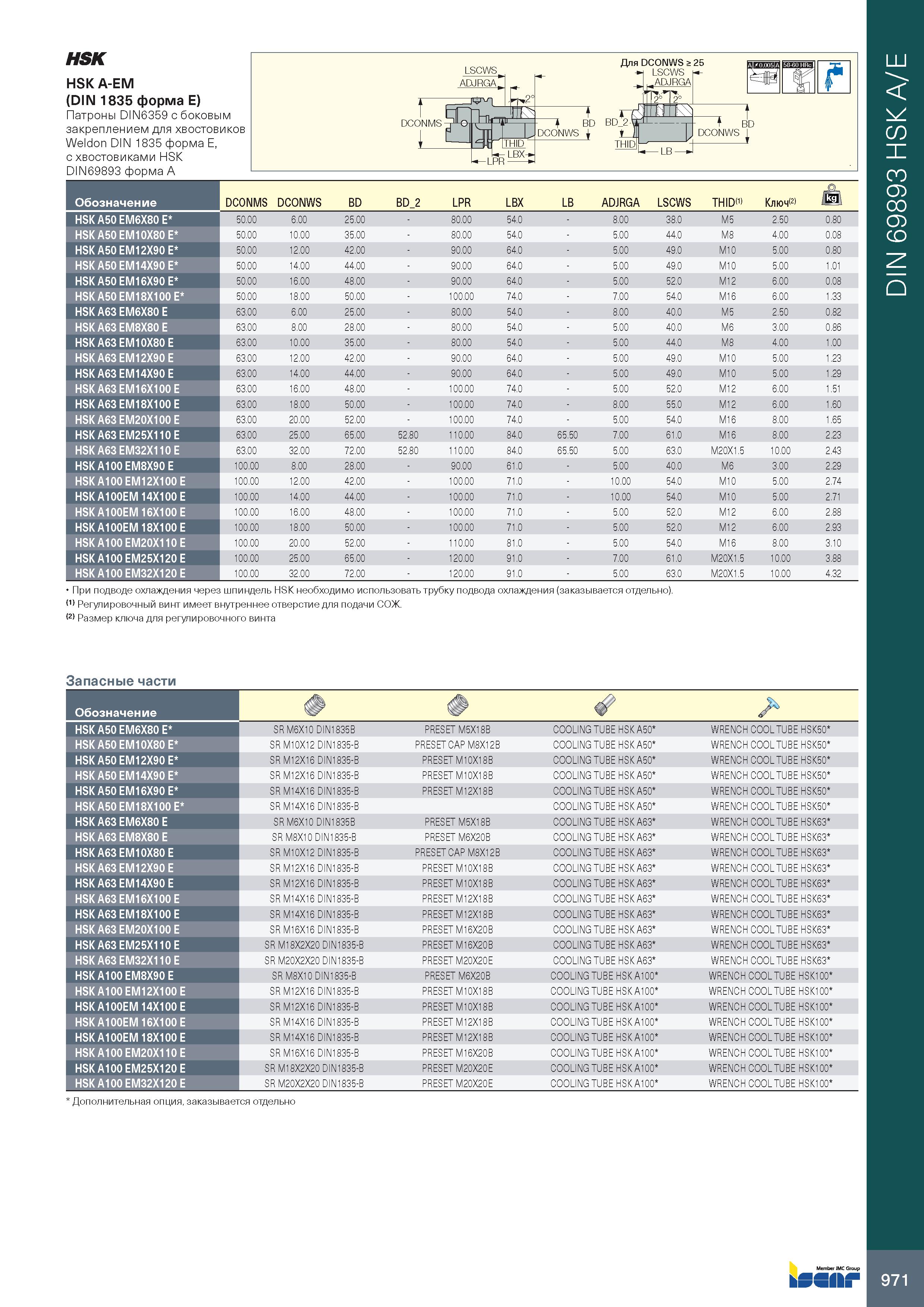

HSK HSK A-EM (DIN 1835 форма E) Патроны DIN6359 с боковым закреплением для хвостовиков Weldon DIN 1835 форма E, с хвостовиками HSK DIN69893 форма A Для DCONWS 2 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). Регулировочный винт имеет внутреннее отверстие для подачи СОЖ. (2) Размер ключа для регулировочного винта Обозначение DCONMS DCONWS BD BD 2 LPR LBX LB ADJRGA LSCWS THID(1) Ключ(2) HSK A50 EM6X80 E 50 00 6.00 25.00 80.00 54.0 8.00 38.0 M5 2.50 0.80 HSK A50 EM10X80 E 50 00 10.00 35.00 80.00 54.0 5.00 44.0 M8 4.00 0.08 HSK A50 EM12X90 E 50 00 12.00 42.00 90.00 64.0 5.00 49.0 M10 5.00 0.80 HSK A50 EM14X90 E 50 00 14.00 44.00 90.00 64.0 5.00 49.0 M10 5.00 1.01 HSK A50 EM16X90 E 50 00 16.00 48.00 90.00 64.0 5.00 52.0 M12 6.00 0.08 HSK A50 EM18X100 E 50 00 18.00 50.00 100.00 74.0 7.00 54.0 M16 6.00 1.33 HSK A63 EM6X80 E 63 00 6.00 25.00 80.00 54.0 8.00 40.0 M5 2.50 0.82 HSK A63 EM8X80 E 63 00 8.00 28.00 80.00 54.0 5.00 40.0 M6 3.00 0.86 HSK A63 EM10X80 E 63 00 10.00 35.00 80.00 54.0 5.00 44.0 M8 4.00 1.00 HSK A63 EM12X90 E 63 00 12.00 42.00 90.00 64.0 5.00 49.0 M10 5.00 1.23 HSK A63 EM14X90 E 63 00 14.00 44.00 90.00 64.0 5.00 49.0 M10 5.00 1.29 HSK A63 EM16X100 E 63 00 16.00 48.00 100.00 74.0 5.00 52.0 M12 6.00 1.51 HSK A63 EM18X100 E 63 00 18.00 50.00 100.00 74.0 8.00 55.0 M12 6.00 1.60 HSK A63 EM20X100 E 63 00 20.00 52.00 100.00 74.0 5.00 54.0 M16 8.00 1.65 HSK A63 EM25X110 E 63 00 25.00 65.00 52.80 110.00 84.0 65.50 7.00 61.0 M16 8.00 2.23 HSK A63 EM32X110 E 63 00 32.00 72.00 52.80 110.00 84.0 65.50 5.00 63.0 M20X1.5 10.00 2.43 HSK A100 EM8X90 E 10 .00 8.00 28.00 90.00 61.0 5.00 40.0 M6 3.00 2.29 HSK A100 EM12X100 E 10 .00 12.00 42.00 100.00 71.0 10.00 54.0 M10 5.00 2.74 HSK A100EM 14X100 E 10 .00 14.00 44.00 100.00 71.0 10.00 54.0 M10 5.00 2.71 HSK A100EM 16X100 E 10 .00 16.00 48.00 100.00 71.0 5.00 52.0 M12 6.00 2.88 HSK A100EM 18X100 E 10 .00 18.00 50.00 100.00 71.0 5.00 52.0 M12 6.00 2.93 HSK A100 EM20X110 E 10 .00 20.00 52.00 110.00 81.0 5.00 54.0 M16 8.00 3.10 HSK A100 EM25X120 E 10 .00 25.00 65.00 120.00 91.0 7.00 61.0 M20X1.5 10.00 3.88 HSK A100 EM32X120 E 10 .00 32.00 72.00 120.00 91.0 5.00 63.0 M20X1.5 10.00 4.32 Запасные части Обозначение ’ HSK A50 EM6X80 E SR M6X10 DIN1835B PRESET M5X18B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 EM10X80 E SR M10X12 DIN1835-B PRESET CAP M8X12B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 EM12X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 EM14X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 EM16X90 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A50 EM18X100 E SR M14X16 DIN1835-B COOLING TUBE HSK A50 WRENCH COOL TUBE HSK50 HSK A63 EM6X80 E SR M6X10 DIN1835B PRESET M5X18B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM8X80 E SR M8X10 DIN1835-B PRESET M6X20B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM10X80 E SR M10X12 DIN1835-B PRESET CAP M8X12B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM12X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM14X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM16X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM18X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM20X100 E SR M16X16 DIN1835-B PRESET M16X20B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM25X110 E SR M18X2X20 DIN1835-B PRESET M16X20B COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A63 EM32X110 E SR M20X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 HSK A100 EM8X90 E SR M8X10 DIN1835-B PRESET M6X20B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 EM12X100 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100EM 14X100 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100EM 16X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100EM 18X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 EM20X110 E SR M16X16 DIN1835-B PRESET M16X20B COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 EM25X120 E SR M18X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A100 EM32X120 E SR M20X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 Дополнительная опция, заказывается отдельно 971 DIN 69893 HSK A/E
