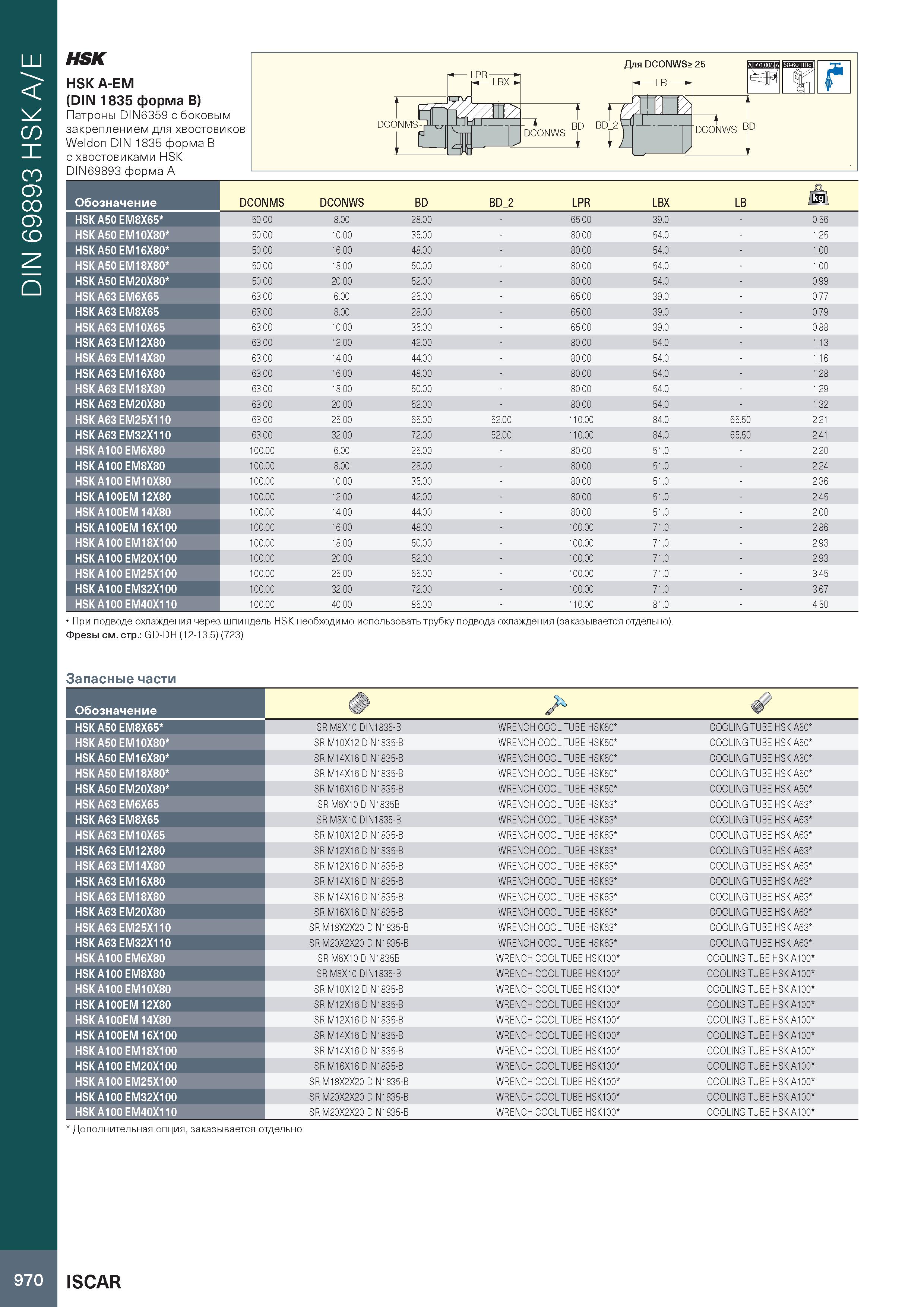

DIN 69893 HSK A/E HSK HSK A-EM (DIN 1835 форма B) Патроны DIN6359 с боковым закреплением для хвостовиков Weldon DIN 1835 форма B с хвостовиками HSK DIN69893 форма A Обозначение DCONMS DCONWS BD BD 2 LPR LBX LB kg HSK A50 EM8X65 50 00 8.00 28.00 65 00 39.0 0.56 HSK A50 EM10X80 50 00 10.00 35.00 80 00 54.0 1.25 HSK A50 EM16X80 50 00 16.00 48.00 80 00 54.0 1.00 HSK A50 EM18X80 50 00 18.00 50.00 80 00 54.0 1.00 HSK A50 EM20X80 50 00 20.00 52.00 80 00 54.0 0.99 HSK A63 EM6X65 63 00 6.00 25.00 65 00 39.0 0.77 HSK A63 EM8X65 63 00 8.00 28.00 65 00 39.0 0.79 HSK A63 EM10X65 63 00 10.00 35.00 65 00 39.0 0.88 HSK A63 EM12X80 63 00 12.00 42.00 80 00 54.0 1.13 HSK A63 EM14X80 63 00 14.00 44.00 80 00 54.0 1.16 HSK A63 EM16X80 63 00 16.00 48.00 80 00 54.0 1.28 HSK A63 EM18X80 63 00 18.00 50.00 80 00 54.0 1.29 HSK A63 EM20X80 63 00 20.00 52.00 80 00 54.0 1.32 HSK A63 EM25X110 63 00 25.00 65.00 52.00 110.00 84.0 65.50 2.21 HSK A63 EM32X110 63 00 32.00 72.00 52.00 110.00 84.0 65.50 2.41 HSK A100 EM6X80 10С .00 6.00 25.00 80 00 51.0 2.20 HSK A100 EM8X80 10С .00 8.00 28.00 80 00 51.0 2.24 HSK A100 EM10X80 10С .00 10.00 35.00 80 00 51.0 2.36 HSK A100EM 12X80 10С .00 12.00 42.00 80 00 51.0 2.45 HSK A100EM 14X80 10С .00 14.00 44.00 80 00 51.0 2.00 HSK A100EM 16X100 10С .00 16.00 48.00 10 .00 71.0 2.86 HSK A100 EM18X100 10С .00 18.00 50.00 10 .00 71.0 2.93 HSK A100 EM20X100 10С .00 20.00 52.00 10 .00 71.0 2.93 HSK A100 EM25X100 10С .00 25.00 65.00 10 .00 71.0 3.45 HSK A100 EM32X100 10С .00 32.00 72.00 10 .00 71.0 3.67 HSK A100 EM40X110 10С .00 40.00 85.00 110.00 81.0 4.50 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). Фрезы см. стр.: GD-DH (12-13.5) (723) Запасные части Обозначение 4 HSK A50 EM8X65 SR M8X10 DIN1835-B WRENCH COOL TUBE HSK50 COOLING TUBE HSK A50 HSK A50 EM10X80 SR M10X12 DIN1835-B WRENCH COOL TUBE HSK50 COOLING TUBE HSK A50 HSK A50 EM16X80 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK50 COOLING TUBE HSK A50 HSK A50 EM18X80 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK50 COOLING TUBE HSK A50 HSK A50 EM20X80 SR M16X16 DIN1835-B WRENCH COOL TUBE HSK50 COOLING TUBE HSK A50 HSK A63 EM6X65 SR M6X10 DIN1835B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM8X65 SR M8X10 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM10X65 SR M10X12 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM12X80 SR M12X16 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM14X80 SR M12X16 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM16X80 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM18X80 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM20X80 SR M16X16 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM25X110 SR M18X2X20 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A63 EM32X110 SR M20X2X20 DIN1835-B WRENCH COOL TUBE HSK63 COOLING TUBE HSK A63 HSK A100 EM6X80 SR M6X10 DIN1835B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM8X80 SR M8X10 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM10X80 SR M10X12 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100EM 12X80 SR M12X16 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100EM 14X80 SR M12X16 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100EM 16X100 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM18X100 SR M14X16 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM20X100 SR M16X16 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM25X100 SR M18X2X20 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM32X100 SR M20X2X20 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 HSK A100 EM40X110 SR M20X2X20 DIN1835-B WRENCH COOL TUBE HSK100 COOLING TUBE HSK A100 Дополнительная опция, заказывается отдельно 970 ISCAR
