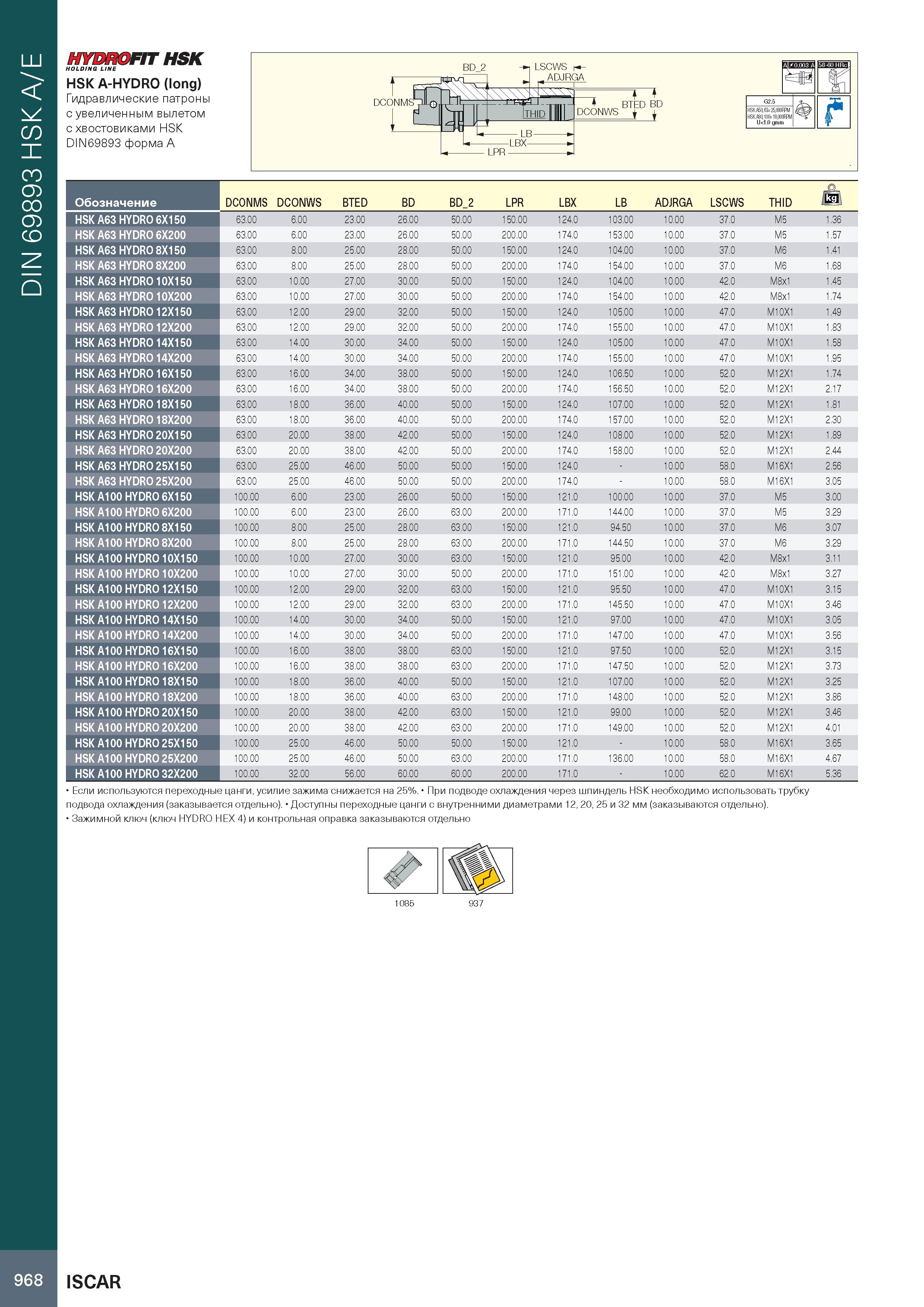

DIN 69893 HSK A/E HYDROFIT HSK HOLDING LINE HSK A-HYDRO (long) Гидравлические патроны с увеличенным вылетом с хвостовиками HSK DIN69893 форма A Обозначение DCONMS DCONWS BTED BD BD 2 LPR LBX LB ADJRGA LSCWS THID lkg HSK A63 HYDRO 6X150 63 00 6.00 23.00 26.00 50 .00 150 .00 124.0 103.00 10 .00 37.0 M5 1.36 HSK A63 HYDRO 6X200 63. 00 6.00 23.00 26.00 50 .00 200 .00 174.0 153.00 10 .00 37.0 M5 1.57 HSK A63 HYDRO 8X150 63. 00 8.00 25.00 28.00 50 .00 150 .00 124.0 104.00 10 .00 37.0 M6 1.41 HSK A63 HYDRO 8X200 63. 00 8.00 25.00 28.00 50 .00 200 .00 174.0 154.00 10 .00 37.0 M6 1.68 HSK A63 HYDRO 10X150 63. 00 10.00 27.00 30.00 50 .00 150 .00 124.0 104.00 10 .00 42.0 M8x1 1.45 HSK A63 HYDRO 10X200 63. 00 10.00 27.00 30.00 50 .00 200 .00 174.0 154.00 10 .00 42.0 M8x1 1.74 HSK A63 HYDRO 12X150 63. 00 12.00 29.00 32.00 50 .00 150 .00 124.0 105.00 10 .00 47.0 M10X1 1.49 HSK A63 HYDRO 12X200 63. 00 12.00 29.00 32.00 50 .00 200 .00 174.0 155.00 10 .00 47.0 M10X1 1.83 HSK A63 HYDRO 14X150 63. 00 14.00 30.00 34.00 50 .00 150 .00 124.0 105.00 10 .00 47.0 M10X1 1.58 HSK A63 HYDRO 14X200 63. 00 14.00 30.00 34.00 50 .00 200 .00 174.0 155.00 10 .00 47.0 M10X1 1.95 HSK A63 HYDRO 16X150 63. 00 16.00 34.00 38.00 50 .00 150 .00 124.0 106.50 10 .00 52.0 M12X1 1.74 HSK A63 HYDRO 16X200 63. 00 16.00 34.00 38.00 50 .00 200 .00 174.0 156.50 10 .00 52.0 M12X1 2.17 HSK A63 HYDRO 18X150 63. 00 18.00 36.00 40.00 50 .00 150 .00 124.0 107.00 10 .00 52.0 M12X1 1.81 HSK A63 HYDRO 18X200 63. 00 18.00 36.00 40.00 50 .00 200 .00 174.0 157.00 10 .00 52.0 M12X1 2.30 HSK A63 HYDRO 20X150 63. 00 20.00 38.00 42.00 50 .00 150 .00 124.0 108.00 10 .00 52.0 M12X1 1.89 HSK A63 HYDRO 20X200 63. 00 20.00 38.00 42.00 50 .00 200 .00 174.0 158.00 10 .00 52.0 M12X1 2.44 HSK A63 HYDRO 25X150 63. 00 25.00 46.00 50.00 50 .00 150 .00 124.0 10 .00 58.0 M16X1 2.56 HSK A63 HYDRO 25X200 63. 00 25.00 46.00 50.00 50 .00 200 .00 174.0 10 .00 58.0 M16X1 3.05 HSK A100 HYDRO 6X150 100 .00 6.00 23.00 26.00 50 .00 150 00 121.0 100.00 10 .00 37.0 M5 3.00 HSK A100 HYDRO 6X200 100 .00 6.00 23.00 26.00 63 .00 200 .00 171.0 144.00 10 .00 37.0 M5 3.29 HSK A100 HYDRO 8X150 100 .00 8.00 25.00 28.00 63 .00 150 .00 121.0 94.50 10 .00 37.0 M6 3.07 HSK A100 HYDRO 8X200 100 .00 8.00 25.00 28.00 63 .00 200 .00 171.0 144.50 10 .00 37.0 M6 3.29 HSK A100 HYDRO 10X150 100 .00 10.00 27.00 30.00 63 .00 150 .00 121.0 95.00 10 .00 42.0 M8x1 3.11 HSK A100 HYDRO 10X200 100 .00 10.00 27.00 30.00 50 .00 200 .00 171.0 151.00 10 .00 42.0 M8x1 3.27 HSK A100 HYDRO 12X150 100 .00 12.00 29.00 32.00 63 .00 150 .00 121.0 95.50 10 .00 47.0 M10X1 3.15 HSK A100 HYDRO 12X200 100 .00 12.00 29.00 32.00 63 .00 200 .00 171.0 145.50 10 .00 47.0 M10X1 3.46 HSK A100 HYDRO 14X150 100 .00 14.00 30.00 34.00 50 .00 150 .00 121.0 97.00 10 .00 47.0 M10X1 3.05 HSK A100 HYDRO 14X200 100 .00 14.00 30.00 34.00 50 .00 200 .00 171.0 147.00 10 .00 47.0 M10X1 3.56 HSK A100 HYDRO 16X150 100 .00 16.00 38.00 38.00 63 .00 150 .00 121.0 97.50 10 .00 52.0 M12X1 3.15 HSK A100 HYDRO 16X200 100 .00 16.00 38.00 38.00 63 .00 200 .00 171.0 147.50 10 .00 52.0 M12X1 3.73 HSK A100 HYDRO 18X150 100 .00 18.00 36.00 40.00 50 .00 150 .00 121.0 107.00 10 .00 52.0 M12X1 3.25 HSK A100 HYDRO 18X200 100 .00 18.00 36.00 40.00 63 .00 200 .00 171.0 148.00 10 .00 52.0 M12X1 3.86 HSK A100 HYDRO 20X150 100 .00 20.00 38.00 42.00 63 .00 150 .00 121.0 99.00 10 .00 52.0 M12X1 3.46 HSK A100 HYDRO 20X200 100 .00 20.00 38.00 42.00 63 .00 200 .00 171.0 149.00 10 .00 52.0 M12X1 4.01 HSK A100 HYDRO 25X150 100 .00 25.00 46.00 50.00 50 .00 150 .00 121.0 10 .00 58.0 M16X1 3.65 HSK A100 HYDRO 25X200 100 .00 25.00 46.00 50.00 63 .00 200 .00 171.0 136.00 10 .00 58.0 M16X1 4.67 HSK A100 HYDRO 32X200 100 .00 32.00 56.00 60.00 60 .00 200 .00 171.0 10 .00 62.0 M16X1 5.36 Если используются переходные цанги, усилие зажима снижается на 25%. При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). Доступны переходные цанги с внутренними диаметрами 12, 20, 25 и 32 мм (заказываются отдельно). Зажимной ключ (ключ HYDRO HEX 4) и контрольная оправка заказываются отдельно 1085 937 968 ISCAR
