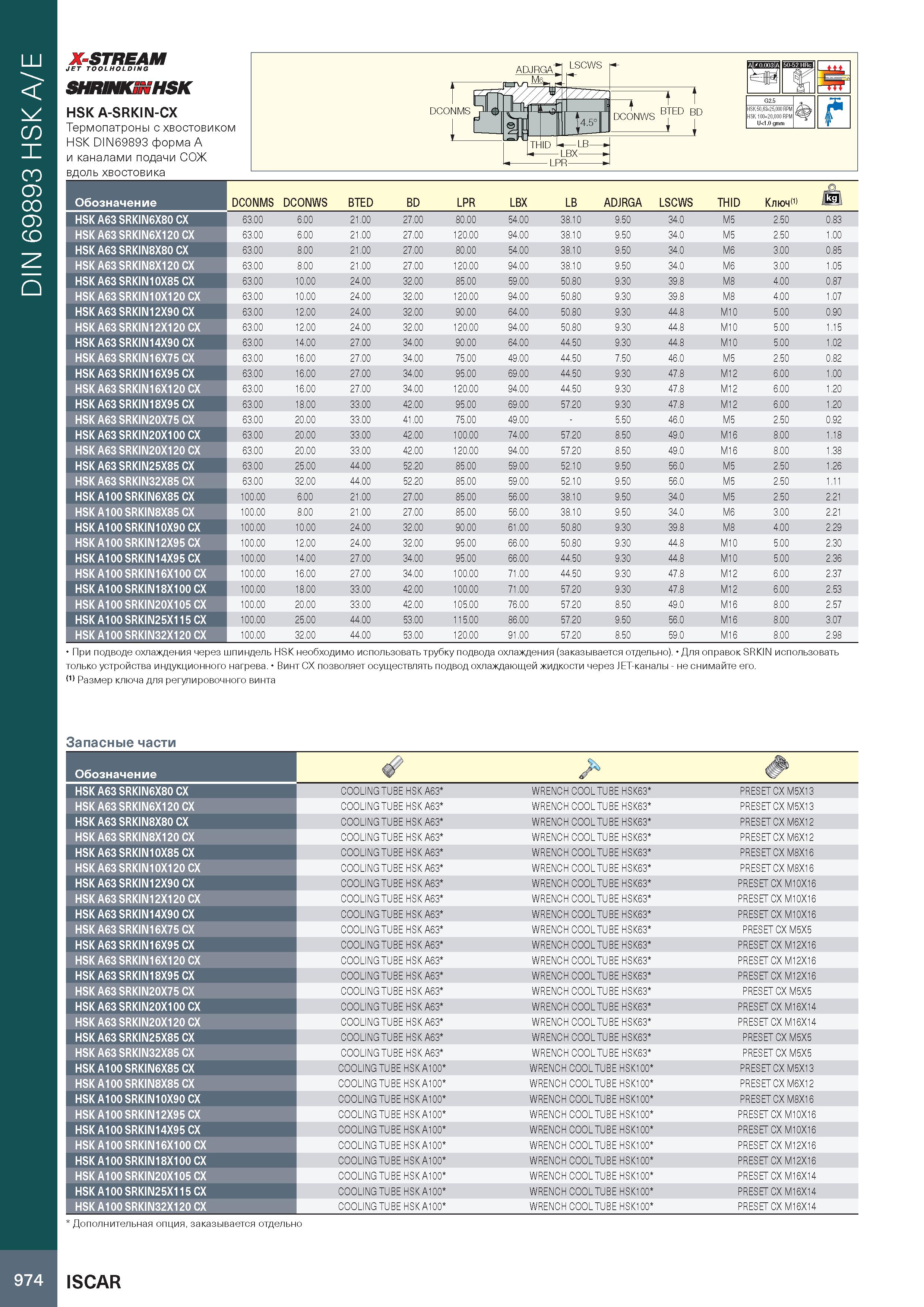

DIN 69893 HSK A/E X-STREAM JET TOOLHOLDING SHRINKiNHSK HSK A-SRKIN-CX Термопатроны с хвостовиком HSK DIN69893 форма A и каналами подачи СОЖ вдоль хвостовика HSK 50,63=25,000 RPM I HSK 100=20,000 RPM & U 1.0 gmm Обозначение DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Ключ(1) lkg HSK A63 SRKIN6X80 CX 63. 00 6.00 21.00 27.00 80.00 54.00 38.10 9.50 34.0 M5 2.50 0.83 HSK A63 SRKIN6X120 CX 63. 00 6.00 21.00 27.00 120.00 94.00 38.10 9.50 34.0 M5 2.50 1.00 HSK A63 SRKIN8X80 CX 63. 00 8.00 21.00 27.00 80.00 54.00 38.10 9.50 34.0 M6 3.00 0.85 HSK A63 SRKIN8X120 CX 63. 00 8.00 21.00 27.00 120.00 94.00 38.10 9.50 34.0 M6 3.00 1.05 HSK A63 SRKIN10X85 CX 63. 00 10.00 24.00 32.00 85.00 59.00 50.80 9.30 39.8 M8 4.00 0.87 HSK A63 SRKIN10X120 CX 63. 00 10.00 24.00 32.00 120.00 94.00 50.80 9.30 39.8 M8 4.00 1.07 HSK A63 SRKIN12X90 CX 63. 00 12.00 24.00 32.00 90.00 64.00 50.80 9.30 44.8 M10 5.00 0.90 HSK A63 SRKIN12X120 CX 63. 00 12.00 24.00 32.00 120.00 94.00 50.80 9.30 44.8 M10 5.00 1.15 HSK A63 SRKIN14X90 CX 63. 00 14.00 27.00 34.00 90.00 64.00 44.50 9.30 44.8 M10 5.00 1.02 HSK A63 SRKIN16X75 CX 63. 00 16.00 27.00 34.00 75.00 49.00 44.50 7.50 46.0 M5 2.50 0.82 HSK A63 SRKIN16X95 CX 63. 00 16.00 27.00 34.00 95.00 69.00 44.50 9.30 47.8 M12 6.00 1.00 HSK A63 SRKIN16X120 CX 63. 00 16.00 27.00 34.00 120.00 94.00 44.50 9.30 47.8 M12 6.00 1.20 HSK A63 SRKIN18X95 CX 63. 00 18.00 33.00 42.00 95.00 69.00 57.20 9.30 47.8 M12 6.00 1.20 HSK A63 SRKIN20X75 CX 63. 00 20.00 33.00 41.00 75.00 49.00 5.50 46.0 M5 2.50 0.92 HSK A63 SRKIN20X100 CX 63. 00 20.00 33.00 42.00 100.00 74.00 57.20 8.50 49.0 M16 8.00 1.18 HSK A63 SRKIN20X120 CX 63. 00 20.00 33.00 42.00 120.00 94.00 57.20 8.50 49.0 M16 8.00 1.38 HSK A63 SRKIN25X85 CX 63. 00 25.00 44.00 52.20 85.00 59.00 52.10 9.50 56.0 M5 2.50 1.26 HSK A63 SRKIN32X85 CX 63. 00 32.00 44.00 52.20 85.00 59.00 52.10 9.50 56.0 M5 2.50 1.11 HSK A100 SRKIN6X85 CX 100 .00 6.00 21.00 27.00 85.00 56.00 38.10 9.50 34.0 M5 2.50 2.21 HSK A100 SRKIN8X85 CX 100 .00 8.00 21.00 27.00 85.00 56.00 38.10 9.50 34.0 M6 3.00 2.21 HSK A100 SRKIN10X90 CX 100 .00 10.00 24.00 32.00 90.00 61.00 50.80 9.30 39.8 M8 4.00 2.29 HSK A100 SRKIN12X95 CX 100 .00 12.00 24.00 32.00 95.00 66.00 50.80 9.30 44.8 M10 5.00 2.30 HSK A100 SRKIN14X95 CX 100 .00 14.00 27.00 34.00 95.00 66.00 44.50 9.30 44.8 M10 5.00 2.36 HSK A100 SRKIN16X100 CX 100 .00 16.00 27.00 34.00 100.00 71.00 44.50 9.30 47.8 M12 6.00 2.37 HSK A100 SRKIN18X100 CX 100 .00 18.00 33.00 42.00 100.00 71.00 57.20 9.30 47.8 M12 6.00 2.53 HSK A100 SRKIN20X105 CX 100 .00 20.00 33.00 42.00 105.00 76.00 57.20 8.50 49.0 M16 8.00 2.57 HSK A100 SRKIN25X115 CX 100 .00 25.00 44.00 53.00 115.00 86.00 57.20 9.50 56.0 M16 8.00 3.07 HSK A100 SRKIN32X120 CX 100 .00 32.00 44.00 53.00 120.00 91.00 57.20 8.50 59.0 M16 8.00 2.98 При подводе охлаждения через шпиндель HSK необходимо использовать трубку подвода охлаждения (заказывается отдельно). Для оправок SRKIN использовать только устройства индукционного нагрева. Винт СХ позволяет осуществлять подвод охлаждающей жидкости через JET-каналы - не снимайте его. (1) Размер ключа для регулировочного винта G2.5 Запасные части Обозначение HSK A63 SRKIN6X80 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X13 HSK A63 SRKIN6X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X13 HSK A63 SRKIN8X80 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M6X12 HSK A63 SRKIN8X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M6X12 HSK A63 SRKIN10X85 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M8X16 HSK A63 SRKIN10X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M8X16 HSK A63 SRKIN12X90 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M10X16 HSK A63 SRKIN12X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M10X16 HSK A63 SRKIN14X90 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M10X16 HSK A63 SRKIN16X75 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X5 HSK A63 SRKIN16X95 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M12X16 HSK A63 SRKIN16X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M12X16 HSK A63 SRKIN18X95 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M12X16 HSK A63 SRKIN20X75 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X5 HSK A63 SRKIN20X100 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M16X14 HSK A63 SRKIN20X120 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M16X14 HSK A63 SRKIN25X85 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X5 HSK A63 SRKIN32X85 CX COOLING TUBE HSK A63 WRENCH COOL TUBE HSK63 PRESET CX M5X5 HSK A100 SRKIN6X85 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M5X13 HSK A100 SRKIN8X85 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M6X12 HSK A100 SRKIN10X90 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M8X16 HSK A100 SRKIN12X95 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M10X16 HSK A100 SRKIN14X95 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M10X16 HSK A100 SRKIN16X100 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M12X16 HSK A100 SRKIN18X100 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M12X16 HSK A100 SRKIN20X105 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M16X14 HSK A100 SRKIN25X115 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M16X14 HSK A100 SRKIN32X120 CX COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 PRESET CX M16X14 Дополнительная опция, заказывается отдельно 974 ISCAR
