Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI-MASTER INDEX

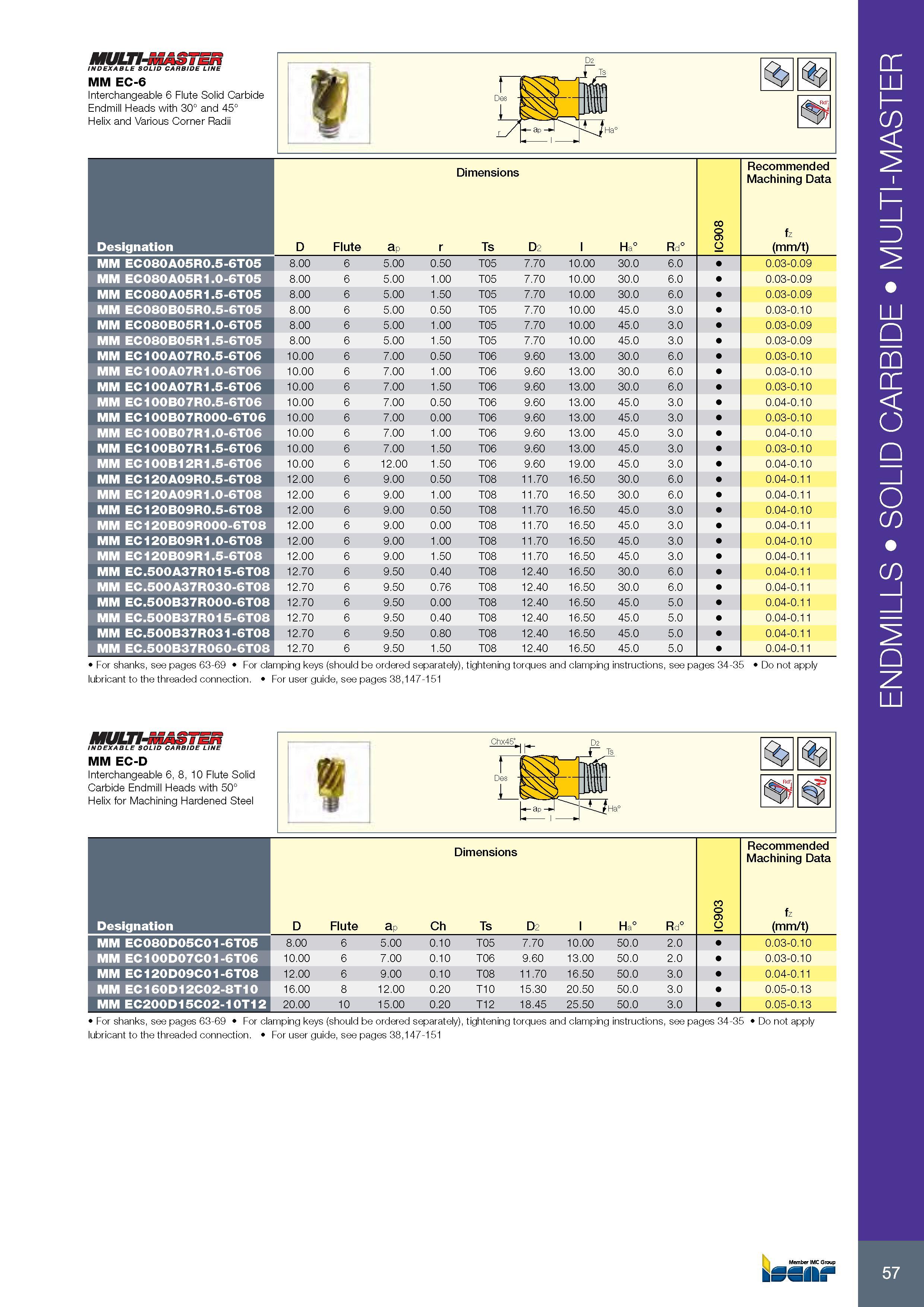

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM EC-6 Interchangeable 6 Flute Solid Carbide Endmill Heads with 30° and 45° Helix and Various Corner Radii D2 Размеры в мм Dimensions IC908 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Flute ap r Ts D 2 l Ha° Rd° MM EC080A05R0.5-6T05 8.00 6 5.00 0.50 T05 7.70 10.00 30.0 6.0 0.03-0.09 MM EC080A05R1.0-6T05 8.00 6 5.00 1.00 T05 7.70 10.00 30.0 6.0 0.03-0.09 MM EC080A05R1.5-6T05 8.00 6 5.00 1.50 T05 7.70 10.00 30.0 6.0 0.03-0.09 MM EC080B05R0.5-6T05 8.00 6 5.00 0.50 T05 7.70 10.00 45.0 3.0 0.03-0.10 MM EC080B05R1.0-6T05 8.00 6 5.00 1.00 T05 7.70 10.00 45.0 3.0 0.03-0.09 MM EC080B05R1.5-6T05 8.00 6 5.00 1.50 T05 7.70 10.00 45.0 3.0 0.03-0.09 MM EC100A07R0.5-6T06 10.00 6 7.00 0.50 T06 9.60 13.00 30.0 6.0 0.03-0.10 MM EC100A07R1.0-6T06 10.00 6 7.00 1.00 T06 9.60 13.00 30.0 6.0 0.03-0.10 MM EC100A07R1.5-6T06 10.00 6 7.00 1.50 T06 9.60 13.00 30.0 6.0 0.03-0.10 MM EC100B07R0.5-6T06 10.00 6 7.00 0.50 T06 9.60 13.00 45.0 3.0 0.04-0.10 MM EC100B07R000-6T06 10.00 6 7.00 0.00 T06 9.60 13.00 45.0 3.0 0.03-0.10 MM EC100B07R1.0-6T06 10.00 6 7.00 1.00 T06 9.60 13.00 45.0 3.0 0.04-0.10 MM EC100B07R1.5-6T06 10.00 6 7.00 1.50 T06 9.60 13.00 45.0 3.0 0.03-0.10 MM EC100B12R1.5-6T06 10.00 6 12.00 1.50 T06 9.60 19.00 45.0 3.0 0.04-0.10 MM EC120A09R0.5-6T08 12.00 6 9.00 0.50 T08 11.70 16.50 30.0 6.0 0.04-0.11 MM EC120A09R1.0-6T08 12.00 6 9.00 1.00 T08 11.70 16.50 30.0 6.0 0.04-0.11 MM EC120B09R0.5-6T08 12.00 6 9.00 0.50 T08 11.70 16.50 45.0 3.0 0.04-0.10 MM EC120B09R000-6T08 12.00 6 9.00 0.00 T08 11.70 16.50 45.0 3.0 0.04-0.11 MM EC120B09R1.0-6T08 12.00 6 9.00 1.00 T08 11.70 16.50 45.0 3.0 0.04-0.10 MM EC120B09R1.5-6T08 12.00 6 9.00 1.50 T08 11.70 16.50 45.0 3.0 0.04-0.11 MM EC.500A37R015-6T08 12.70 6 9.50 0.40 T08 12.40 16.50 30.0 6.0 0.04-0.11 MM EC.500A37R030-6T08 12.70 6 9.50 0.76 T08 12.40 16.50 30.0 6.0 0.04-0.11 MM EC.500B37R000-6T08 12.70 6 9.50 0.00 T08 12.40 16.50 45.0 5.0 0.04-0.11 MM EC.500B37R015-6T08 12.70 6 9.50 0.40 T08 12.40 16.50 45.0 5.0 0.04-0.11 MM EC.500B37R031-6T08 12.70 6 9.50 0.80 T08 12.40 16.50 45.0 5.0 0.04-0.11 MM EC.500B37R060-6T08 12.70 6 9.50 1.50 T08 12.40 16.50 45.0 5.0 0.04-0.11 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM EC-D Interchangeable 6, 8, 10 Flute Solid Carbide Endmill Heads with 50° Helix for Machining Hardened Steel Chx45° D2 If- f Ts Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data Обозначение Designation D Flute ap Ch Ts D 2 l Ha° Rd° IC903 Подача на зуб fz (mm/t) MM EC080D05C01-6T05 8.00 6 5.00 0.10 T05 7.70 10.00 50.0 2.0 0.03-0.10 MM EC100D07C01-6T06 10.00 6 7.00 0.10 T06 9.60 13.00 50.0 2.0 0.03-0.10 MM EC120D09C01-6T08 12.00 6 9.00 0.10 T08 11.70 16.50 50.0 3.0 0.04-0.11 MM EC160D12C02-8T10 16.00 8 12.00 0.20 T10 15.30 20.50 50.0 3.0 0.05-0.13 MM EC200D15C02-10T12 20.00 10 15.00 0.20 T12 18.45 25.50 50.0 3.0 0.05-0.13 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 57 ENDMILLS SOLID CARBIDE MULTI-MASTER
