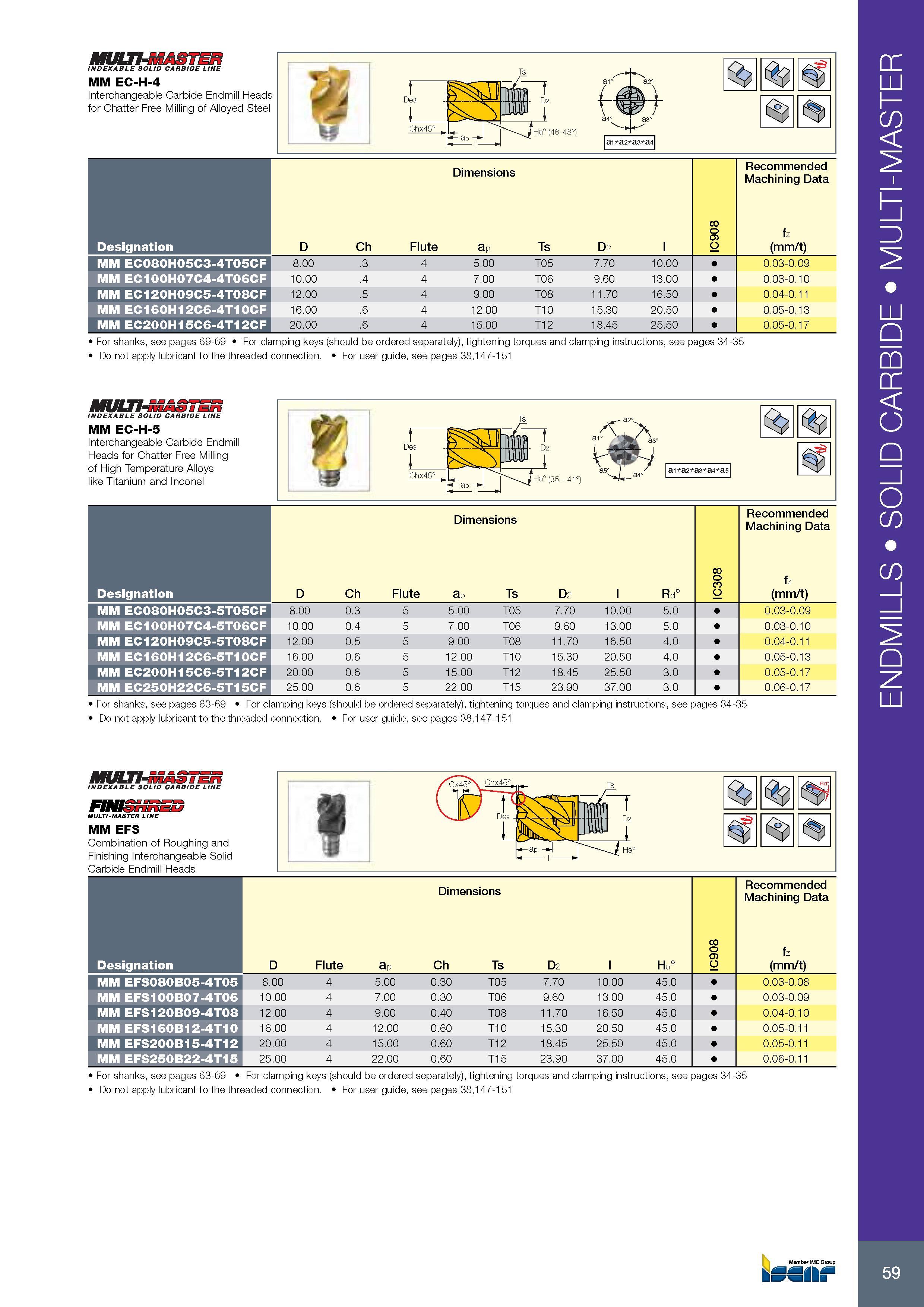

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI- INDEXABLE S

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI- INDEXABLE SOLID CARBIDE LINE MM EC-H-4 Interchangeable Carbide Endmill Heads for Chatter Free Milling of Alloyed Steel Размеры в мм Dimensions o 9 g Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Ch Flute ap Ts D 2 l MM EC080H05C3-4T05CF 8.00 .3 4 5.00 T05 7.70 10.00 0.03-0.09 MM EC100H07C4-4T06CF 10.00 .4 4 7.00 T06 9.60 13.00 0.03-0.10 MM EC120H09C5-4T08CF 12.00 .5 4 9.00 T08 11.70 16.50 0.04-0.11 MM EC160H12C6-4T10CF 16.00 .6 4 12.00 T10 15.30 20.50 0.05-0.13 MM EC200H15C6-4T12CF 20.00 .6 4 15.00 T12 18.45 25.50 0.05-0.17 For shanks, see pages 69-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULTI-i INDEXABLE SOLID CARBIDE LINE MM EC-H-5 Interchangeable Carbide Endmill Heads for Chatter Free Milling of High Temperature Alloys like Titanium and Inconel Размеры в мм Dimensions o g Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Ch Flute ap Ts D 2 l Rd° MM EC080H05C3-5T05CF 8.00 0.3 5 5.00 T05 7.70 10.00 5.0 0.03-0.09 MM EC100H07C4-5T06CF 10.00 0.4 5 7.00 T06 9.60 13.00 5.0 0.03-0.10 MM EC120H09C5-5T08CF 12.00 0.5 5 9.00 T08 11.70 16.50 4.0 0.04-0.11 MM EC160H12C6-5T10CF 16.00 0.6 5 12.00 T10 15.30 20.50 4.0 0.05-0.13 MM EC200H15C6-5T12CF 20.00 0.6 5 15.00 T12 18.45 25.50 3.0 0.05-0.17 MM EC250H22C6-5T15CF 25.00 0.6 5 22.00 T15 23.90 37.00 3.0 0.06-0.17 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULTI-MASTER INDEXABLE SOLID CARBIDE LINE FINISHnED MULTI-MASTER LINE MM EFS Combination of Roughing and Finishing Interchangeable Solid Carbide Endmill Heads Размеры в мм Dimensions o 9 g Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Flute ap Ch Ts D 2 l Ha° MM EFS080B05-4T05 8.00 4 5.00 0.30 T05 7.70 10.00 45.0 0.03-0.08 MM EFS100B07-4T06 10.00 4 7.00 0.30 T06 9.60 13.00 45.0 0.03-0.09 MM EFS120B09-4T08 12.00 4 9.00 0.40 T08 11.70 16.50 45.0 0.04-0.10 MM EFS160B12-4T10 16.00 4 12.00 0.60 T10 15.30 20.50 45.0 0.05-0.11 MM EFS200B15-4T12 20.00 4 15.00 0.60 T12 18.45 25.50 45.0 0.05-0.11 MM EFS250B22-4T15 25.00 4 22.00 0.60 T15 23.90 37.00 45.0 0.06-0.11 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 Member IMC Group kSSII t 59 ENDMILLS SOLID CARBIDE MULTI-MASTER
