Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CAR

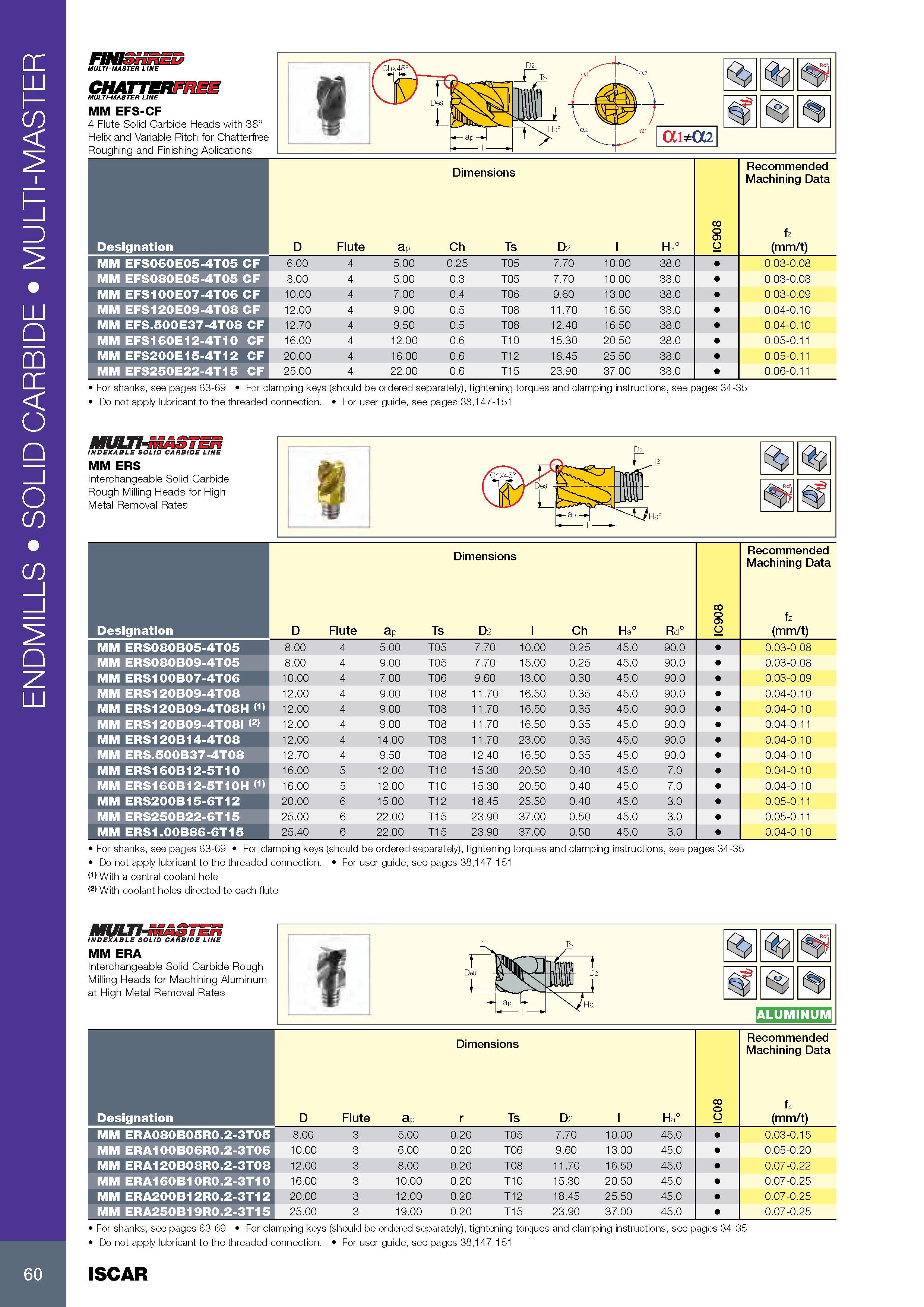

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CARBIDE MULTI-MASTER FINISH MULTI-MASTER LINE CHATTERFREE MULTI-MASTER LINE MM EFS-CF 4 Flute Solid Carbide Heads with 38° Helix and Variable Pitch for Chatterfree Roughing and Finishing Aplications Размеры в мм Dimensions IC908 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Flute ap Ch Ts D 2 l Ha° MM EFS060E05-4T05 CF 6.00 4 5.00 0.25 T05 7.70 10.00 38.0 0.03-0.08 MM EFS080E05-4T05 CF 8.00 4 5.00 0.3 T05 7.70 10.00 38.0 0.03-0.08 MM EFS100E07-4T06 CF 10.00 4 7.00 0.4 T06 9.60 13.00 38.0 0.03-0.09 MM EFS120E09-4T08 CF 12.00 4 9.00 0.5 T08 11.70 16.50 38.0 0.04-0.10 MM EFS.500E37-4T08 CF 12.70 4 9.50 0.5 T08 12.40 16.50 38.0 0.04-0.10 MM EFS160E12-4T10 CF 16.00 4 12.00 0.6 T10 15.30 20.50 38.0 0.05-0.11 MM EFS200E15-4T12 CF 20.00 4 16.00 0.6 T12 18.45 25.50 38.0 0.05-0.11 MM EFS250E22-4T15 CF 25.00 4 22.00 0.6 T15 23.90 37.00 38.0 0.06-0.11 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULTI-i INDEXABLE SOLID CARBIDE LINE MM ERS Interchangeable Solid Carbide Rough Milling Heads for High Metal Removal Rates Размеры в мм Dimensions IC908 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Flute ap Ts D 2 l Ch Ha° Rd° MM ERS080B05-4T05 8.00 4 5.00 T05 7.70 10.00 0.25 45.0 90.0 0.03-0.08 MM ERS080B09-4T05 8.00 4 9.00 T05 7.70 15.00 0.25 45.0 90.0 0.03-0.08 MM ERS100B07-4T06 10.00 4 7.00 T06 9.60 13.00 0.30 45.0 90.0 0.03-0.09 MM ERS120B09-4T08 12.00 4 9.00 T08 11.70 16.50 0.35 45.0 90.0 0.04-0.10 MM ERS120B09-4T08H <1> 12.00 4 9.00 T08 11.70 16.50 0.35 45.0 90.0 0.04-0.10 MM ERS120B09-4T08I <2> 12.00 4 9.00 T08 11.70 16.50 0.35 45.0 90.0 0.04-0.11 MM ERS120B14-4T08 12.00 4 14.00 T08 11.70 23.00 0.35 45.0 90.0 0.04-0.10 MM ERS.500B37-4T08 12.70 4 9.50 T08 12.40 16.50 0.35 45.0 90.0 0.04-0.10 MM ERS160B12-5T10 16.00 5 12.00 T10 15.30 20.50 0.40 45.0 7.0 0.04-0.10 MM ERS160B12-5T10H <1> 16.00 5 12.00 T10 15.30 20.50 0.40 45.0 7.0 0.04-0.10 MM ERS200B15-6T12 20.00 6 15.00 T12 18.45 25.50 0.40 45.0 3.0 0.05-0.11 MM ERS250B22-6T15 25.00 6 22.00 T15 23.90 37.00 0.50 45.0 3.0 0.05-0.11 MM ERS1.00B86-6T15 25.40 6 22.00 T15 23.90 37.00 0.50 45.0 3.0 0.04-0.10 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 With a central coolant hole With coolant holes directed to each flute MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM ERA Interchangeable Solid Carbide Rough Milling Heads for Machining Aluminum at High Metal Removal Rates De8 I 1 D2 I LUMINUM Размеры в мм Dimensions 8 0 IC Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Flute ap r Ts D 2 l Ha° MM ERA080B05R0.2-3T05 8.00 3 5.00 0.20 T05 7.70 10.00 45.0 0.03-0.15 MM ERA100B06R0.2-3T06 10.00 3 6.00 0.20 T06 9.60 13.00 45.0 0.05-0.20 MM ERA120B08R0.2-3T08 12.00 3 8.00 0.20 T08 11.70 16.50 45.0 0.07-0.22 MM ERA160B10R0.2-3T10 16.00 3 10.00 0.20 T10 15.30 20.50 45.0 0.07-0.25 MM ERA200B12R0.2-3T12 20.00 3 12.00 0.20 T12 18.45 25.50 45.0 0.07-0.25 MM ERA250B19R0.2-3T15 25.00 3 19.00 0.20 T15 23.90 37.00 45.0 0.07-0.25 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 Ha 60 ISCAR
