Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CAR

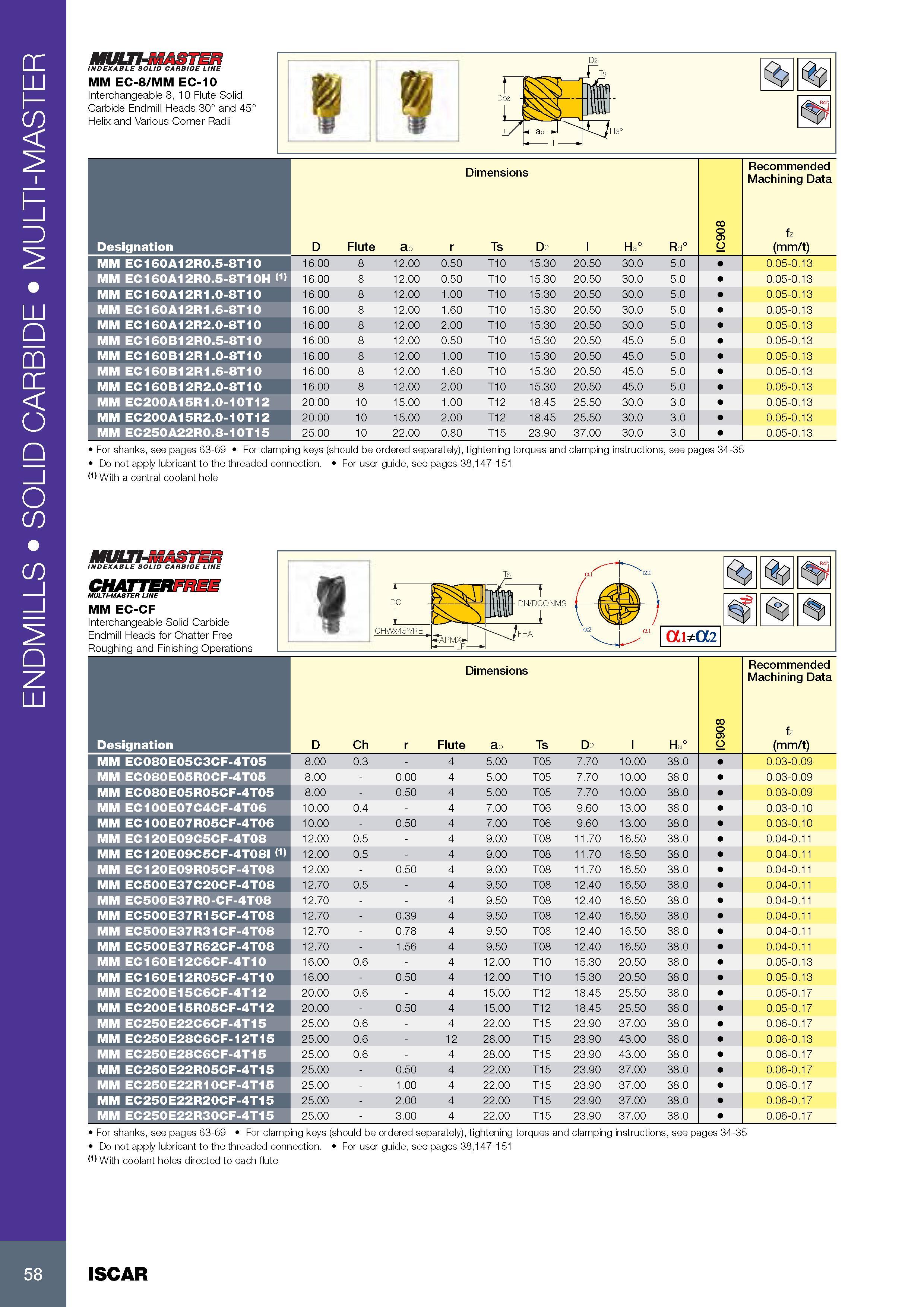

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CARBIDE MULTI-MASTER MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM EC-8/MM EC-10 Interchangeable 8, 10 Flute Solid Carbide Endmill Heads 30° and 45° Helix and Various Corner Radii Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data Обозначение Designation D Flute ap r Ts D 2 l Ha° Rd° IC908 Подача на зуб fz (mm/t) MM EC160A12R0.5-8T10 16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0 0.05-0.13 MM EC160A12R0.5-8T10H (1) 16.00 8 12.00 0.50 T10 15.30 20.50 30.0 5.0 0.05-0.13 MM EC160A12R1.0-8T10 16.00 8 12.00 1.00 T10 15.30 20.50 30.0 5.0 0.05-0.13 MM EC160A12R1.6-8T10 16.00 8 12.00 1.60 T10 15.30 20.50 30.0 5.0 0.05-0.13 MM EC160A12R2.0-8T10 16.00 8 12.00 2.00 T10 15.30 20.50 30.0 5.0 0.05-0.13 MM EC160B12R0.5-8T10 16.00 8 12.00 0.50 T10 15.30 20.50 45.0 5.0 0.05-0.13 MM EC160B12R1.0-8T10 16.00 8 12.00 1.00 T10 15.30 20.50 45.0 5.0 0.05-0.13 MM EC160B12R1.6-8T10 16.00 8 12.00 1.60 T10 15.30 20.50 45.0 5.0 0.05-0.13 MM EC160B12R2.0-8T10 16.00 8 12.00 2.00 T10 15.30 20.50 45.0 5.0 0.05-0.13 MM EC200A15R1.0-10T12 20.00 10 15.00 1.00 T12 18.45 25.50 30.0 3.0 0.05-0.13 MM EC200A15R2.0-10T12 20.00 10 15.00 2.00 T12 18.45 25.50 30.0 3.0 0.05-0.13 MM EC250A22R0.8-10T15 25.00 10 22.00 0.80 T15 23.90 37.00 30.0 3.0 0.05-0.13 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 (1) With a central coolant hole MULTI-l INDEXABLE SOLID CARBIDE LINE CHATTERFREE MULTI-MASTER LINE MM EC-CF Interchangeable Solid Carbide Endmill Heads for Chatter Free Roughing and Finishing Operations CHWx45°/RE m\m DN/DCONMS i 5 ai 0C2 Размеры в мм Dimensions IC908 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D Ch r Flute ap Ts D 2 l Ha° MM EC080E05C3CF-4T05 8.00 0.3 - 4 5.00 T05 7.70 10.00 38.0 0.03-0.09 MM EC080E05R0CF-4T05 8.00 - 0.00 4 5.00 T05 7.70 10.00 38.0 0.03-0.09 MM EC080E05R05CF-4T05 8.00 - 0.50 4 5.00 T05 7.70 10.00 38.0 0.03-0.09 MM EC100E07C4CF-4T06 10.00 0.4 - 4 7.00 T06 9.60 13.00 38.0 0.03-0.10 MM EC100E07R05CF-4T06 10.00 - 0.50 4 7.00 T06 9.60 13.00 38.0 0.03-0.10 MM EC120E09C5CF-4T08 12.00 0.5 - 4 9.00 T08 11.70 16.50 38.0 0.04-0.11 MM EC120E09C5CF-4T08I (1) 12.00 0.5 - 4 9.00 T08 11.70 16.50 38.0 0.04-0.11 MM EC120E09R05CF-4T08 12.00 - 0.50 4 9.00 T08 11.70 16.50 38.0 0.04-0.11 MM EC500E37C20CF-4T08 12.70 0.5 - 4 9.50 T08 12.40 16.50 38.0 0.04-0.11 MM EC500E37R0-CF-4T08 12.70 4 9.50 T08 12.40 16.50 38.0 0.04-0.11 MM EC500E37R15CF-4T08 12.70 - 0.39 4 9.50 T08 12.40 16.50 38.0 0.04-0.11 MM EC500E37R31CF-4T08 12.70 - 0.78 4 9.50 T08 12.40 16.50 38.0 0.04-0.11 MM EC500E37R62CF-4T08 12.70 - 1.56 4 9.50 T08 12.40 16.50 38.0 0.04-0.11 MM EC160E12C6CF-4T10 16.00 0.6 - 4 12.00 T10 15.30 20.50 38.0 0.05-0.13 MM EC160E12R05CF-4T10 16.00 - 0.50 4 12.00 T10 15.30 20.50 38.0 0.05-0.13 MM EC200E15C6CF-4T12 20.00 0.6 - 4 15.00 T12 18.45 25.50 38.0 0.05-0.17 MM EC200E15R05CF-4T12 20.00 - 0.50 4 15.00 T12 18.45 25.50 38.0 0.05-0.17 MM EC250E22C6CF-4T15 25.00 0.6 - 4 22.00 T15 23.90 37.00 38.0 0.06-0.17 MM EC250E28C6CF-12T15 25.00 0.6 - 12 28.00 T15 23.90 43.00 38.0 0.06-0.13 MM EC250E28C6CF-4T15 25.00 0.6 - 4 28.00 T15 23.90 43.00 38.0 0.06-0.17 MM EC250E22R05CF-4T15 25.00 - 0.50 4 22.00 T15 23.90 37.00 38.0 0.06-0.17 MM EC250E22R10CF-4T15 25.00 - 1.00 4 22.00 T15 23.90 37.00 38.0 0.06-0.17 MM EC250E22R20CF-4T15 25.00 - 2.00 4 22.00 T15 23.90 37.00 38.0 0.06-0.17 MM EC250E22R30CF-4T15 25.00 - 3.00 4 22.00 T15 23.90 37.00 38.0 0.06-0.17 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 (1) With coolant holes directed to each flute is 58 ISCAR
