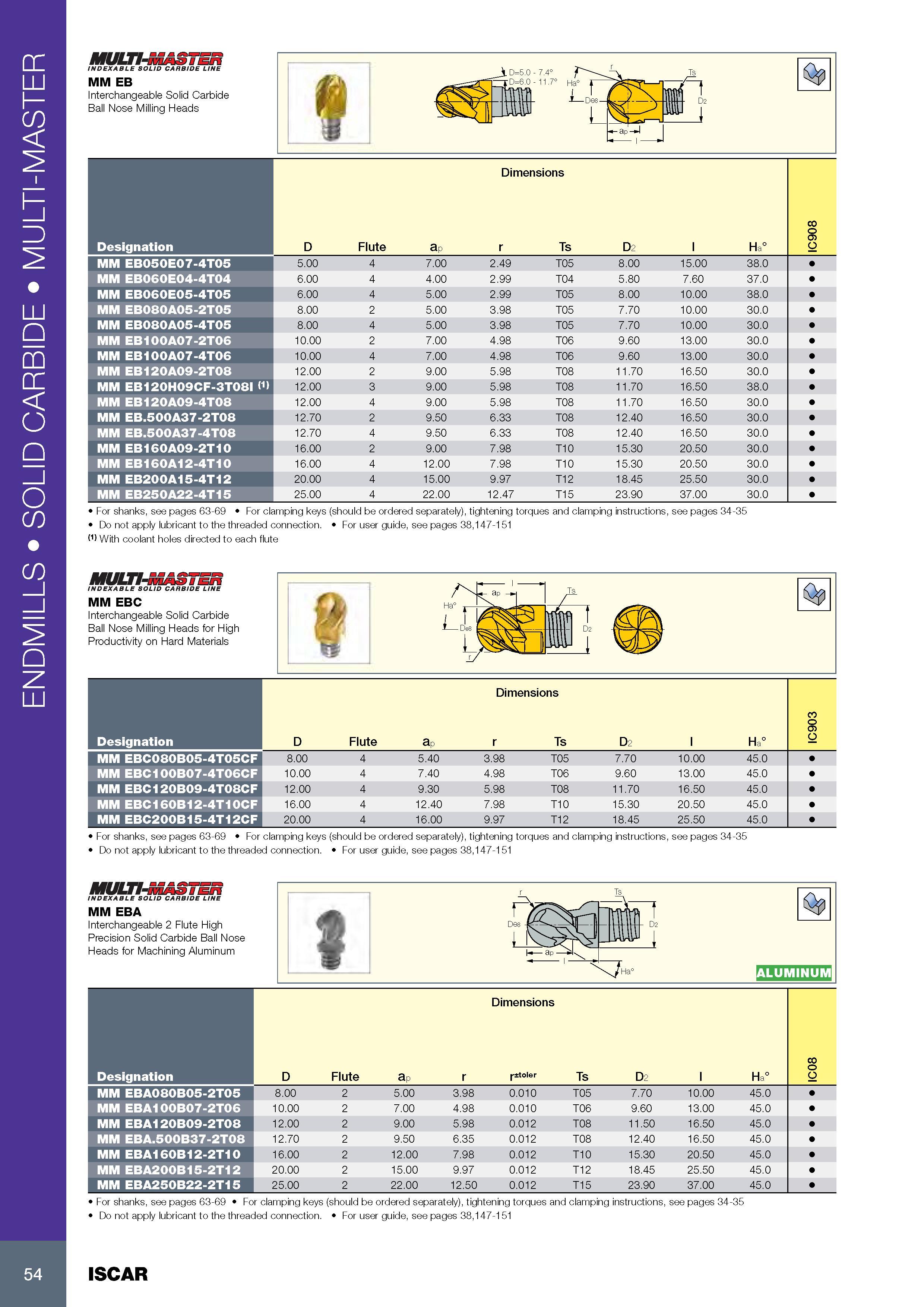

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CAR

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CARBIDE MULTI-MASTER MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM EB Interchangeable Solid Carbide Ball Nose Milling Heads Размеры в мм Dimensions Обозначение Designation D Flute ap r Ts D 2 l Ha° IC908 MM EB050E07-4T05 5.00 4 7.00 2.49 T05 8.00 15.00 38.0 MM EB060E04-4T04 6.00 4 4.00 2.99 T04 5.80 7.60 37.0 MM EB060E05-4T05 6.00 4 5.00 2.99 T05 8.00 10.00 38.0 MM EB080A05-2T05 8.00 2 5.00 3.98 T05 7.70 10.00 30.0 MM EB080A05-4T05 8.00 4 5.00 3.98 T05 7.70 10.00 30.0 MM EB100A07-2T06 10.00 2 7.00 4.98 T06 9.60 13.00 30.0 MM EB100A07-4T06 10.00 4 7.00 4.98 T06 9.60 13.00 30.0 MM EB120A09-2T08 12.00 2 9.00 5.98 T08 11.70 16.50 30.0 MM EB120H09CF-3T08I 12.00 3 9.00 5.98 T08 11.70 16.50 38.0 MM EB120A09-4T08 12.00 4 9.00 5.98 T08 11.70 16.50 30.0 MM EB.500A37-2T08 12.70 2 9.50 6.33 T08 12.40 16.50 30.0 MM EB.500A37-4T08 12.70 4 9.50 6.33 T08 12.40 16.50 30.0 MM EB160A09-2T10 16.00 2 9.00 7.98 T10 15.30 20.50 30.0 MM EB160A12-4T10 16.00 4 12.00 7.98 T10 15.30 20.50 30.0 MM EB200A15-4T12 20.00 4 15.00 9.97 T12 18.45 25.50 30.0 MM EB250A22-4T15 25.00 4 22.00 12.47 T15 23.90 37.00 30.0 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 With coolant holes directed to each flute MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM EBC Interchangeable Solid Carbide Ball Nose Milling Heads for High Productivity on Hard Materials Размеры в мм Dimensions Обозначение Designation D Flute ap r Ts D 2 l Ha° IC903 MM EBC080B05-4T05CF 8.00 4 5.40 3.98 T05 7.70 10.00 45.0 MM EBC100B07-4T06CF 10.00 4 7.40 4.98 T06 9.60 13.00 45.0 MM EBC120B09-4T08CF 12.00 4 9.30 5.98 T08 11.70 16.50 45.0 MM EBC160B12-4T10CF 16.00 4 12.40 7.98 T10 15.30 20.50 45.0 MM EBC200B15-4T12CF 20.00 4 16.00 9.97 T12 18.45 25.50 45.0 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 Размеры в мм Dimensions Обозначение Designation D Flute ap r r±toler Ts D 2 l Ha° IC08 MM EBA080B05-2T05 8.00 2 5.00 3.98 0.010 T05 7.70 10.00 45.0 MM EBA100B07-2T06 10.00 2 7.00 4.98 0.010 T06 9.60 13.00 45.0 MM EBA120B09-2T08 12.00 2 9.00 5.98 0.012 T08 11.50 16.50 45.0 MM EBA.500B37-2T08 12.70 2 9.50 6.35 0.012 T08 12.40 16.50 45.0 MM EBA160B12-2T10 16.00 2 12.00 7.98 0.012 T10 15.30 20.50 45.0 MM EBA200B15-2T12 20.00 2 15.00 9.97 0.012 T12 18.45 25.50 45.0 MM EBA250B22-2T15 25.00 2 22.00 12.50 0.012 T15 23.90 37.00 45.0 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 54 ISCAR
