Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI- INDEXABLE S

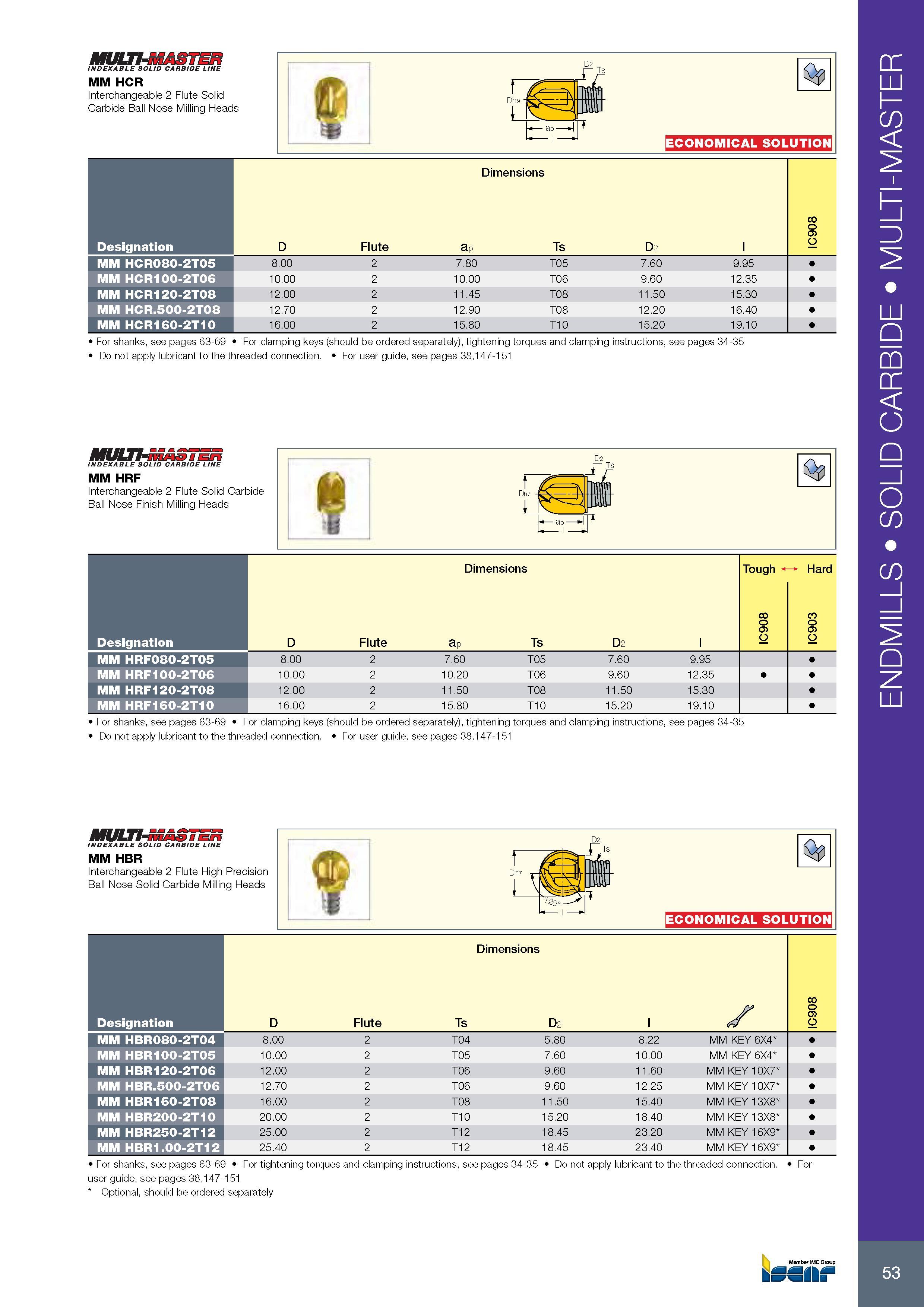

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение MULTI- INDEXABLE SOLID CARBIDE LINE MM HCR Interchangeable 2 Flute Solid Carbide Ball Nose Milling Heads Dh9 - L t ap ECONOMICAL SOLUTION Размеры в мм Dimensions Ts Обозначение Designation D Flute ap Ts D2 l IC908 MM HCR080-2T05 8.00 2 7.80 T05 7.60 9.95 MM HCR100-2T06 10.00 2 10.00 T06 9.60 12.35 MM HCR120-2T08 12.00 2 11.45 T08 11.50 15.30 MM HCR.500-2T08 12.70 2 12.90 T08 12.20 16.40 MM HCR160-2T10 16.00 2 15.80 T10 15.20 19.10 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MUm-SnASTSR INDEXABLE SOLID CARBIDE LINE MM HRF Interchangeable 2 Flute Solid Carbide Ball Nose Finish Milling Heads Обозначение Designation MM HRF080-2T05 MM HRF100-2T06 MM HRF120-2T08 MM HRF160-2T10 Размеры в мм Dimensions Tough Hard D Flute ap Ts D2 l IC908 IC903 8.00 2 7.60 T05 7.60 9.95 10.00 2 10.20 T06 9.60 12.35 12.00 2 11.50 T08 11.50 15.30 16.00 2 15.80 T10 15.20 19.10 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULTI-i INDEXABLE SOLID CARBIDE LINE MM HBR Interchangeable 2 Flute High Precision Ball Nose Solid Carbide Milling Heads ECONOMICAL SOLUTION Размеры в мм Dimensions Обозначение Designation D Flute Ts D2 l s IC908 MM HBR080-2T04 8.00 2 T04 5.80 8.22 MM KEY 6X4 MM HBR100-2T05 10.00 2 T05 7.60 10.00 MM KEY 6X4 MM HBR120-2T06 12.00 2 T06 9.60 11.60 MM KEY 10X7 MM HBR.500-2T06 12.70 2 T06 9.60 12.25 MM KEY 10X7 MM HBR160-2T08 16.00 2 T08 11.50 15.40 MM KEY 13X8 MM HBR200-2T10 20.00 2 T10 15.20 18.40 MM KEY 13X8 MM HBR250-2T12 25.00 2 T12 18.45 23.20 MM KEY 16X9 MM HBR1.00-2T12 25.40 2 T12 18.45 23.40 MM KEY 16X9 For shanks, see pages 63-69 For tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 Optional, should be ordered separately Ts 53 ENDMILLS SOLID CARBIDE MULTI-MASTER
