Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CAR

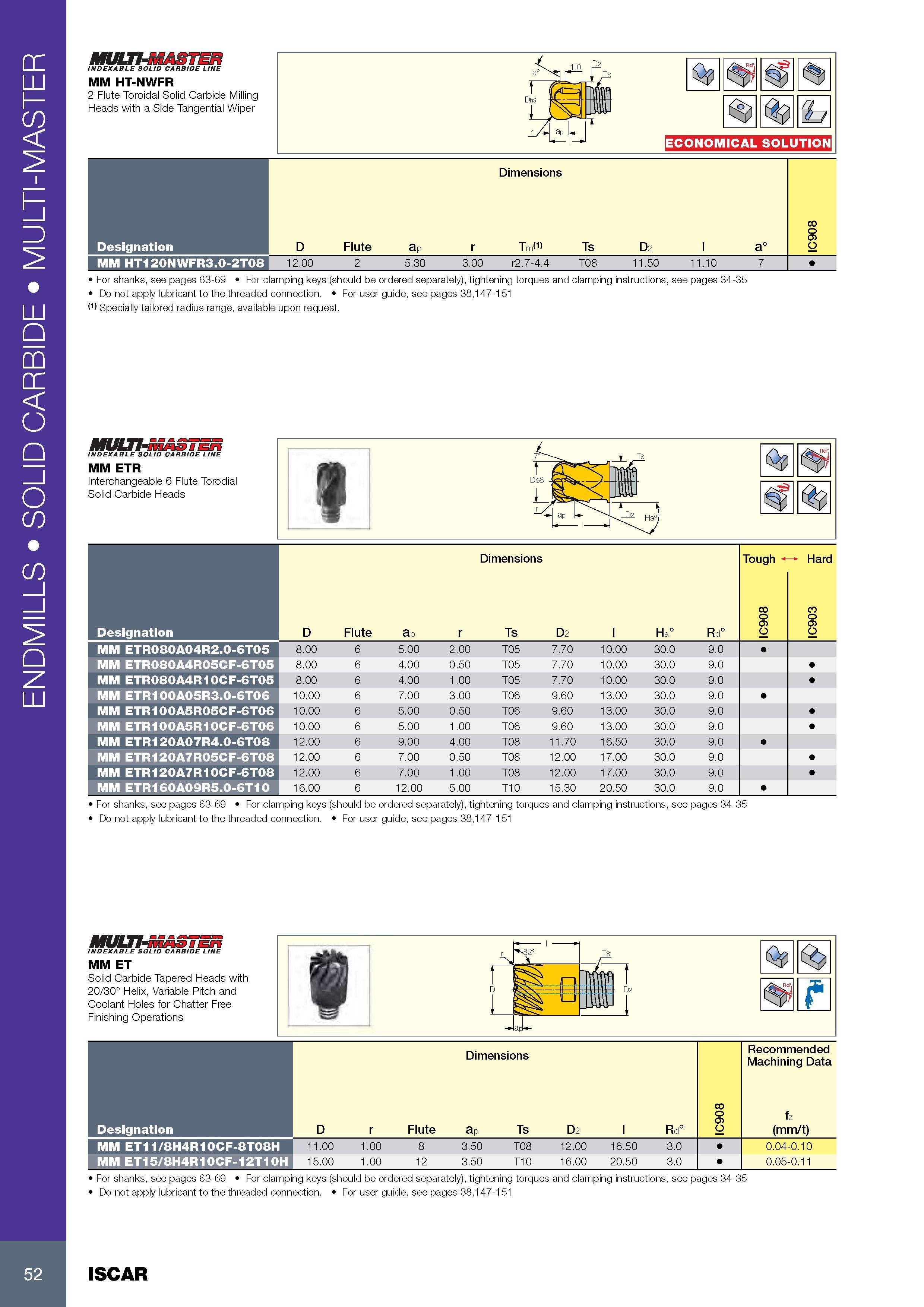

Сменные режущие твердосплавные головки Iscar с резьбовым разъемом для фрезерования Обозначение Основные размеры Комплектующие Изображение ENDMILLS SOLID CARBIDE MULTI-MASTER MULTI-MASTER INDEXABLE SOLID CARBIDE LINE MM HT-NWFR 2 Flute Toroidal Solid Carbide Milling Heads with a Side Tangential Wiper Размеры в мм Dimensions Обозначение Designation MM HT120NWFR3.0-2T08 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 Specially tailored radius range, available upon request. Размеры в мм Dimensions Tough Hard Обозначение Designation D Flute ap r Ts D 2 l Ha° Rd° o 05 O o 05 o MM ETR080A04R2.0-6T05 8.00 6 5.00 2.00 T05 7.70 10.00 30.0 9.0 MM ETR080A4R05CF-6T05 8.00 6 4.00 0.50 T05 7.70 10.00 30.0 9.0 MM ETR080A4R10CF-6T05 8.00 6 4.00 1.00 T05 7.70 10.00 30.0 9.0 MM ETR100A05R3.0-6T06 10.00 6 7.00 3.00 T06 9.60 13.00 30.0 9.0 MM ETR100A5R05CF-6T06 10.00 6 5.00 0.50 T06 9.60 13.00 30.0 9.0 MM ETR100A5R10CF-6T06 10.00 6 5.00 1.00 T06 9.60 13.00 30.0 9.0 MM ETR120A07R4.0-6T08 12.00 6 9.00 4.00 T08 11.70 16.50 30.0 9.0 MM ETR120A7R05CF-6T08 12.00 6 7.00 0.50 T08 12.00 17.00 30.0 9.0 MM ETR120A7R10CF-6T08 12.00 6 7.00 1.00 T08 12.00 17.00 30.0 9.0 MM ETR160A09R5.0-6T10 16.00 6 12.00 5.00 T10 15.30 20.50 30.0 9.0 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 MULH-i INDEXABLE SOLID CARBIDE LINE MM ET Solid Carbide Tapered Heads with 20/30° Helix, Variable Pitch and Coolant Holes for Chatter Free Finishing Operations -JapL- Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data Обозначение Designation D r Flute ap Ts D 2 l Rd° o 05 o Подача на зуб fz (mm/t) MM ET11/8H4R10CF-8T08H 11.00 1.00 8 3.50 T08 12.00 16.50 3.0 0.04-0.10 MM ET15/8H4R10CF-12T10H 15.00 1.00 12 3.50 T10 16.00 20.50 3.0 0.05-0.11 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 Do not apply lubricant to the threaded connection. For user guide, see pages 38,147-151 52 ISCAR
